6 | Electrical connection
80.06.070_iCombi Pro-iCombi Classic_IM_V01_en-GB
47 / 92
2.

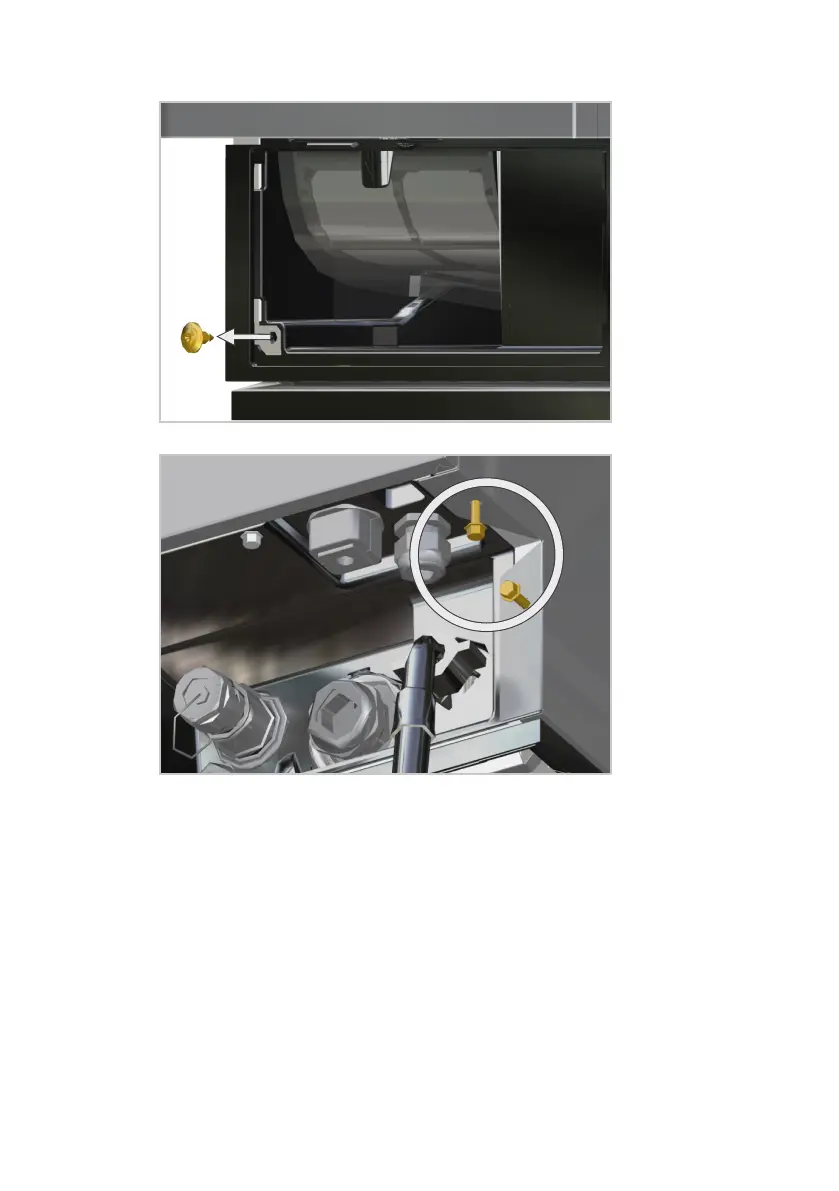

Unscrew the blind rivet nuts in the bottom left corner.
3.
Loosen two screws in the recess of the unit's side panel.
4.
Pull the left side panel downwards away from the unit.
5.
Remove the side panel.
>>
The electrical compartment is open.
