Rational SCC_WE User Manual

- 31 - V02 en, SCC_WE

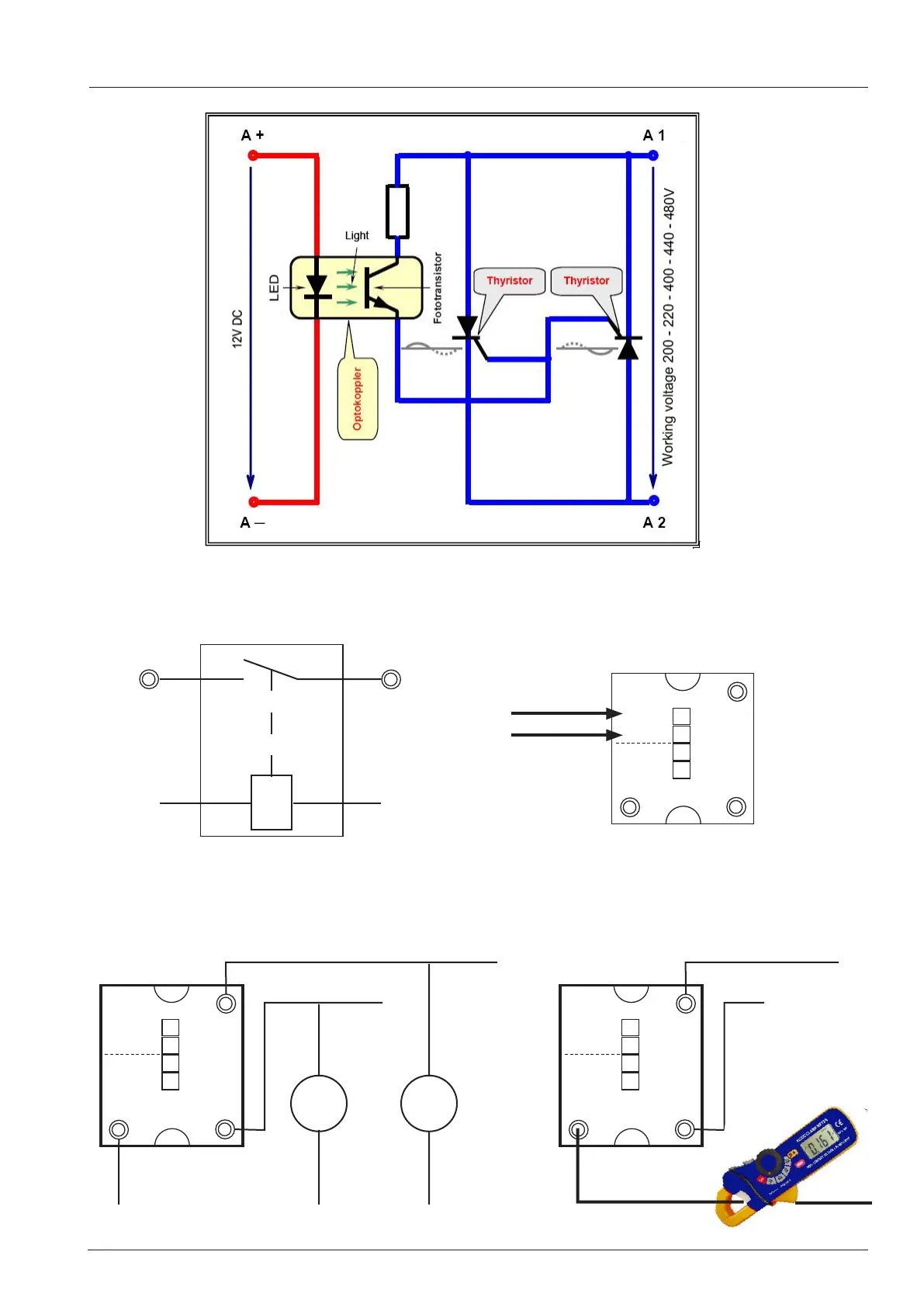

SolidStateRelay (SSR) internal design / Test
A1/B1
B2
A2
+
-
+
-
A
B
A1/B1 - A2 Steam / Dampf
A1/B1 - B2 Hot Air / Heißluft
12V DC
0V DC
A1/B1
A2
12V DC
0V DC
Contactor with 12V DC coil SSR with 12V DC control
SSR Test: Unit is switched ON and cabinet door is open
L1 - L2 = 400V
A1/B1
B2
A2
+
-
+
-
A
B
Volt Volt
400V = ok 400V = ok
A1/B1
B2
A2
+
-
+
-
A
B
0 Amp = ok
