Standard on some models

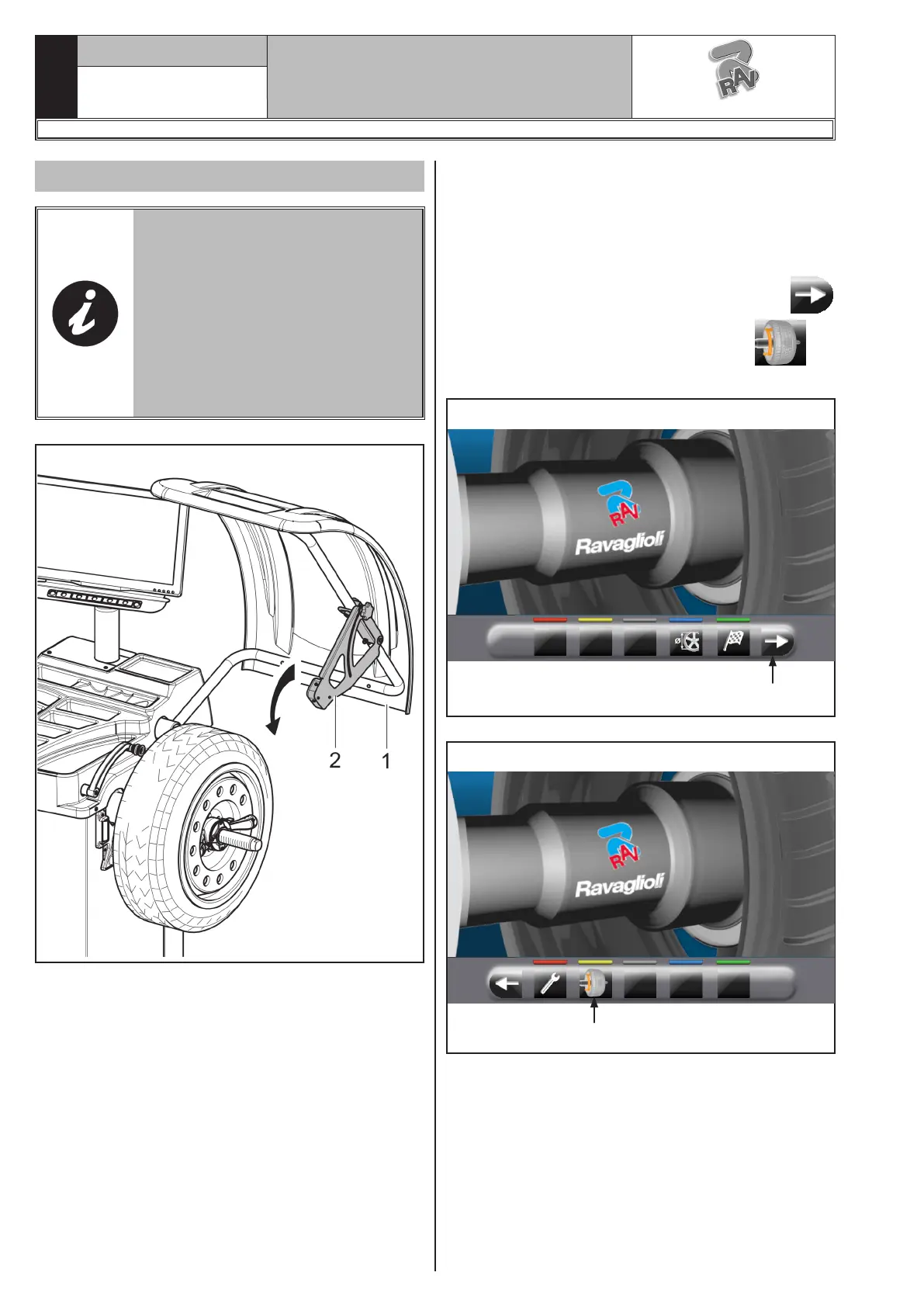

EACH TIME THAT THE WHEEL
PROTECTION GUARD (FIG. 49
REF. 1) IS CLOSED, THE AU-
TOMATIC WIDTH MEASURING
DEVICE (FIG. 49 REF. 2) (IF PRE-
SENT) MEASURES THE WIDTH
OF THE WHEEL FITTED ON THE
CHUCK. THE RELEVANT VALUE IS
STORED AUTOMATICALLY IN THE
PRE-ARRANGED FIELD OF THE
CHOSEN BALANCING PROGRAM.
Fig. 49
• Measuring procedure of electronic RUN-OUT with
the distance-diameter caliper arm.
The electronic RUN-OUT measuring device is useful
to check if the rim has some imperfections.
To access the screen to choose the rim control mode,
proceed as follows:
- from the "Home" page, press the button
(Fig. 50 re. 1) and then the button (see
Fig. 51 ref. 1).
Fig. 50
1
Fig. 51
1
