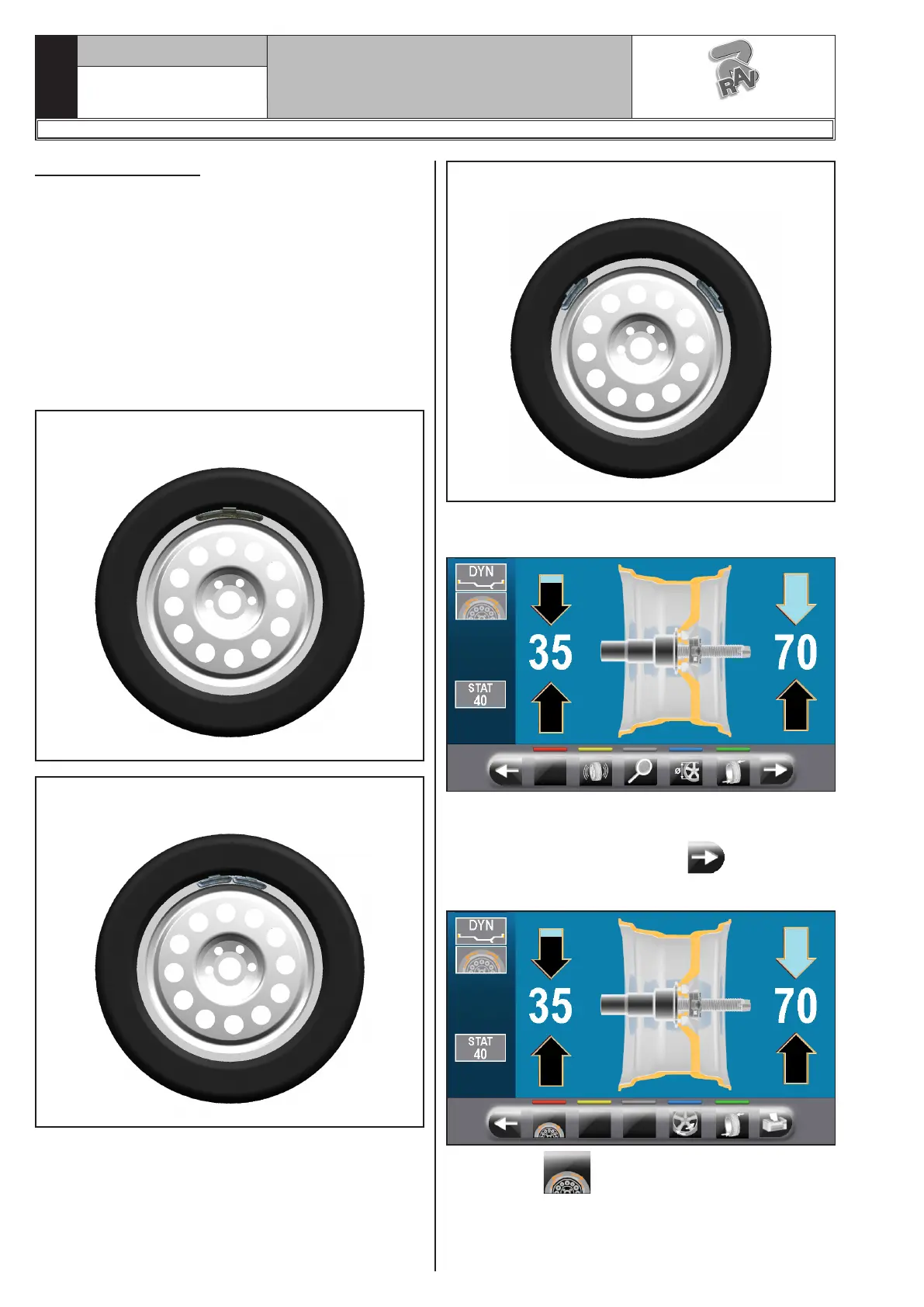

14.8.2 SPLIT mode
Split procedure proves useful when the dynamic unbal-
ance of a wheel is fairly high and the weight to be fitted
is not available, for instance a 100 g weight. It's possible
then to correct the unbalance dividing the amount of
weight into two weights of smaller size.
Split procedure eliminates errors by using “DYNAMIC”
program, for example by manually fitting two 50 g
weights close to one another, instead of only a 100 gr
one.
For example:
100 g WEIGHT TO BE FITTED TO
CORRECT UNBALANCE
TWO SMALLER WEIGHTS (50g)
FITTED MANUALLY
TWO SMALLER WEIGHTS (55g)
USING SPLIT PROCEDURE
Proceed to “DYNAMIC” unbalance measurement dis-
playing by performing a standard wheel spin.
Once detected the unbalance values, verify that the
machine displays the ability to use the "SPLIT" option
(Fig. 56 ref. 4a). Press button to shift to the
next screen page.
Press button to enter “SPLIT” function.
On the monitor screen will be displayed where you
must enter the value of the weights to be fitted.
