INSTRUCTION, USE AND
MAINTENANCE MANUAL
GB
Page 4 of 60

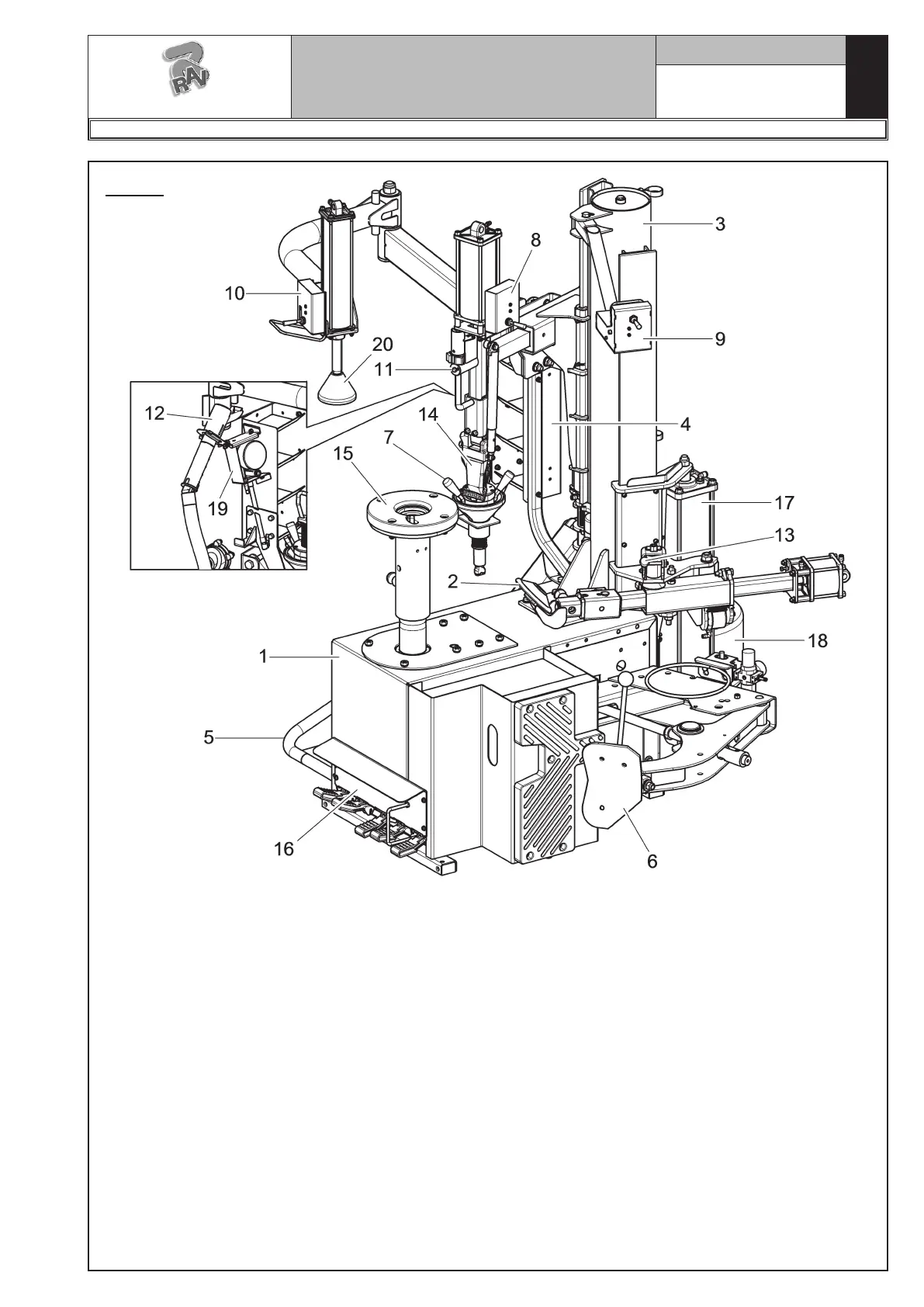

FIG. 1
RAVAGLIOLI S.p.A.
7300-M018-2_R
G8945.26 - G8945IT.26 - G8945V.26 - G8945ITV.26 - G8945V.26S - G8945ITV.26S - G8945D.26 - G8945ITD.26 - G8945D.26S - G8945ITD.26S
KEY
1 Machine base
2 Bead breaker roll
3 Column unit
4 Tool box
5 Lifting device (only for G8945V.26S - G8945ITV.26S - G8945D.26S - G8945ITD.26S models)
6 Lateral bead breaker
7 Locking device
8 Tool control unit
9 Bead breaking roll control unit
10 Plus device control unit (only for G8945V.26S - G8945ITV.26S - G8945D.26S - G8945ITD.26S
models)
11 Tool arm unlock push button
12 Tubeless inflation unit (only for G8945IT.26 - G8945ITV.26 - G8945ITV.26S - G8945ITD.26 -
G8945ITD.26S models)
13 Lever for bead breaker roll lateral opening release
14 Tyre mounting/demounting tool
15 Central locking mandrel
16 Control pedal
17 Bead breaker roll movement cylinder
18 Tank unit (only for G8945IT.26 - G8945ITV.26 - G8945ITV.26S - G8945ITD.26 - G8945ITD.26S
models)
19 Inflation unit with pressure gauge (only for G8945V.26S - G8945D.26S models)
20 Plus device (only for G8945V.26S - G8945ITV.26S - G8945D.26S - G8945ITD.26S models)
