Instruction manual
RAVAGLIOLI S.p.A.
RAVTD1760 WS – RAVTD1780 WS
Code M0197 - rev.1.0
(11/2010)
Page 22/52
RAVAGLIOLI S.p.A. - Via I° Maggio, n° 3 (Pontecchio Marconi)
40037 Sasso Marconi (Bologna - Italy)
Tel. 051/ 67.81.511 – Fax 051/ 84.64.67 E-mail: rav@ravaglioli.com
8.3 Selected Vehicle Technical Specification Displaying
When a vehicle is selected (see par. 8.2 on page 19), a screen showing the measurements and
tolerances supplied by the manufacturer is displayed.

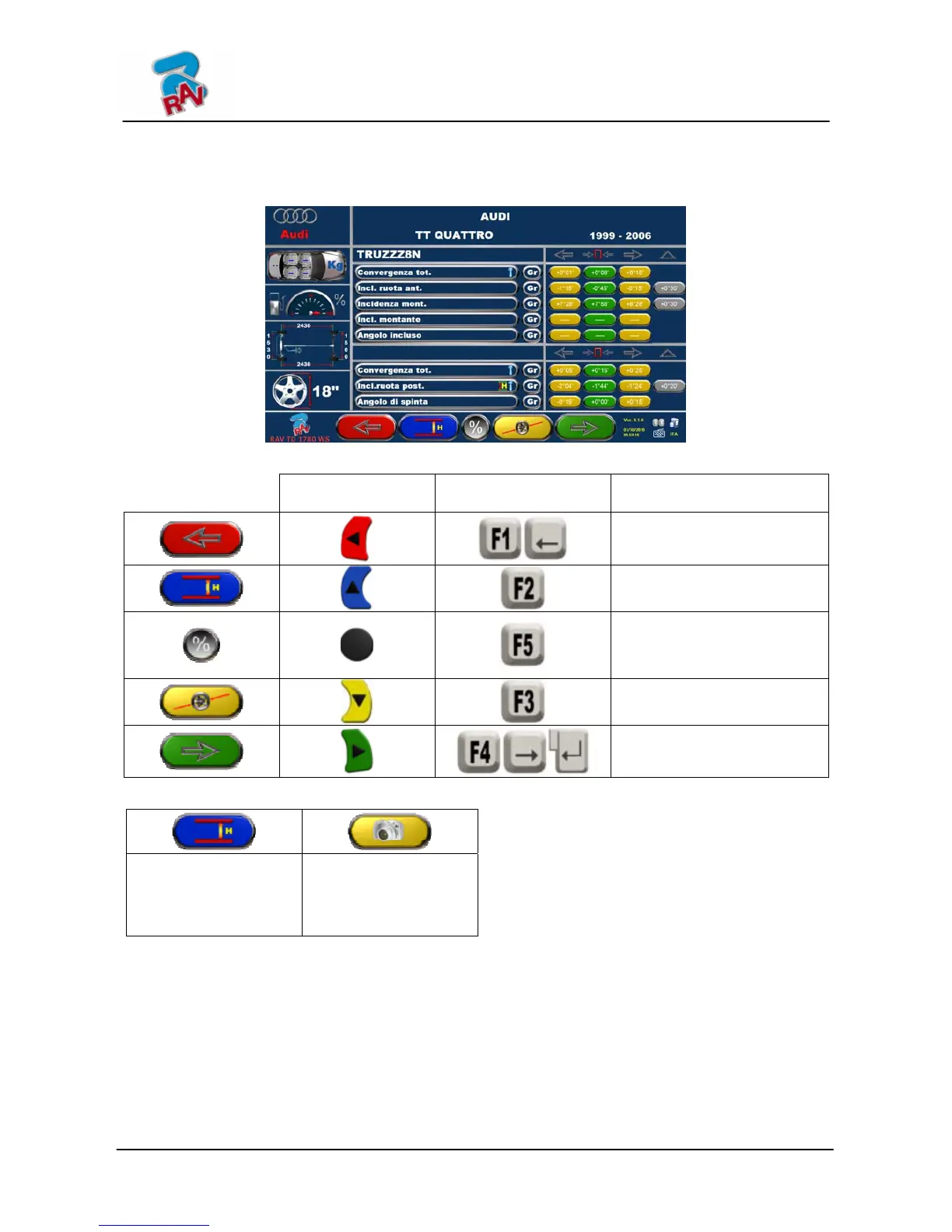

Figure 25
DETECTOR
KEYPAD
PC KEYBOARD DESCRIPTION
It goes back to vehicle
selection
(par. 8.2 on page 19)
See
(*) Key description
It displays vehicle technical
specifications next page, and
any graphic animation
See (*) Key description
It changes rim diameter
value
It goes to preliminary
operations
(par. 8.4 on page 23)
(*) Key description
Possibility to enter
chassis height or
kingpin data, as
envisaged by the
manufacturer
Press F5
To display any graphic
animation
