3.2 Safety Devices
Wheel aligner features a safety device (master switch) positioned on the rear of the machine,
see chap. 3 on page 5. Master switch cuts off machine power when set to “0”.
3.3 Measurement Range and Accuracy
Accuracy
Axle Measurement
Measurement
Range
Measurement
Total Range
Toe
± 2’ ± 2° ± 20° x 2
Partial toe
± 1’ ± 1° ± 20°
Set-back
± 2 ± 2° ± 5°
Camber
± 2’ ± 3° ± 10°
Caster
± 5’ ± 10° ± 18°
Front
Kingpin
± 5’ ± 10° ± 18°
Toe
± 2’ ± 2° ± 20° x 2
Partial toe
± 1’ ± 1° ± 20°
Set-back
± 2’ ± 2° ± 5°
Camber
± 2’ ± 3° ± 10°
Rear
Thrust angle
± 2’ ± 2° ± 5°

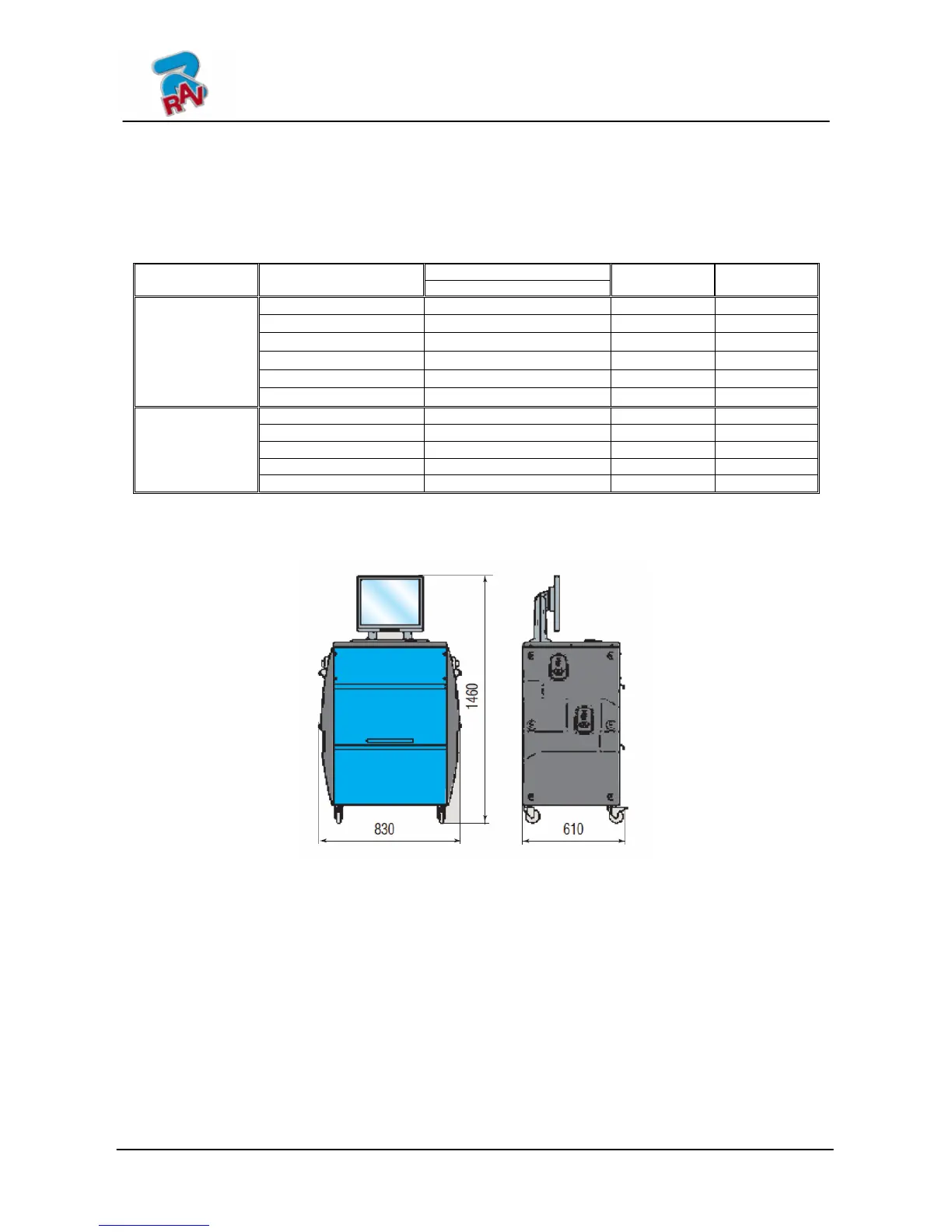

3.4 Overall Dimensions
Figure 1
3.5 Managing PC
Software is installed on managing PC (personal computer), positioned inside cabin.
Managing PC features:
• Processor 1.6GHz.
• RAM 1 Gb;
• Smart card reader
• 4 USB; 1 LAN Ethernet 10/100Mb;
• PS2 keyboard and mouse input; Windows XP Embedded Standard 2009™ operating system,
in English language
• 1366x768 Pixels HD Ready video output
• Hard Disk ≥ 160 Gb
