Instruction manual
RAVAGLIOLI S.p.A.
RAVTD1760 WS – RAVTD1780 WS
Code M0197 - rev.1.0
(11/2010)
Page 36/52
RAVAGLIOLI S.p.A. - Via I° Maggio, n° 3 (Pontecchio Marconi)
40037 Sasso Marconi (Bologna - Italy)
Tel. 051/ 67.81.511 – Fax 051/ 84.64.67 E-mail: rav@ravaglioli.com

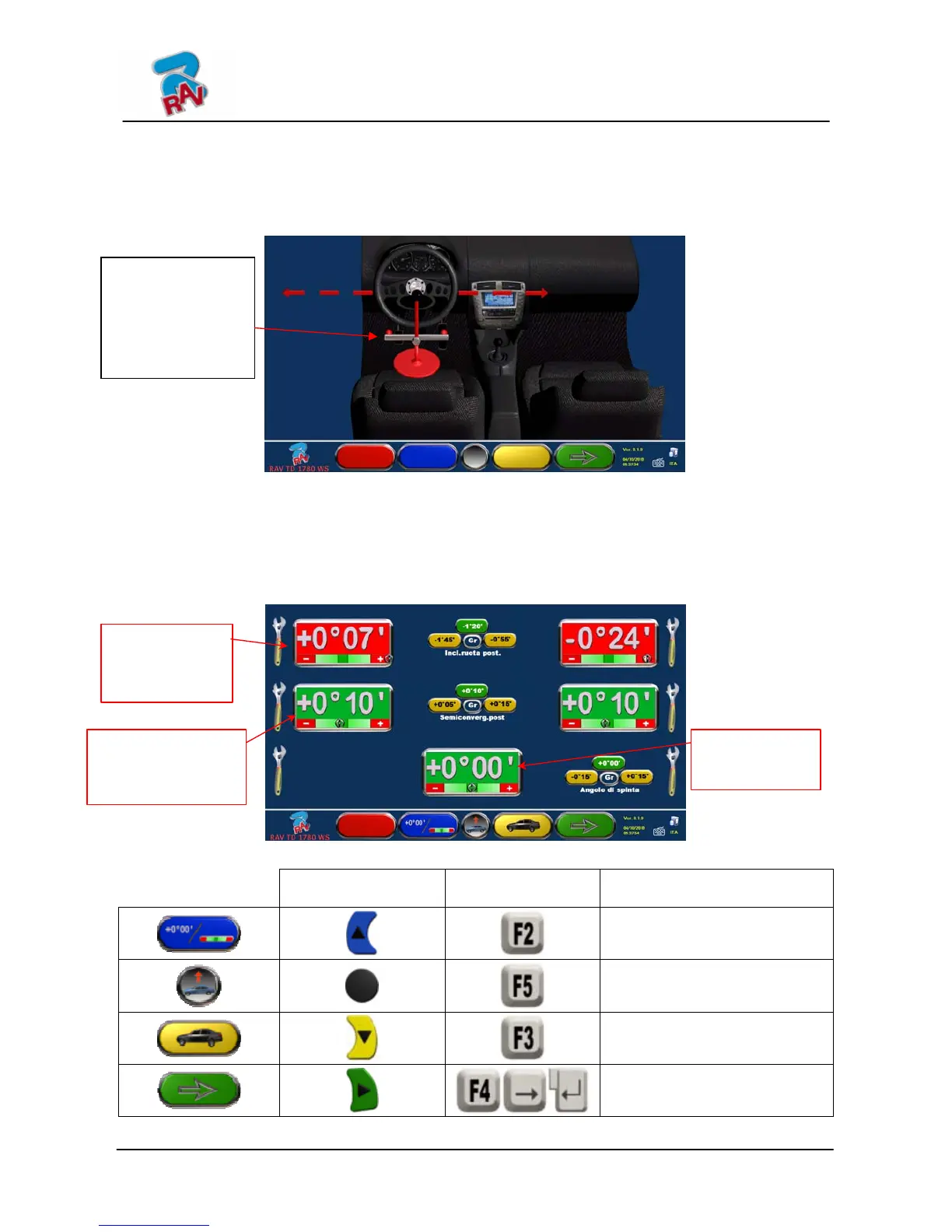

8.10 Adjustment Preliminary Operations
Select F4 from Figure 49 (see par. 8.9 on page 35) to carry out adjustment preliminary
operations. Follow the displayed instructions to carry out adjustment preliminary operations.
Press F4 to continue.
Figure 50
8.11 Rear Axle Adjustment
Rear axle adjustment procedure can be made by pressing F4 from Figure 50 after having
carried out adjustment preliminary operations (par. 8.10 on page 36).
Proceed to adjustment, where allowed, as follows:
Rear camber - Rear partial toe
Figure 51
DETECTOR
KEYPAD
PC KEYBOARD DESCRIPTION
It changes values displaying
layout
(large numbers/large cursors)
“Jack-Hold” procedure
(adjustment with raised
wheels)
It displays vehicle technical
specification page.
(par. 8.3 on page 22)
It continues to front axle
adjustment.
(par. 8.12 on page 37)
1. Place steering
wheel in straight
position.
2. Lock steering
wheel with the
special tool, and
continue.
Rear camber
measurements
Rear partial toe
measurements
Thrust angle
measurements
