Instruction manual
RAVAGLIOLI S.p.A.
RAVTD1760 WS – RAVTD1780 WS
Code M0197 - rev.1.0
(11/2010)
Page 10/52
RAVAGLIOLI S.p.A. - Via I° Maggio, n° 3 (Pontecchio Marconi)
40037 Sasso Marconi (Bologna - Italy)
Tel. 051/ 67.81.511 – Fax 051/ 84.64.67 E-mail: rav@ravaglioli.com

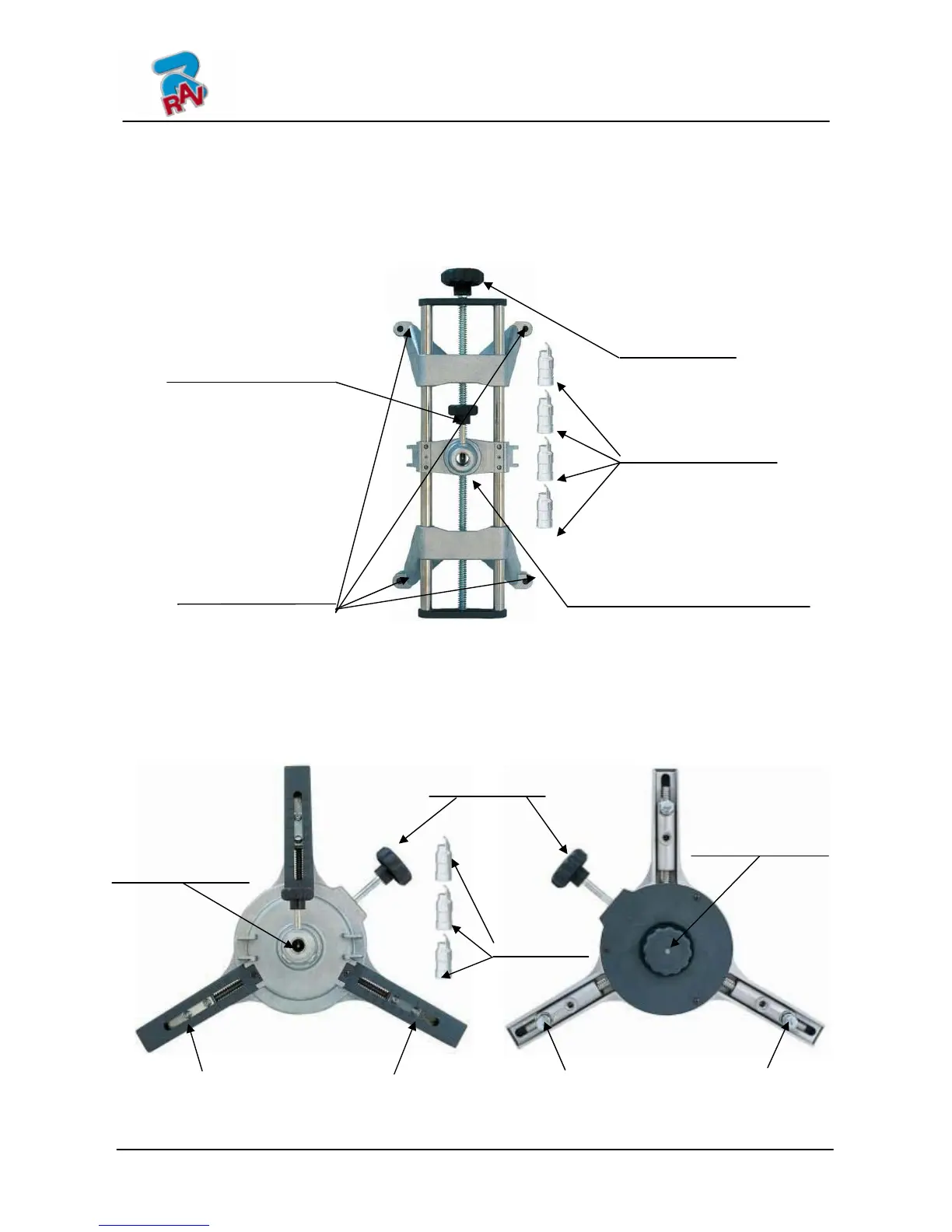

3.7 Clamps
Four types of clamps are available, depending on the different needs.
3.7.1 Clamps STDA33
Clamps STDA33 are of the screw-on self-centering type for 10" to 19” alloy rims, with
removable tabs.
Figure 6
3.7.2 Clamps STDA34
Clamps STDA34 are of the 3-resting point self-centering type for 10” to 19” rims, and feature
removable tabs (different types of ABS tabs are available for the different types of alloy rims).
Figure 7
KNOB
PRODS WITH
STEEL TAB
PINS FOR TAB
CONNECTION
DETECTOR PIN LOCKING KNOB
KNOB
PRODS
WITH STEEL
TAB
FLANGE FOR
DETECTOR COUPLING
FLANGE FOR
DETECTOR COUPLING
QUICK ADJUSTMENT
ON RIM DIAMETER
PINS FOR TAB CONNECTION
PINS FOR TAB CONNECTION
