Ravaglioli RAVTD1780 WS User Manual

Instruction manual
RAVAGLIOLI S.p.A.
RAVTD1760 WS – RAVTD1780 WS
Code M0197 - rev.1.0
(11/2010)
RAVAGLIOLI S.p.A. - Via I° Maggio, n° 3 (Pontecchio Marconi)
Page 11/52
40037 Sasso Marconi (Bologna - Italy)
Tel. 051/ 67.81.511 – Fax 051/ 84.64.67 E-mail: rav@ravaglioli.com

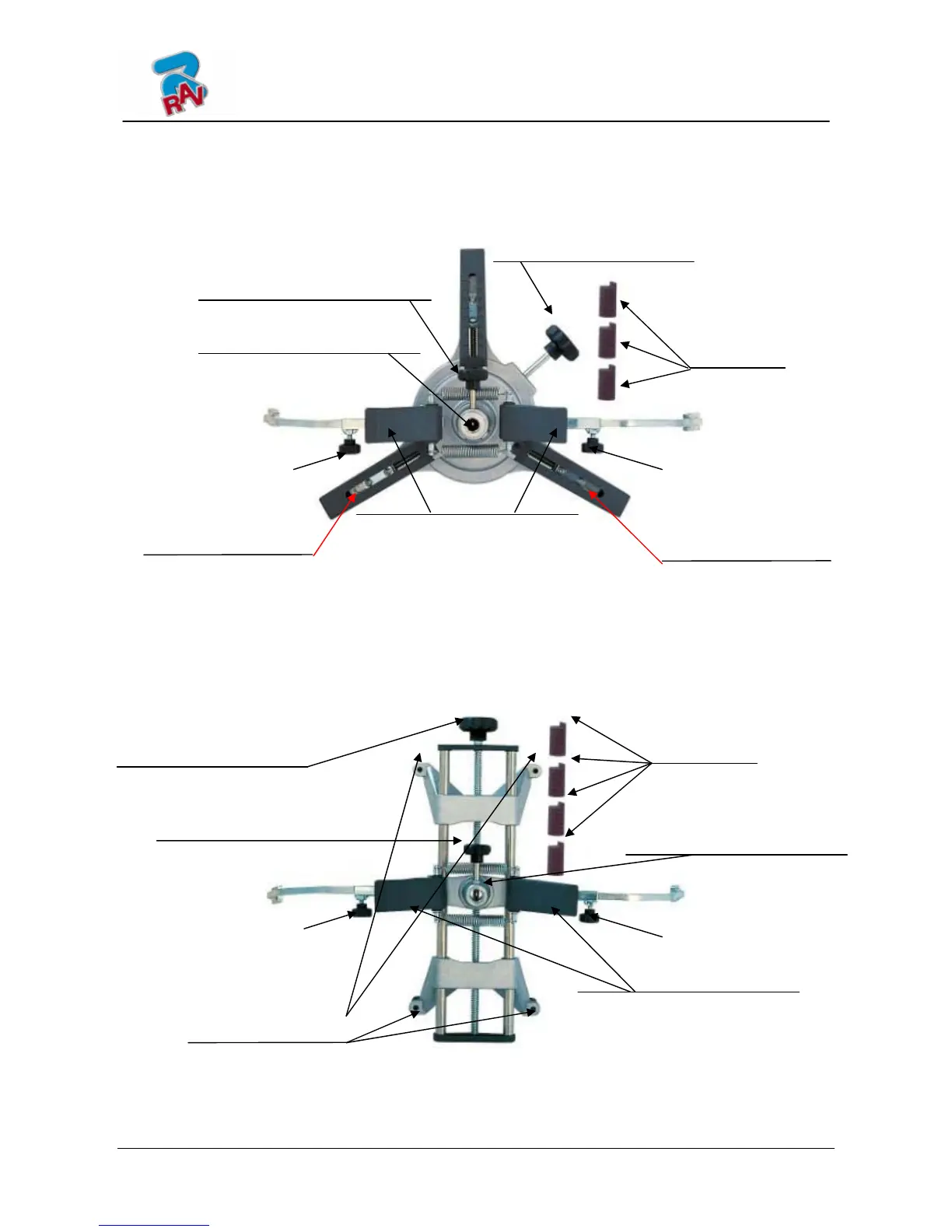

3.7.3 Clamps STDA35
Clamps STDA35 are of the 3-resting point self-centering type for 10” to 20” rims, with
manual approach and locking unit on tyre.
Figure 8
3.7.4 Clamps STDA46
Clamps STDA46 are of the 4-resting point type for 10” to 20” rims, and feature locking units.
Figure 9
HANDLES FOR CLAMP QUICK
COUPLING TO WHEEL
KNOBS FOR CLAMP COUPLING TO
WHEEL
KNOB FOR PRODS ADJUSTMENT
ON RIM
PRODS WITH
ABS TAB
HANDLES FOR ARM
LOCKING
HANDLES FOR ARM
LOCKING
FLANGE FOR DETECTOR
COUPLING
PRODS WITH
ABS TAB
HANDLES FOR ARM
LOCKING
HANDLES FOR ARM
LOCKING
KNOBS FOR CLAMP COUPLING
TO WHEEL
DETECTOR PIN LOCKING KNOB
PINS FOR TAB
CONNECTION
HANDLES FOR CLAMP QUICK
COUPLING TO WHEEL
FLANGE FOR
DETECTOR COUPLING
PINS FOR TAB
CONNECTION
PINS FOR TAB
CONNECTION
