Instruction manual
RAVAGLIOLI S.p.A.
RAVTD1760 WS – RAVTD1780 WS
Code M0197 - rev.1.0
(11/2010)
RAVAGLIOLI S.p.A. - Via I° Maggio, n° 3 (Pontecchio Marconi)
Page 5/52
40037 Sasso Marconi (Bologna - Italy)
Tel. 051/ 67.81.511 – Fax 051/ 84.64.67 E-mail: rav@ravaglioli.com

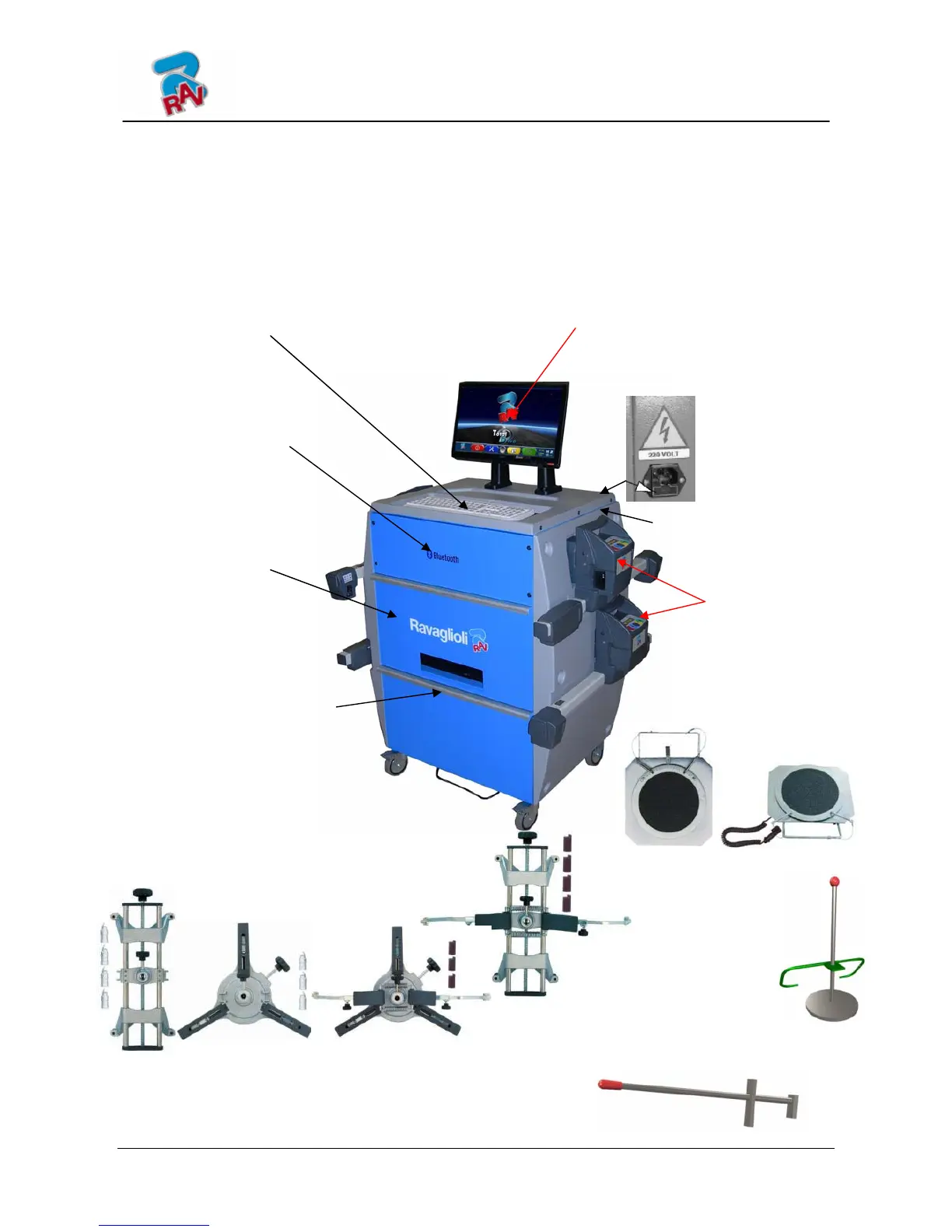

3 MACHINE COMPOSITION
3.1 Models RAVTD1780WS RAVTD1760WS Composition
MEASUREMENT CABIN
A measurement cabin is used for all
measurement operations. This cabin also
features the electronic components necessary
for the processing
and management of the
readings made by detectors .
Power supply: 220 / 240 Vac single phase
50/60Hz
PC KEYBOARD
Machine features a 102-key, PC-type command
keyboard. Function keys allow using almost all
machine functions. Vehicle general data,
customer data, and vehicle database
customisation can also be entered via PC
keyboard.
MONITOR
All models feature a 19'', 16/9, high-
definition, colour monitor. Monitor use and
maintenance instructions can be found on
the manual coming with the monitor itself.
Comply with these instructions.
PRINTER CENTRAL
COMPARTMENT
Results are printed with a inkjet colour
printer for A4 size sheets. Printer use
and maintenance instructions can be
found on the manual coming with the
printer itself. Comply with these
instructions.
MANAGING PC UPPER
COMPARTMENT
For PC characteristics
see par. 3.5 page 7
DETECTORS
POSITIONED ONTO
RECHARGE SUPPORTS
See par. 3.6 page 8
MACHINE MASTER SWITCH
CLAMPS
See par. 3.7 page 11
STEERING LOCK
is a tool used to
keep vehicle steering
in a fixed position. It is used
before the adjustment
procedure, as shown by the
instructions
displayed during
programme.
PEDAL DEPRESSOR
is a tool used to lock brake
pedal during measurement preliminary operations. It
has to be used as shown in the instructions displayed
during programme.
ROTATING PLATES
See par. 3.8 page 13
POWER SOCKET
SHOCK HAZARD
