Instruction manual
RAVAGLIOLI S.p.A.
RAVTD1760 WS – RAVTD1780 WS
Code M0197 - rev.1.0
(11/2010)
Page 34/52
RAVAGLIOLI S.p.A. - Via I° Maggio, n° 3 (Pontecchio Marconi)
40037 Sasso Marconi (Bologna - Italy)
Tel. 051/ 67.81.511 – Fax 051/ 84.64.67 E-mail: rav@ravaglioli.com
8.8 Steering Procedure
Once detectors are aligned and levelled (see par. 8.7 on page 33), the steering procedure can
be carried out in order to define:
Caster
Kingpin
Included angle

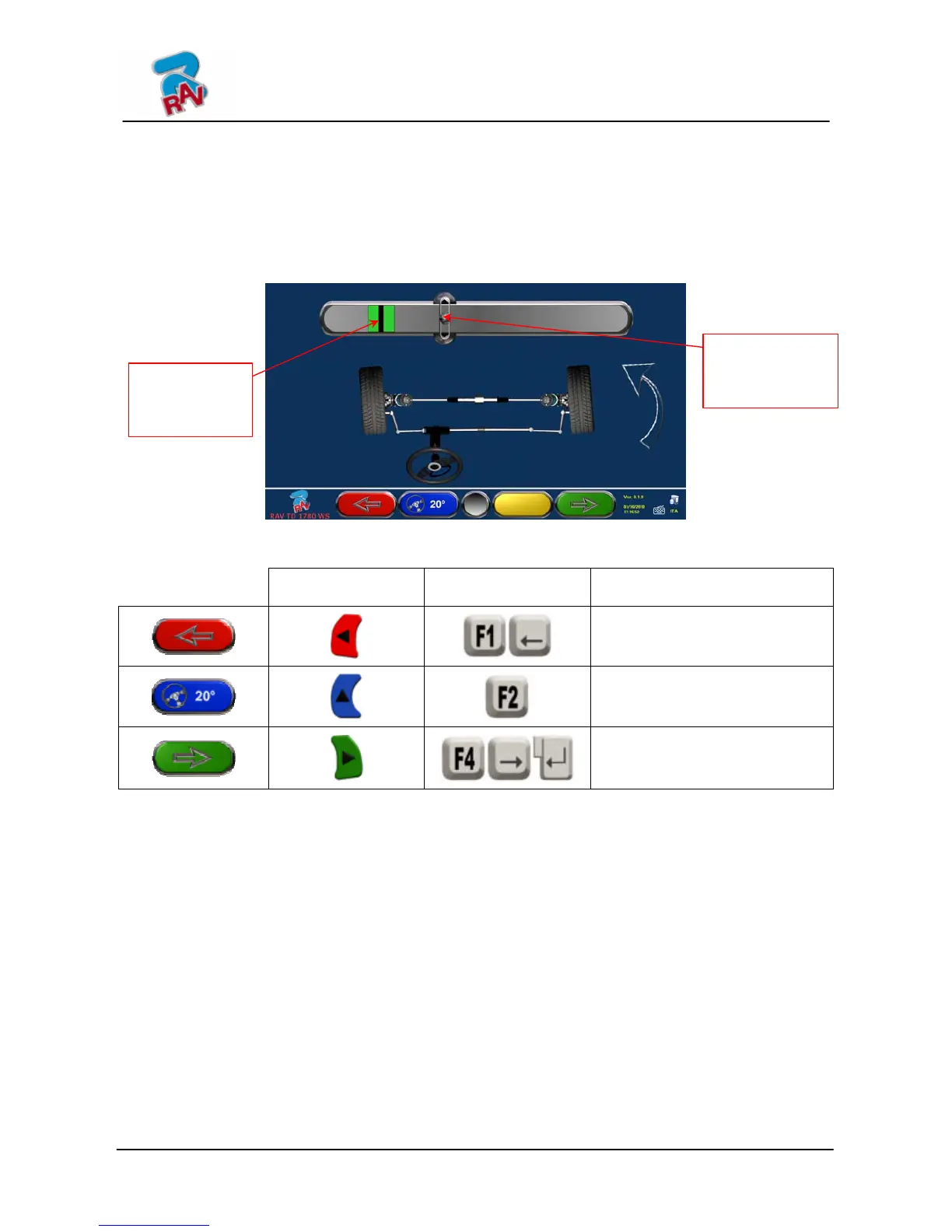

Figure 46
DETECTOR
KEYPAD
PC KEYBOARD DESCRIPTION
Repeat alignment and levelling
procedure
(par. 8.7 on page 33)
Press this key to select the
type of steering to be made. (*)
It displays vehicle diagnosis
page
(par. 8.9 on page 35)
(*) Type of steering to be made:
Steering at 20°
ACK steering (at 20° with Toe-out on turn)
Steering at 10°
Max. steering with rotating plates with ENCODER (optional)
Steering procedure can also be skipped: the values of the above-specified data measurements
will not be available. To skip the procedure, press F4 to directly display vehicle diagnosis
page.
Should the procedure not be carried out at this stage but only at the end of adjustments, you
can select the corresponding option from the menu.
Steering level
indicator
Steering
target point
