8.4 Preliminary Operations
8.4.1 Vehicle Check Preliminary Operations
Before starting the check of vehicle geometrical alignment, the following checks shall be
carried out:
Check and, if necessary, eliminate any clearance
on suspensions and on steering linkage
Check and, if necessary, eliminate any hard spot or yielding of suspension spring parts.
Adjust tyre pressure to the values specified by the manufacturer.
Position and distribute any load envisaged by the manufacturer.
8.4.2 Run-Out Preparation
After having displayed vehicle technical specification page (see par. 8.3 on page 22), you can
prepare vehicle for Run-Out procedure. Proceed as follows:
- Fit clamps and detectors onto wheels
- Raise vehicle from lift platforms (if an Run-Out with raised wheel is carried out, see par.
8.5.1)
- Lock rotating plates

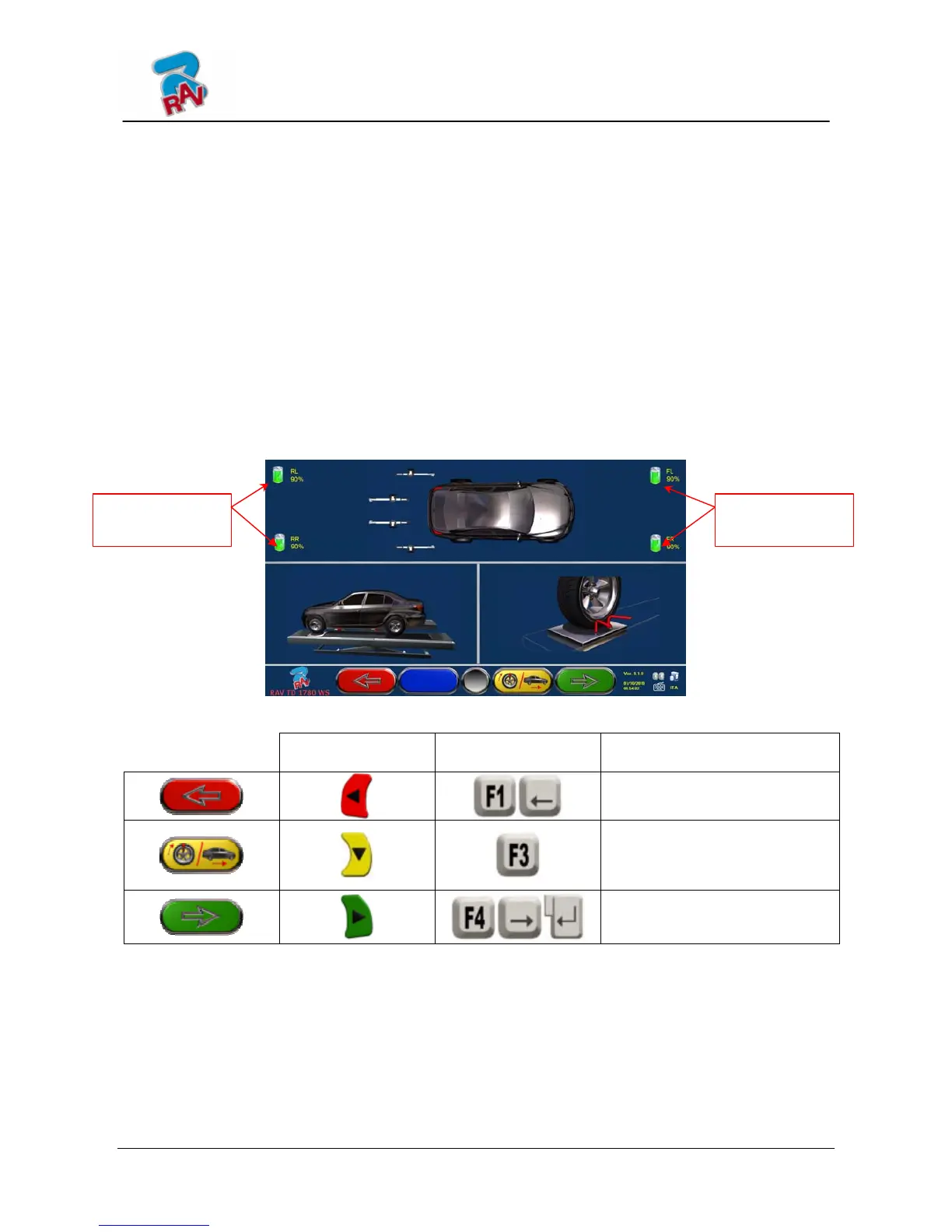

Figure 26
DETECTOR
KEYPAD
PC KEYBOARD DESCRIPTION
It goes back to previous page
Raised wheel Run-Out selection
(par. 8.5.1 on page 24)
or thrust Run-Out
(par. 8.5.2 on page 27)
It continues to next page
(Run-Out)
(par. 8.5 on page 24)
Note: during this phase, the images showing the 4 sensor batteries with the residual charge
% are displayed.
front sensor
battery charge %
rear sensor
battery charge %
