Instruction manual
RAVAGLIOLI S.p.A.
RAVTD1760 WS – RAVTD1780 WS
Code M0197 - rev.1.0
(11/2010)
Page 6/52
RAVAGLIOLI S.p.A. - Via I° Maggio, n° 3 (Pontecchio Marconi)
40037 Sasso Marconi (Bologna - Italy)
Tel. 051/ 67.81.511 – Fax 051/ 84.64.67 E-mail: rav@ravaglioli.com
3.2 Safety Devices
Wheel aligner features a safety device (master switch) positioned on the rear of the machine,
see chap. 3 on page 5. Master switch cuts off machine power when set to “0”.
3.3 Measurement Range and Accuracy
Accuracy
Axle Measurement
Measurement
Range
Measurement
Total Range
Toe
± 2’ ± ± 20° x 2
Partial toe
± 1’ ± ± 20°
Set-back
± 2 ± ±
Camber
± 2’ ± ± 10°
Caster
± 5’ ± 10° ± 18°
Front
Kingpin
± 5’ ± 10° ± 18°
Toe
± 2’ ± ± 20° x 2
Partial toe
± 1’ ± ± 20°
Set-back
± 2’ ± ±
Camber
± 2’ ± ± 10°
Rear
Thrust angle
± 2’ ± ±

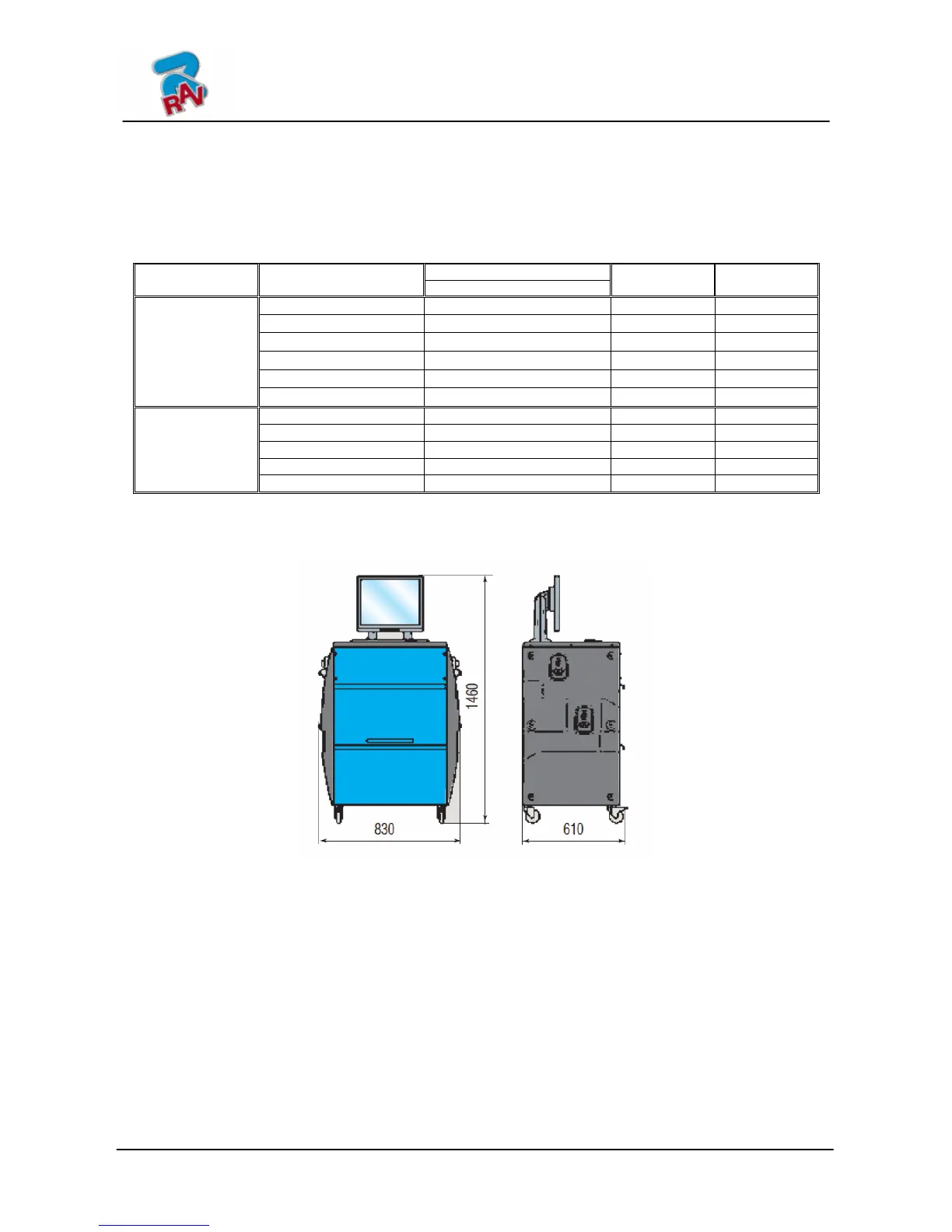

3.4 Overall Dimensions
Figure 1
3.5 Managing PC
Software is installed on managing PC (personal computer), positioned inside cabin.
Managing PC features:
Processor 1.6GHz.
RAM 1 Gb;
Smart card reader
4 USB; 1 LAN Ethernet 10/100Mb;
PS2 keyboard and mouse input; Windows XP Embedded Standard 2009™ operating system,
in English language
1366x768 Pixels HD Ready video output
Hard Disk 160 Gb
RAVTD1780WS – RAVTD1760WS
