Instruction manual
RAVAGLIOLI S.p.A.
RAVTD1760 WS – RAVTD1780 WS
Code M0197 - rev.1.0
(11/2010)
RAVAGLIOLI S.p.A. - Via I° Maggio, n° 3 (Pontecchio Marconi)
Page 31/52
40037 Sasso Marconi (Bologna - Italy)
Tel. 051/ 67.81.511 – Fax 051/ 84.64.67 E-mail: rav@ravaglioli.com

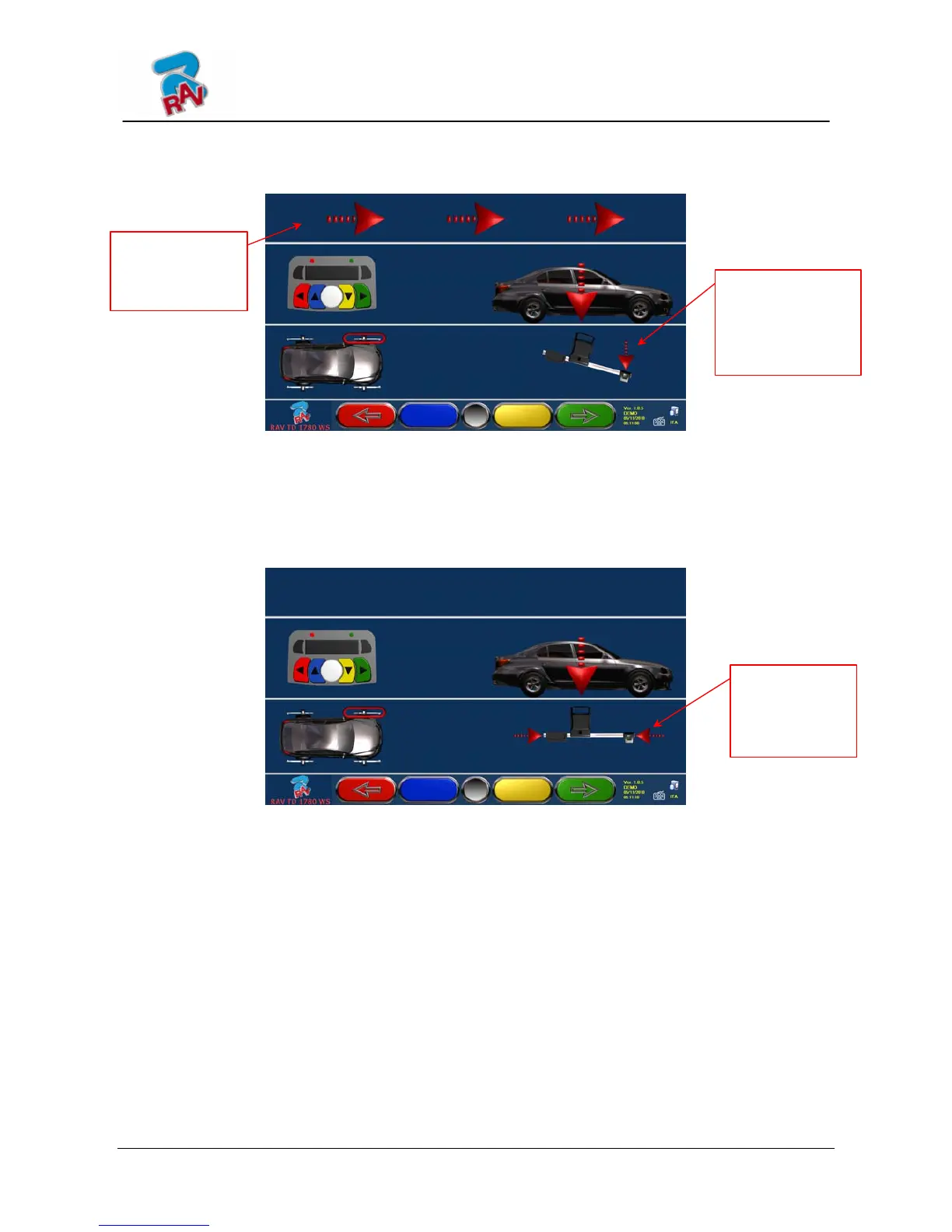

Move vehicle forward, very slowly, until reference sensor reaches again almost the start
position. When finished, press central key to confirm.
Figure 42
Position reference sensor horizontally - clearly levelled - and, when finished, press central
key to confirm.
“STOP” is displayed for approx. three seconds, which is enough for the programme to acquire
measurement readings.
Figure 43
The thrust Run-Out procedure with “inclinometer control” has been carried out.
Should you be willing to repeat the operation once the programme has already entered a
following phase, you can go back to this page by pressing F1, and repeat the above
procedure. Once the Run-Out procedure has been completed, programme will automatically
go to the next phase.
Vehicle thrust
direction
(forward)
Reference
sensor
horizontal
position
Reference
sensor reaches
the position
almost as
"start"
