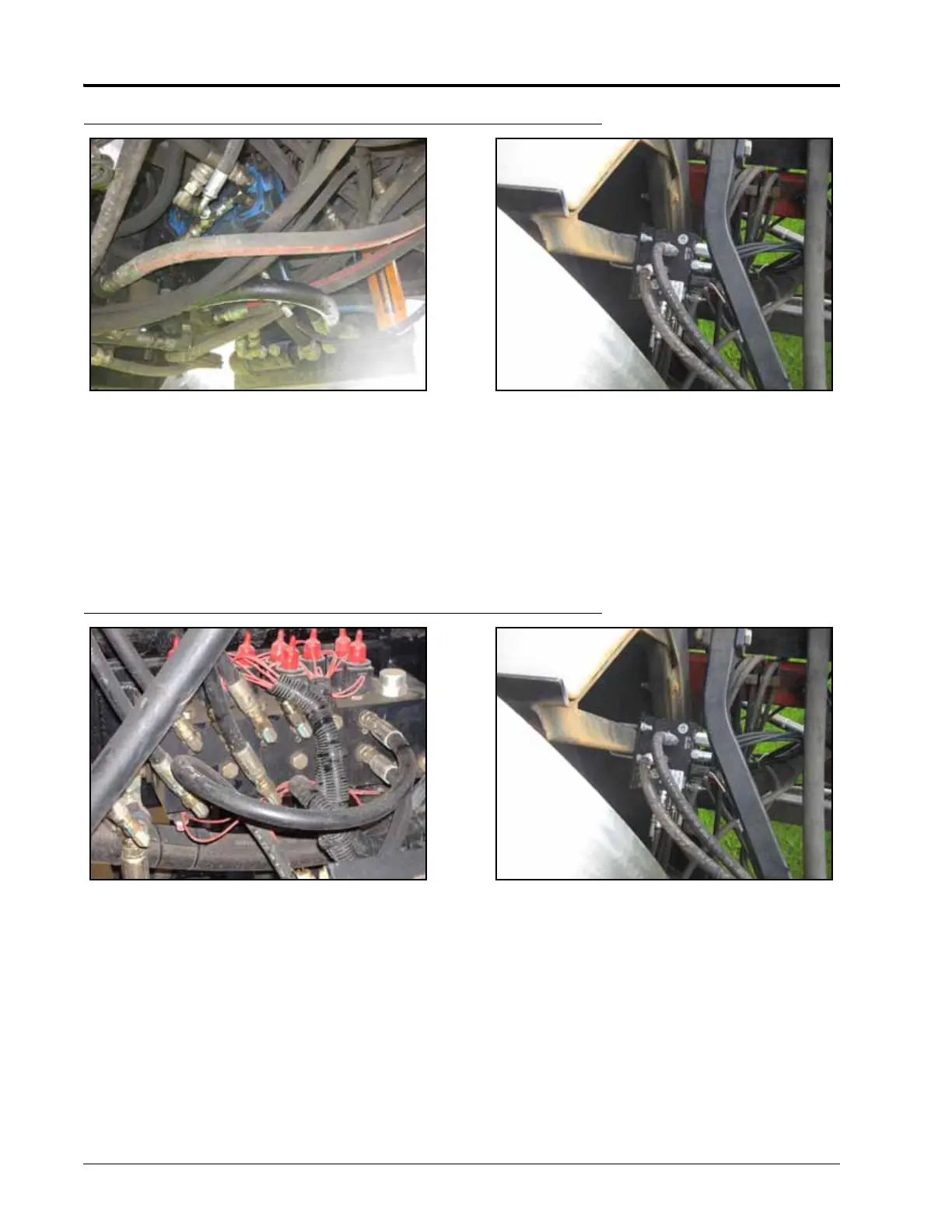

FIGURE 9. Pressure Hoses Installed on the Machine
1. Locate the machine’s hydraulic pump behind the engine, near the rear of the hydro stat pump.
2. Disconnect the machine’s 1/2” hydraulic hose from the left side of the gear pump.
3. Install the 3/4” JIC M/M/F tee adapter fitting (P/N 333-0012-039) on the machine’s gear pump.
4. Install the machine’s hydraulic hose on the opposite end of the installed tee fitting.
5. Install the 90° end of the supplied hydraulic hose (P/N 214-1000-422) to the 90° end of the installed tee
fitting.
6. Connect the other end of the installed hydraulic hose to Port P on the AutoBoom valve.
FIGURE 10. Tank Hoses Installed on the Machine
7. Locate the tank hose on the machine’s hydraulic valve.
8. Disconnect the machine’s tank hose from the hydraulic valve.
9. Install the 1-1/16” JIC M/M/F swivel run tee adapter fitting (P/N 333-0012-109) to the open tank port of the
machine’s hydraulic valve.
10. Install the machine’s tank hose on the opposite end of the installed tee fitting.
11. Install the 1-1/16” end of the supplied hydraulic hose (P/N 214-1000-320) on the 90° end of the installed tee
fitting.
12. Connect the other end of the installed hydraulic hose to Port T on the AutoBoom valve.
