PowerGlide Plus
Install the Gauge Wheels
Move the Wet Boom
To allow the gauge wheels to be installed, the machine’s wet boom must be moved. Complete the following
steps to move the machine’s wet boom.

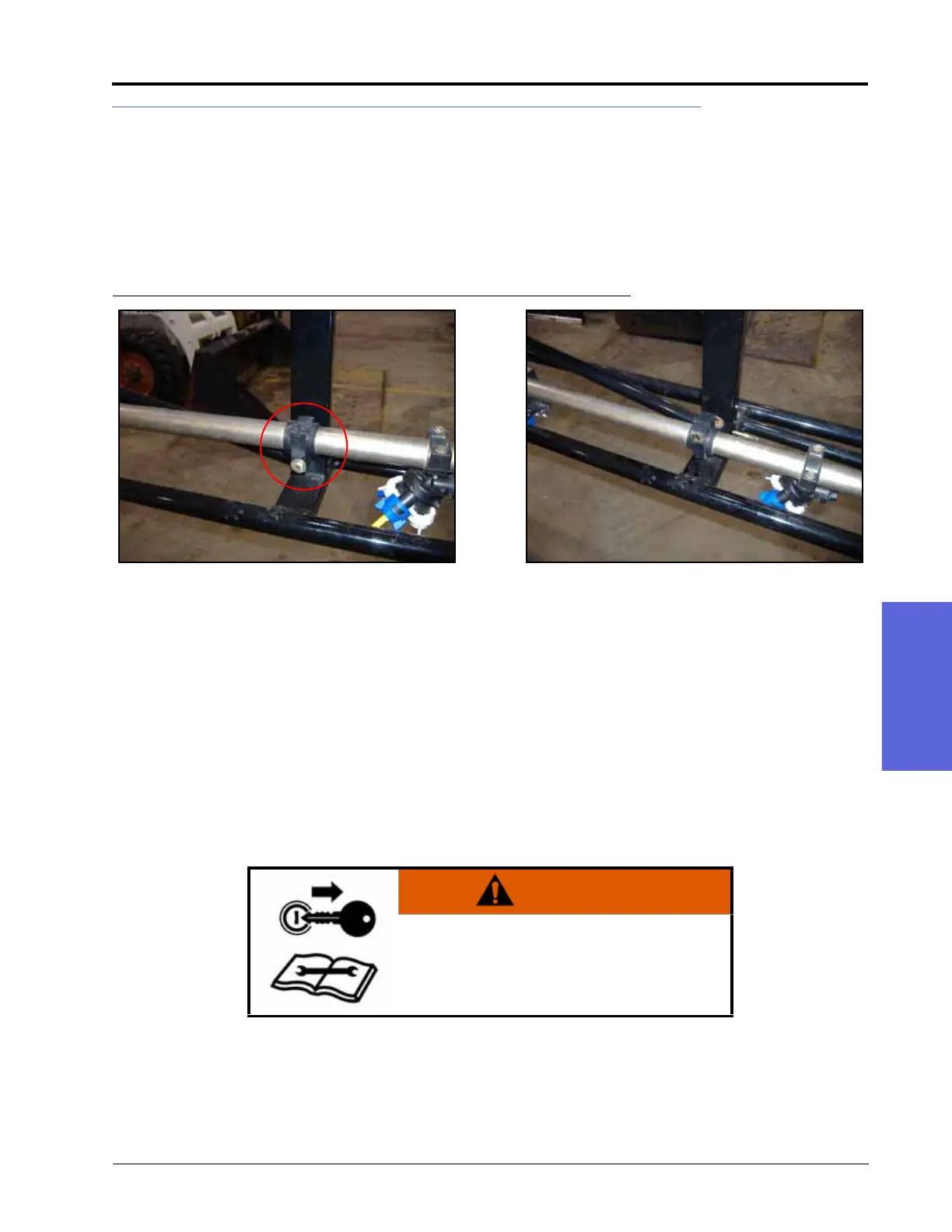

FIGURE 16. Machine’s Wet Boom
1. Unbolt the wet boom brackets from the boom.
2. Rotate the clamps on the wet booms 1/2 turn so that the wet booms are lowered to the boom bracket.
3. Reinstall the bolt on the wet boom clamps.
4. Rotate the spray nozzles toward the rear of the machine to prevent spraying the wheels.
Gauge Wheel Mounting Locations
Wheel mounting locations may be influenced by the boom configuration. Determine the appropriate location
for mounting the wheels on the boom, ensuring the wheels will not interfere with or be damaged while folding
or unfolding the booms.
Mount the Gauge Wheels
Note:
The appearance of the wheel axles may vary.
WARNING
The machine must remain stationary and
switched off, with the booms unfolded and
supported, during installation or maintenance.
To Next Page
