Raven AutoBoom Willmar Eagle 8500 - Adjust the Boom Tilt Stops

5
Manual No. 016-0230-014 57
UltraGlide
8. Connect the machine’s left raise hose to Port LC of the AutoBoom valve.

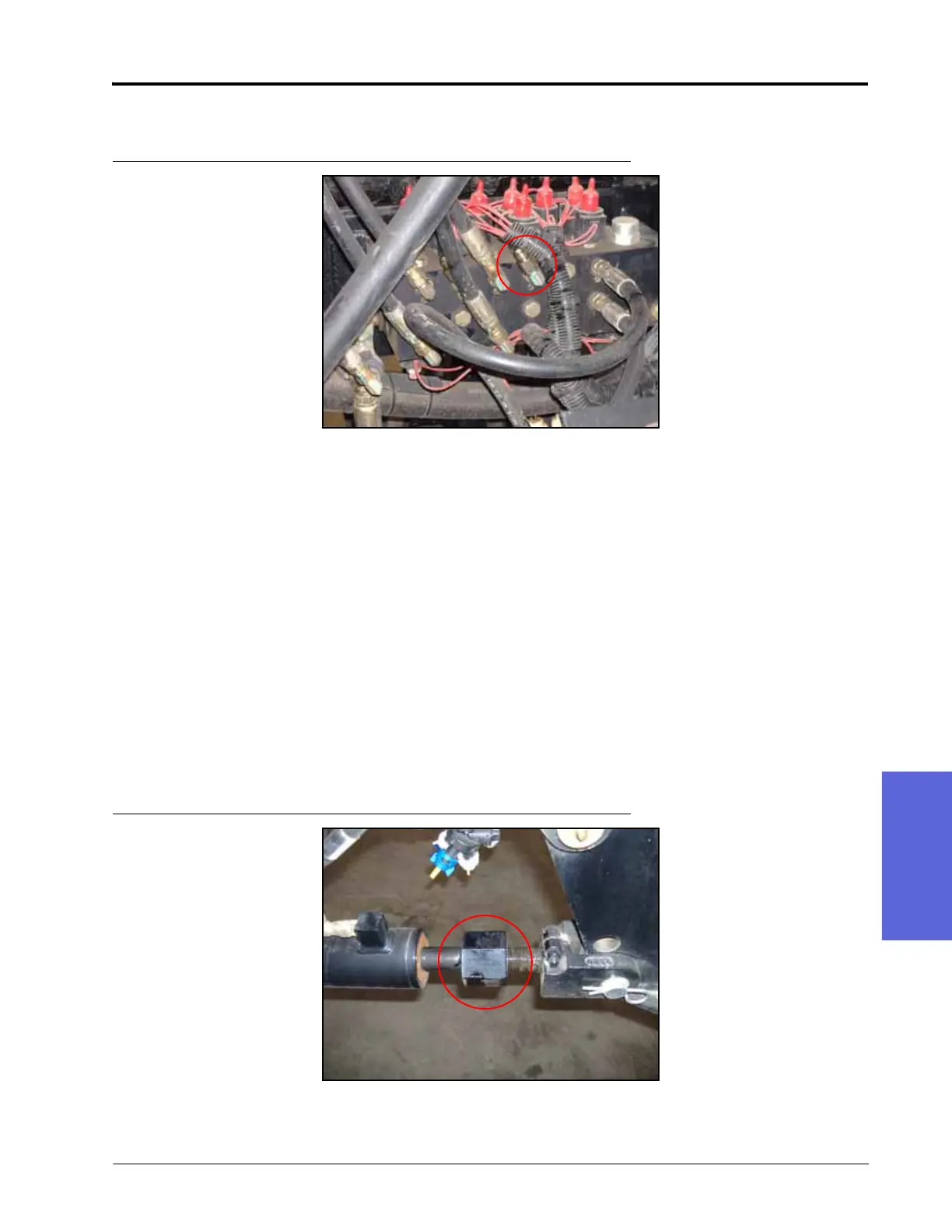

FIGURE 6. Orifice Fitting Installed on Machine’s Hydraulic Valve
9. Install the orifice fitting removed from the left tilt cylinder in step 2 into the left raise port of the machine’s
hydraulic valve.
10. Install one end of the supplied hydraulic hose (P/N 214-1000-243) on the left raise port of the machine’s
hydraulic valve.
11. Connect the other end of the installed hydraulic hose to Port LV of the AutoBoom valve.
12. Disconnect the machine’s right raise hose from the machine’s hydraulic valve.
13. Connect the machine’s right raise hose to Port RC of the AutoBoom valve.
14. Install the orifice fitting removed from the right tilt cylinder in step 5 into the right raise port of the machine’s
hydraulic valve.
15. Install one end of the supplied hydraulic hose (P/N 214-1000-243) on the right raise port of the machine’s
hydraulic valve.
16. Connect the other end of the installed hydraulic hose to Port RV of the AutoBoom valve.
Adjust the Boom Tilt Stops
FIGURE 7.
