Raven AutoBoom Willmar Eagle 8500 - Install the Left and Right Cylinder Hoses

4
Manual No. 016-0230-014 35
PowerGlide Plus
Install the Left and Right Cylinder Hoses

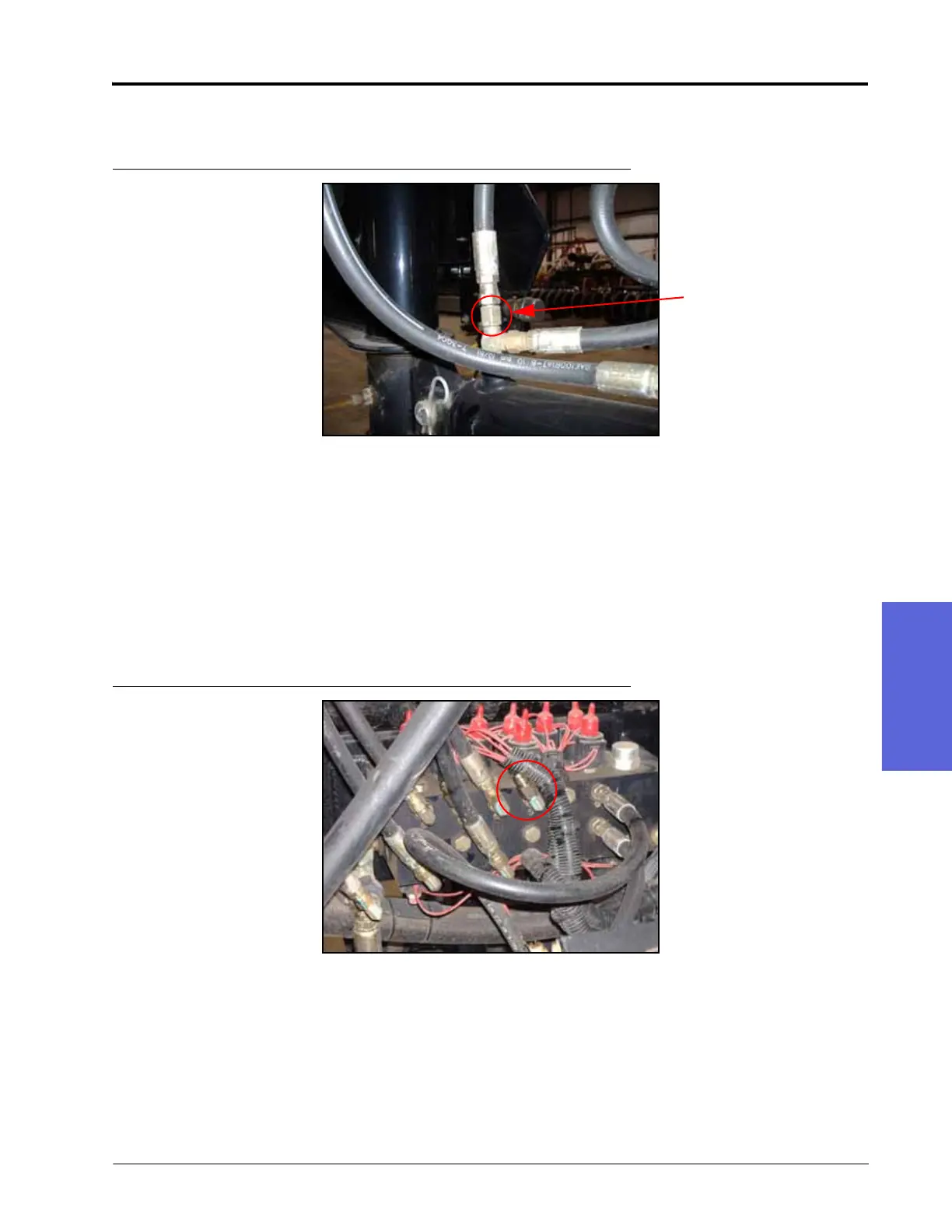

FIGURE 11. Machine’s Cylinder Raise Hose
1. Disconnect the machine’s raise hose from the base-end of the left tilt cylinder.
2. Remove the orifice fitting from the open cylinder port.
3. Reinstall the machine’s raise hose on the base-end of the left tilt cylinder.
4. Disconnect the machine’s raise hose from the base-end of the right tilt cylinder.
5. Remove the orifice fitting from the open cylinder port.
6. Reinstall the machine’s raise hose on the base-end of the right tilt cylinder.
7. Disconnect the machine’s left raise hose from the machine’s hydraulic valve.
8. Connect the machine’s left raise hose to Port LC of the AutoBoom valve.
FIGURE 12. Orifice Fitting Installed on Machine’s Hydraulic Valve
9. Install the orifice fitting removed from the left tilt cylinder in step 2 into the left raise port of the machine’s
hydraulic valve.
10. Install one end of the supplied hydraulic hose (P/N 214-1000-243) on the left raise port of the machine’s
hydraulic valve.
11. Connect the other end of the installed hydraulic hose to Port LV of the AutoBoom valve.
12. Disconnect the machine’s right raise hose from the machine’s hydraulic valve.
13. Connect the machine’s right raise hose to Port RC of the AutoBoom valve.
Machine’s Orifice
Fitting (Remove)
