Raven SCS-330 User Manual

8

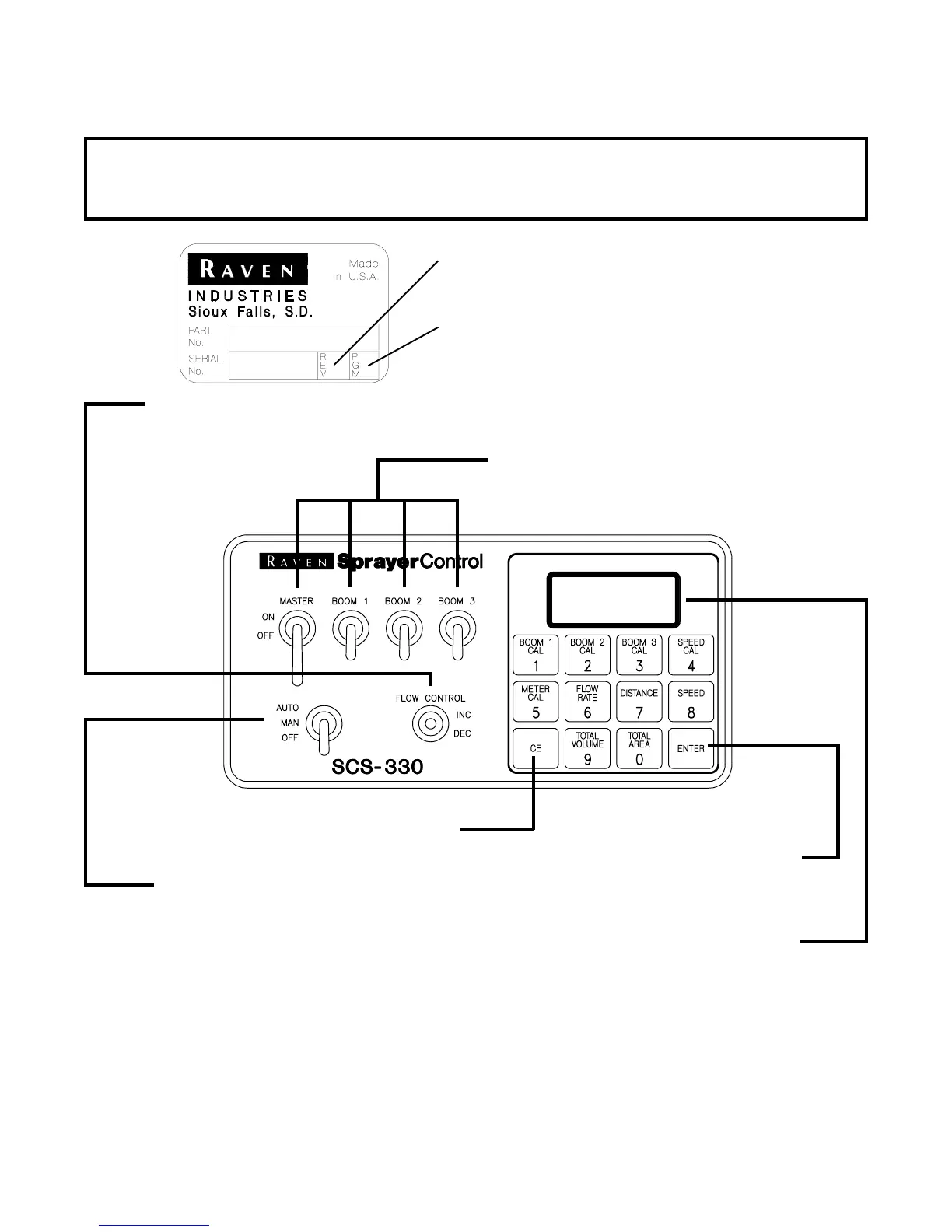

CONSOLE FEATURES
IMPORTANT:IMPORTANT:
IMPORTANT:IMPORTANT:
IMPORTANT: This Console requires selection of
USUS
USUS
US (acres),
SISI
SISI
SI [hectares], or
TUTU
TUTU
TU {1,000 sq. ft.} area;
SP1SP1
SP1SP1
SP1 (wheel drive, etc.) or
SP2SP2
SP2SP2
SP2 (radar)
speed sensor; and
C-SdC-Sd
C-SdC-Sd
C-Sd (Standard Valve) or
C-FCC-FC
C-FCC-FC
C-FC (Fast Close Valve).
Console Revision can be determined by the
letter stamped in REV box on label.
Console Program can be determined by the
letter stamped in PGM box on label.
FUNCTION KEYS -- Used to Display Data
DISTANCE -- Distance Traveled
SPEED -- Speed of Vehicle
TOTAL VOLUME -- Total Volume Applied
TOTAL AREA -- Total Area Applied
CALIBRATION KEYS -- Used to enter data into the
Console to calibrate the system.
BOOM 1 CAL -- Length of Boom 1
BOOM 2 CAL -- Length of BOOM 2
BOOM 3 CAL -- Length of BOOM 3
SPEED CAL -- Determined by Speed Sensor
METER CAL -- Meter Calibration Number
FLOW RATE -- Target Application Rate
Manual override control provides
capability for spot spraying.
Booms can be controlled individu-
ally, or all at once with MASTER
ON/OFF switch.
CE -Use like you do the CE key on
a calculator.
Selects OFF (Power OFF), manual,
or fully automatic control.
Displays actual rate of application,
calibration, and function data.
ENTER -Used only to enter data into
the Console.
063-XXXX-XXX
