Raven SCS-330 User Manual

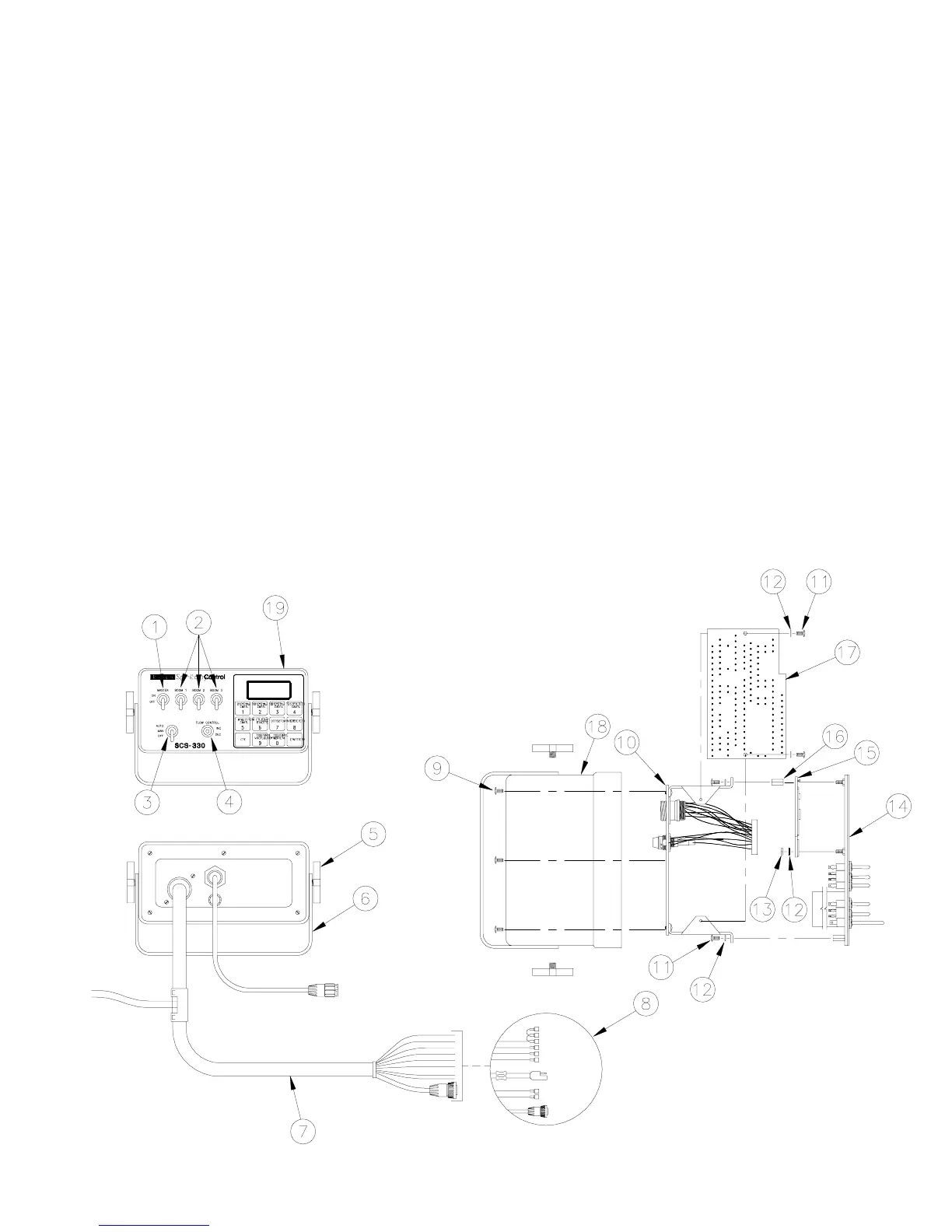

SCS 330 REPLACEMENT PARTS
ITEMITEM
ITEMITEM
ITEM
DESCRIPTIONDESCRIPTION
DESCRIPTIONDESCRIPTION
DESCRIPTION
RAVEN PART #RAVEN PART #
RAVEN PART #RAVEN PART #
RAVEN PART #
1 Master Switch 412-2011-037
2 Boom Switch 412-2011-038
3 Off/Man/Auto Switch 412-2011-052
4 Inc/Dec Switch 412-2011-053
5 Knob 309-1000-006
6 Mounting Bracket 107-0159-007
7 Console Control Cable (16 ft.) 115-0159-437
8 Kit, Cable Ass'y Terminals 117-0159-578
9 Screw, 6-32 UNC 321-0000-085
10 Connector Plate Assembly 063-0171-118
11 Screw, 6-32 UNC x 5/16" 311-0004-008
12 Internal Lockwasher 313-3000-007
13 Hex Nut 312-1001-014
14 Faceplate Assembly 063-0171-116
15 Display P.C. Assembly 064-0159-535
16 Spacer, Threaded 305-2540-625
17 Processor P.C. Assembly 064-0159-534
18 Enclosure, with Inserts 063-0171-135
19 SCS 330 Console 063-0171-115
20 10 ft. Console Control Cable (Optional)( Not Shown) 115-0159-418
21 12 ft. Flow Control Cable (Optional)( Not Shown) 115-0159-405
22 32 ft. Flow Control Cable (Optional) (Not Shown) 115-0159-706
