8
4. MOUNTING THE ENCODER (Granular Applications)
1) Mount Encoder on output shaft of conveyor, or other shaft which rotates at a known ratio to the
conveyor. (See Figures 6,7, 8 & 9).
2) Apply grease to Encoder shaft, conveyor shaft, and Encoder coupler (fits 1" diameter conveyor
shaft). Secure coupler to Encoder and conveyor shafts with set screws provided.

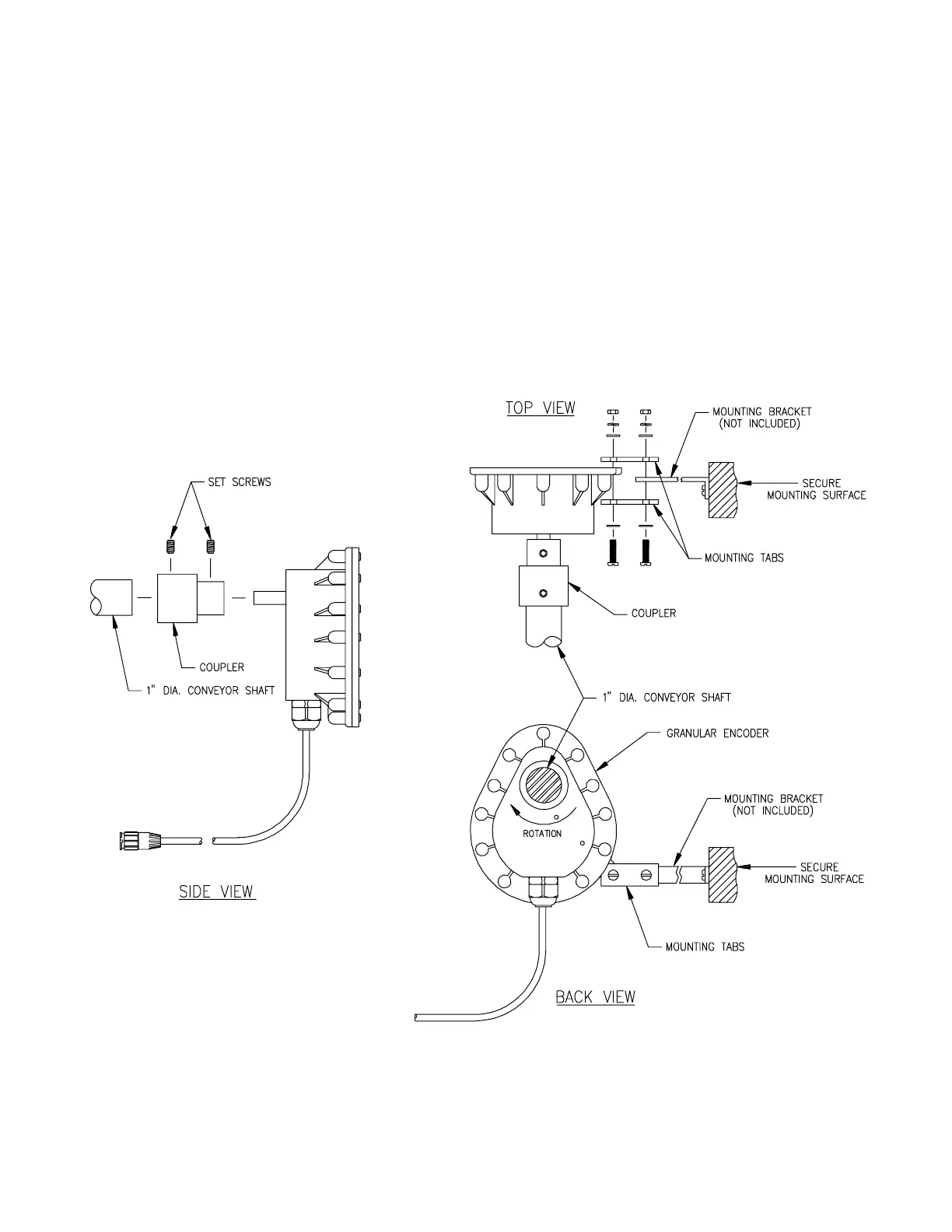

3) Install mounting tabs to Encoder as shown in Figure 5. Connect mounting tab to mounting bracket
(not provided) to prevent Encoder from rotating. DO NOT rigidly mount Encoder. Encoder is to be
supported by coupler ONLY.
FIGURE 5
