19

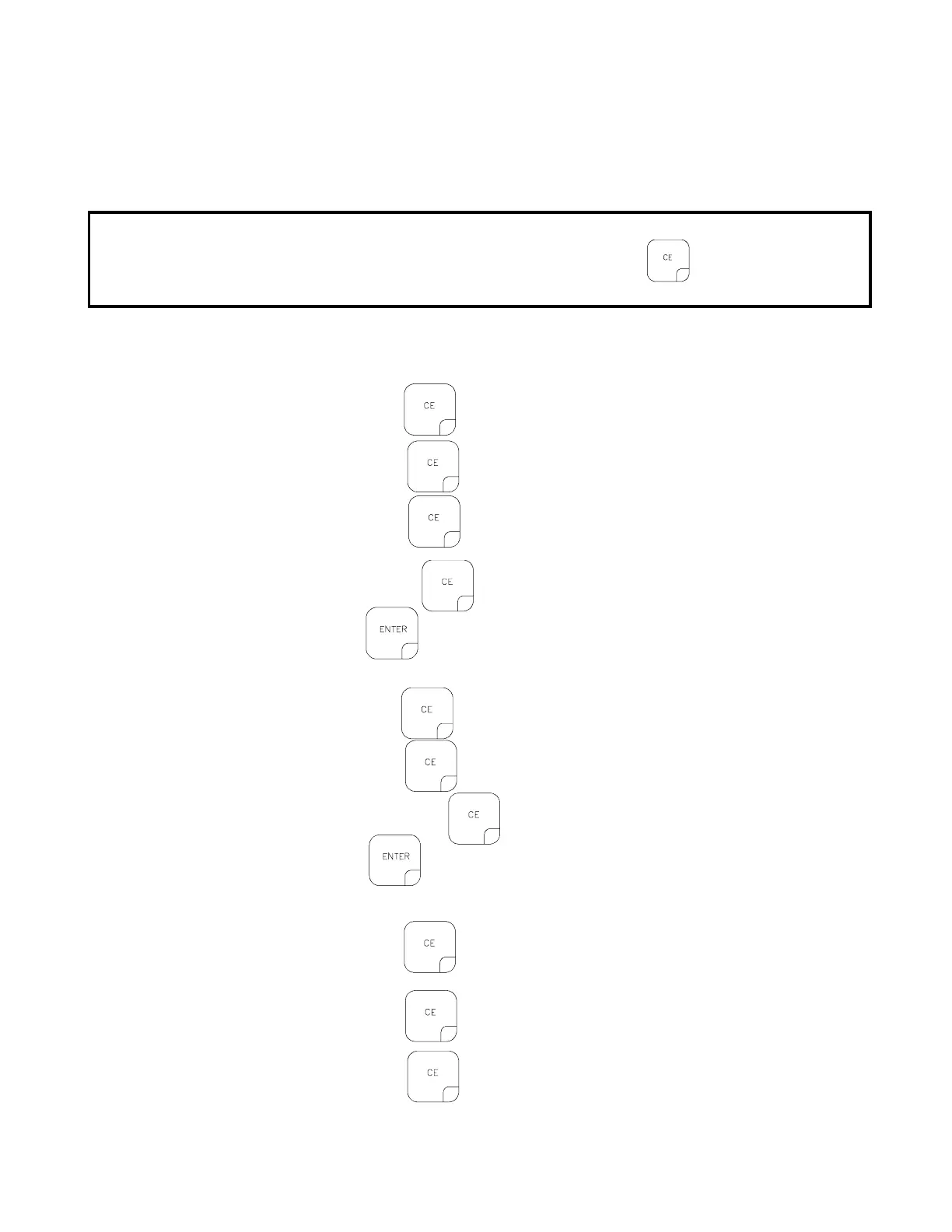

1. INITIAL CONSOLE PROGRAMMING
When you first turn on Console power, after all installation procedures have been completed, the
Console will flash "CAL" in the RATE display. This means you must "calibrate", or program, the
Console before it can be operated. This is a onetime operation which does not have to be repeated.
Turning OFF the POWER ON/OFF switch does not affect the Console memory. All data is retained.
IMPORTANT: If an entry selection error is made during Steps 1-8, place the
POWER ON/OFF switch to OFF. Depress and hold while
placingthe POWER ON/OFF switch to ON. This will "reset" the Console.
The DATA display will show "US", and the RATE display will show "CAL". The following steps must
be followed:
1) Display US (acres), SI [hectares], or TU {1000 sq. ft.}.
a) Depressing momentarily steps the DATA display from US to SI.
b) Depressing momentarily steps the DATA display from SI to TU.
c) Depressing momentarily steps the DATA display from TU to US.
2) Selecting US, SI, or TU.
a) To select US, SI, or TU, step until the desired code is displayed in DATA display.
b) Momentarily depress , the DATA display will now display SP1.
3) Display SP1 (wheel drives, etc.) or SP2 (radar sensor).
a) Depressing momentarily steps the DATA display from SP1 to SP2.
b) Depressing momentarily steps the DATA display from SP2 to SP1.
4) Selecting SP1 or SP2.
a) To select SP1 or SP2, step with until desired code is displayed inDATA display.
b) Momentarily depress , the DATA display will now display LI.
5) Displaying LI (liquid sprayer), GR1 (single belt bed),GR2 (split belt bed) or GR3 (split belt bed, dual
encoder).
a) Depressing momentarily steps the DATA display from LI to GR1.
b) Depressing momentarily steps the DATA display from GR1 to GR2.
c) Depressing momentarily steps the DATA display from GR2 to GR3.
