20

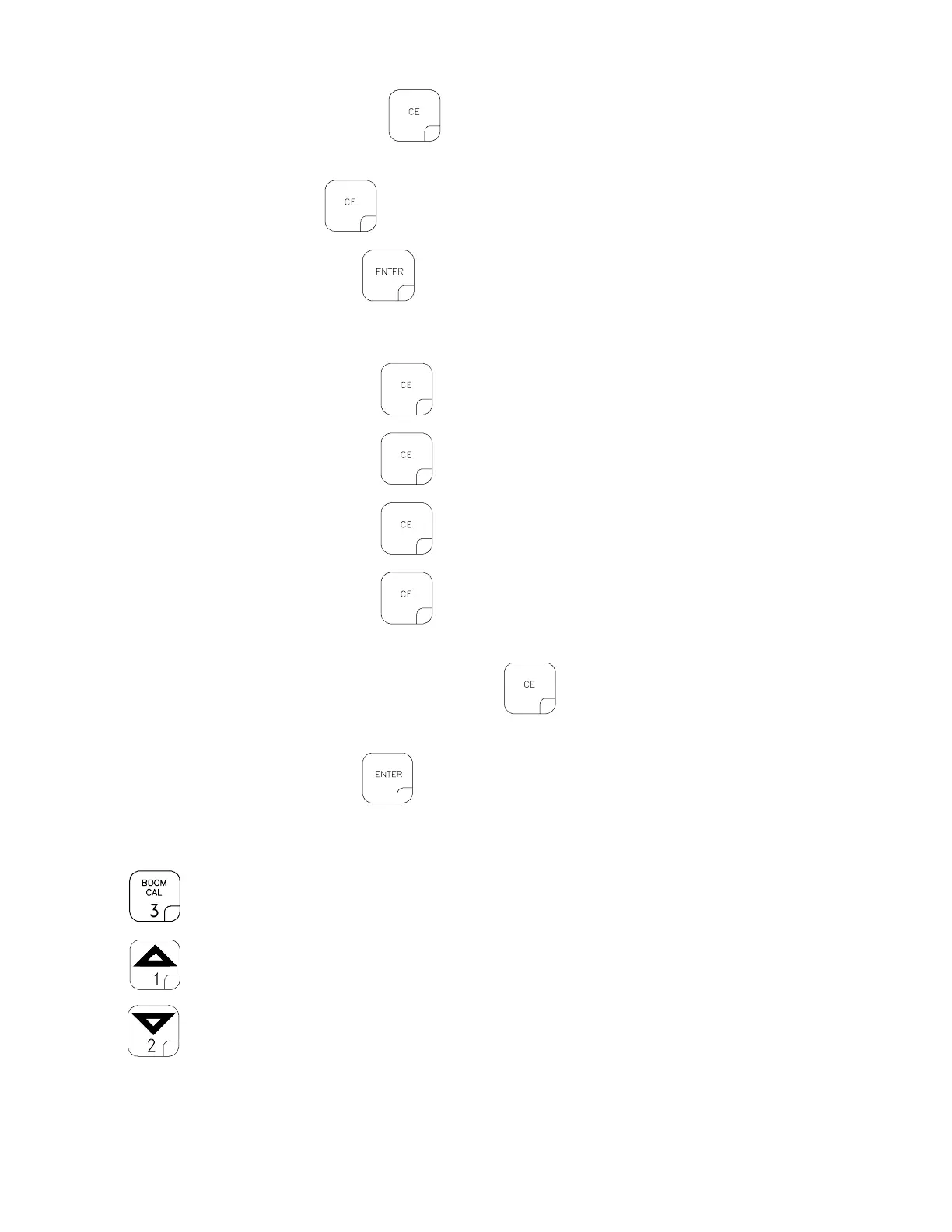

d) Depressing momentarily steps the DATA display from GR3 to LI.
6) Selecting LI, GR1, GR2, OR GR3.
a) To select LI step
until desired code is displayed in the DATA display.
b) Momentarily depress
, the data display will now display C-Sd.
7) Displaying C-Sd (Standard Valve), C-F (Fast Valve), or C-FC (Fast Close Valve) or C-P (PWM
Valve).
a) Momentarily depressing
steps the DATA display from C-Sd to C-F.
b) Momentarily depressing
steps the DATA display from C-F to C-FC.
c) Momentarily depressing
steps the DATA display from C-FC to C-P.
d) Momentarily depressing steps the DATA display from C-P to C-Sd.
8) Selecting C-Sd, C-F, C-FC, or C-P.
a) To select C-Sd, C-F, C-FC, or C-P, step
until desired code is displayed in DATA
display.
b) Momentarily depress
, the DATA display will now display 0.
9) Definition of Boom Calibration keys.
Depressing this key displays selected boom number in DATA display.
EXAMPLE: Left Boom will be displayed as b-01, and Right Boom will be displayed as b-10
if all 10 Booms are used.
Depressing this key after selecting BOOM CAL changes the boom number.
EXAMPLE: b-01 will change to b-02.
Depressing this key after selecting BOOM CAL changes the boom number.
EXAMPLE: b-02 will change to b-01.
Entering Boom Data:
1. Select desired boom number.
2. Enter boom length as detailed under CALCULATING "BOOM CAL" section.
3. If a boom is not needed, enter a "0" for a length.
