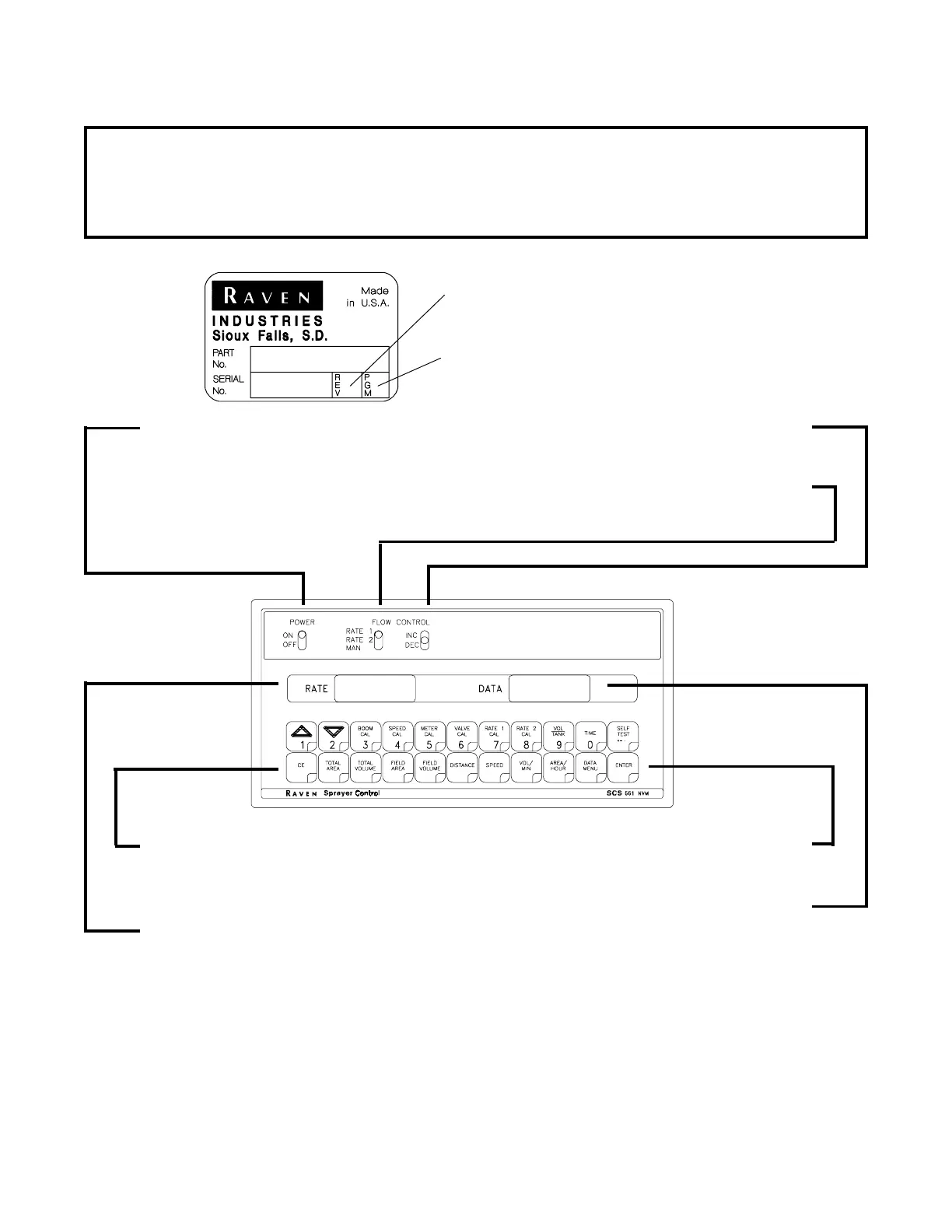

CONSOLE FEATURES
IMPORTANT:This Console requires selection of US (acres), SI [hectares], or TU {1,000 sq.
ft.} area; SP1 (wheel drive, etc.) or SP2 (radar) speed sensor; LI (liquid sprayer),
GR1 (single belt bed), GR2 (split belt bed), or GR3 (split belt bed, dual encoder);
and C-Sd (Standard Valve), C-F (Fast Valve), C-FC (Fast Close Valve), and
C-P (PWM Valve).
POWER -Turns Console power ON or OFF.
Turning Console OFF does not affect the
data stored in the computer.
CE -Exits ENTER mode and is also used to
select the features listed in IMPORTANT
box above.
Displays actual rate of application and
other messages.
Displays function and calibration data.
Manual override control provides capability
for spot applications.
Selects manual or fully automatic control.
Console Revision can be determined by letter stamped
in REV box on label.
Console Program can be determined by letter stamped
in PGM box on label.
CALIBRATION KEYS-- Used to enter data into the
Console to calibrate the
system.
BOOM CAL -- Width of Boom 1-10. Select
Boom number by using the
UP/DOWN arrow keys.
SPEED CAL - - Determined by Speed Sensor
METER CAL - - Meter Calibration Number
VALVE CAL -- Valve Response Time
RATE 1 CAL -- Target Application Rate
RATE 2 CAL -- Target Application Rate
VOL/TANK -- Volume in Tank
TIME - - Time/Date features
SELF TEST - - Simulates Vehicle Speed
063-XXXX-XXX
FUNCTION KEYS - - Used to Display Data
TOTAL AREA -- Total Area Applied
TOTAL VOLUME -- Total Volume Applied
FIELD AREA -- Field Area Applied
FIELD VOLUME - - Field Volume
DISTANCE -- Distance Traveled
SPEED - - Speed of Vehicle
VOL/MIN -- Volume Per Minute
AREA/HOUR -- Area per Hour
DATA MENU -- Various options
ENTER -Used only to enter data into the
Console.
