6. MOUNTING THE CONSOLE AND CABLING
1) Mount the Console and Switch Box to a secure support inside the cab of the vehicle.
2) Connect the Console Control Cable to the plug in the back of the Console. (See Figure 10). Route
the Console Control Cable out of the vehicle cab and connect with vehicle connectors.

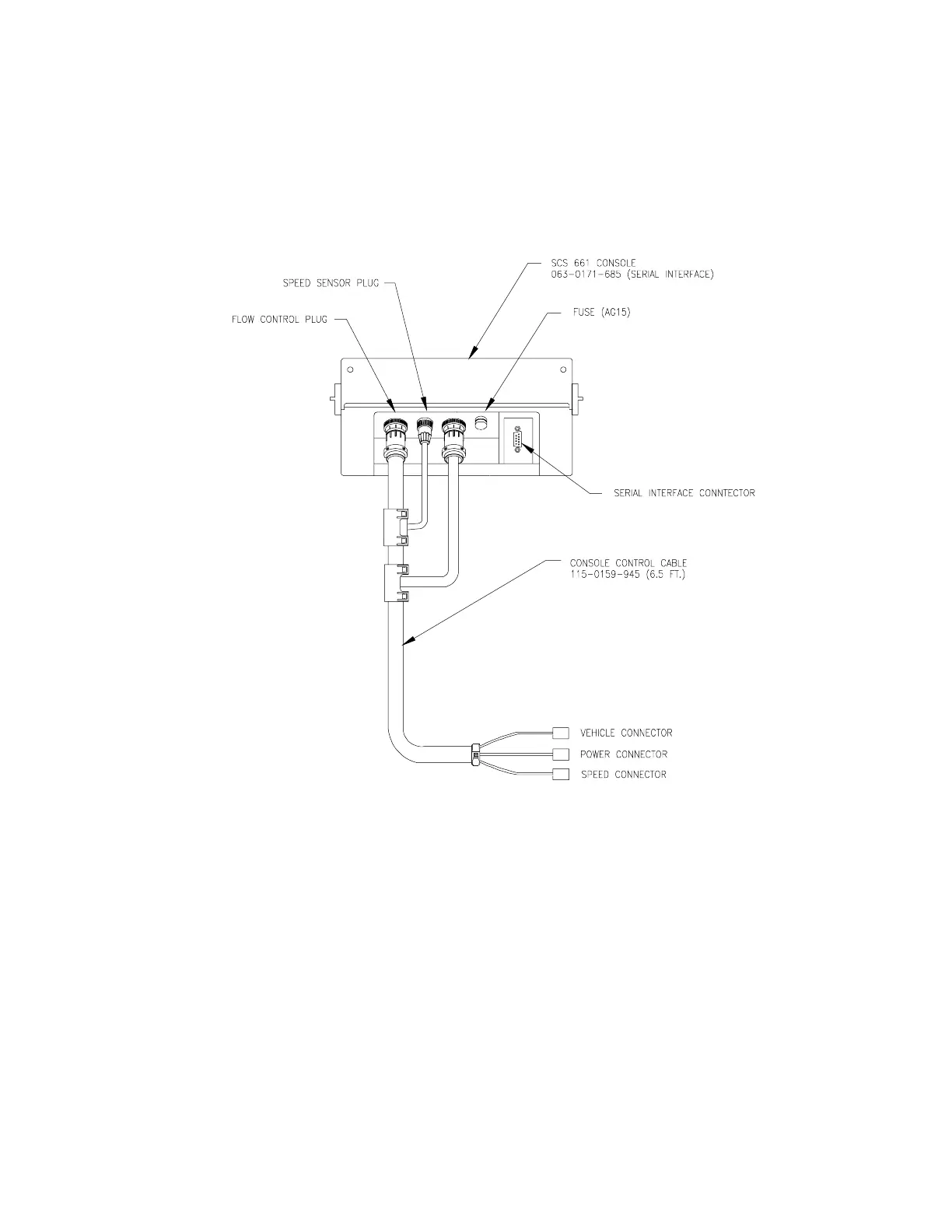

FIGURE 10
3) Secure Console Control Cable with plastic cable ties.
4) Initial installation of the system is now complete.
