Raven SmarTrax Calibration & Operation Manual

CHAPTER 3
22 ROS SmarTrax™ Calibration & Operation Manual

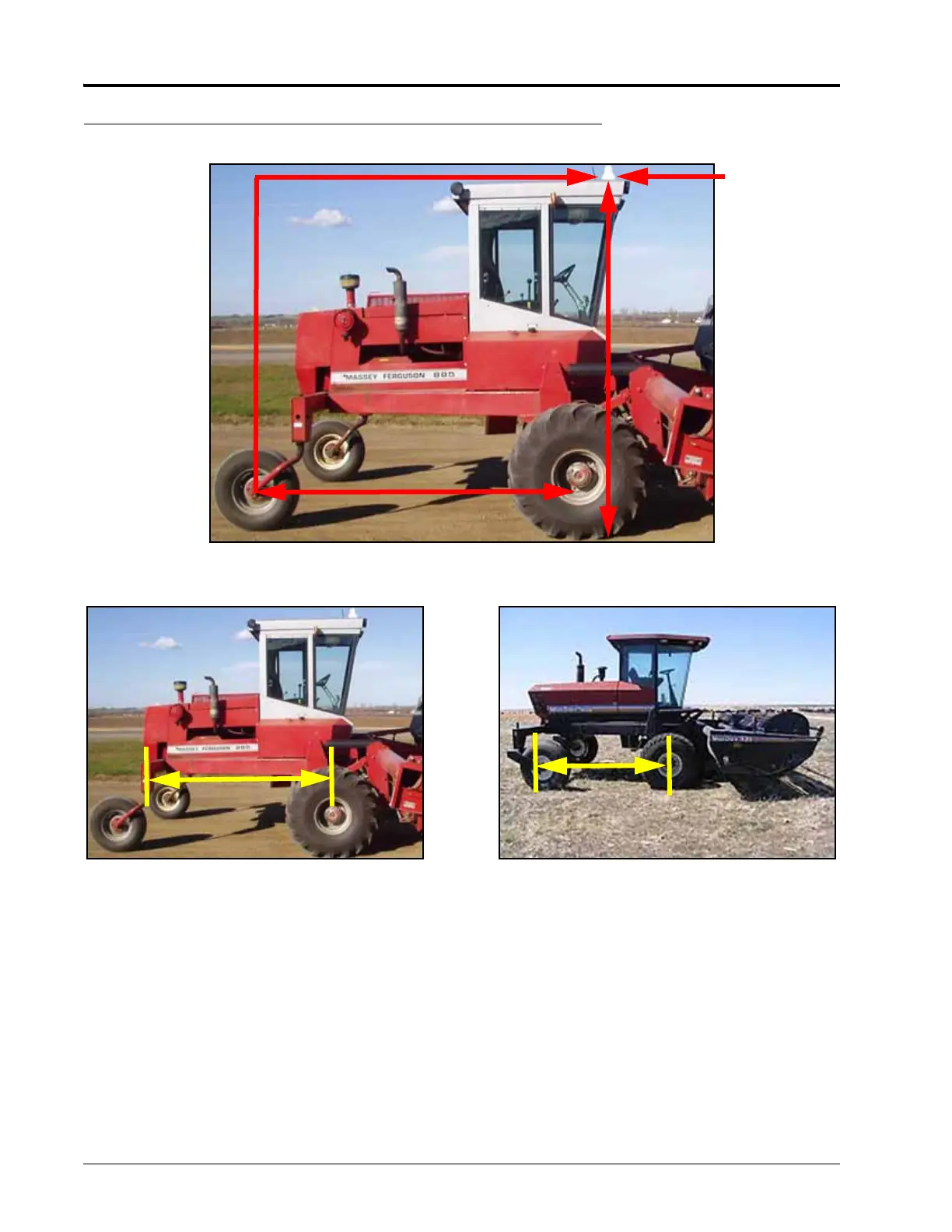

FIGURE 18. Swather Machine Measurements
NOTE: For swather machines, the rear wheels MUST be positioned behind the pivot point and pointing
forward to reflect the tire position during normal, straight line operation. To figure the wheelbase
distance, measure from the center of the rear tire to the center of the front tire.
CORRECT
INCORRECT WHEEL BASE MEASUREMENT
WHEEL BASE
MEASUREMENT
ANTENNA FORE/AFT
MEASUREMENT
ANTENNA
HEIGHT
MEASUREMENT
RECOMMENDED
ANTENNA
MOUNTING
LOCATION
Wheel base measurement taken from pivot
point instead of the center of the front wheel.
Wheel base measurement taken with wheels
reversed and not in the straight line operation
position.
