Replacing the ADF Reverse Roller
After scanning approximately 100,000 pages through the ADF, the ADF Reverse Roller
may be worn out and you may experience problems with document feeding. In this case,
you may need to replace a new ADF reverse roller. For ordering the ADF roller, please
visit https://www.raven.com/accessories, email Raven support at support@raven.com
or call 1-800-713-9009 to order a replacement.
Disassembling Procedure
1. Press the ADF Release button.
2. Gently open the ADF Front Cover to the left.

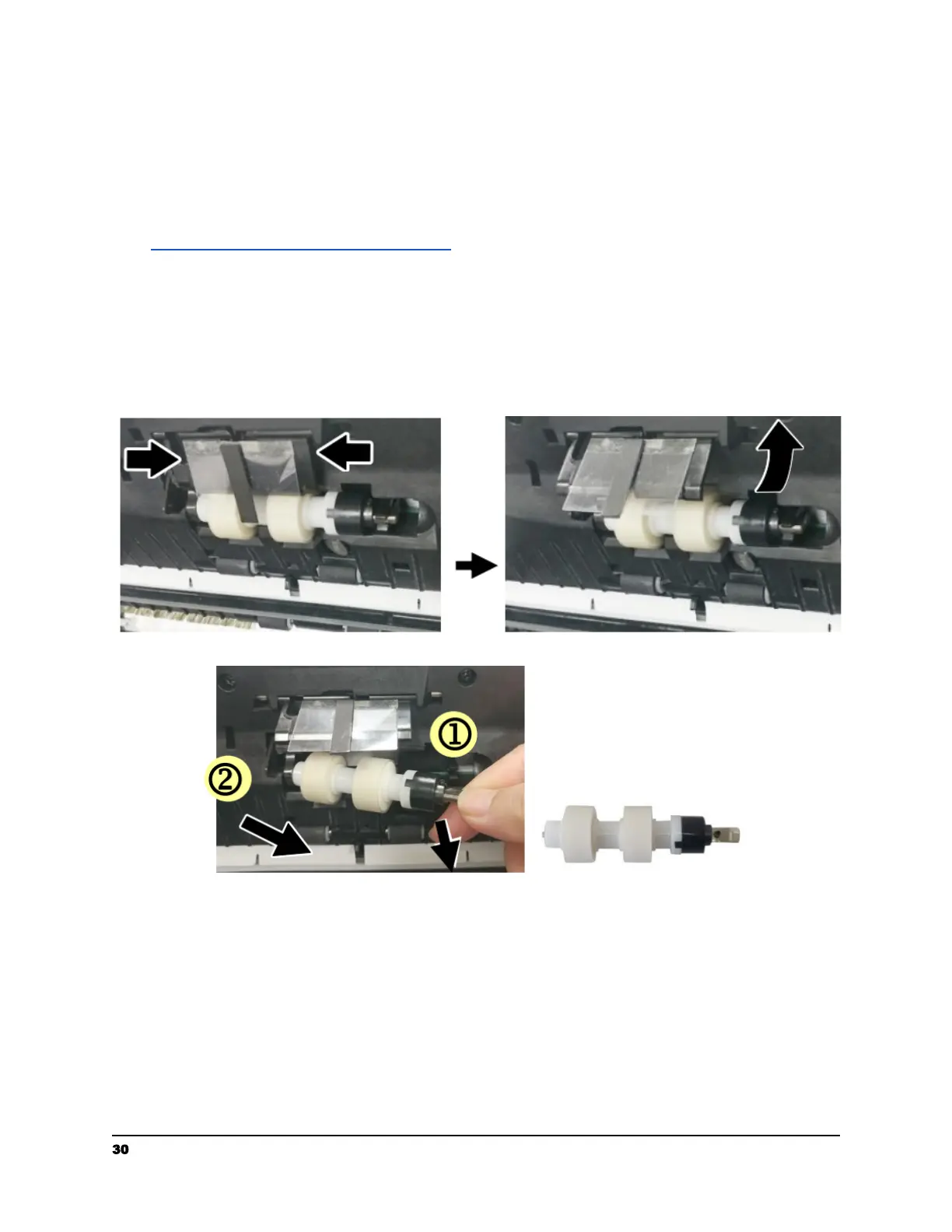

3. Hold the mylar assembly with your fingers and then lift it up as illustrated below
4. Locate the white wheel to the right, and gently pull the roller at an angle towards
5. Press the right end of the Friction Roller externally to detach it from the slot and
then detach the left end from its hole.
30 support@raven.com | 1-800-713-9009 | raven.com/support
