RG55 Operation • Service • Maintenance
24
Operation

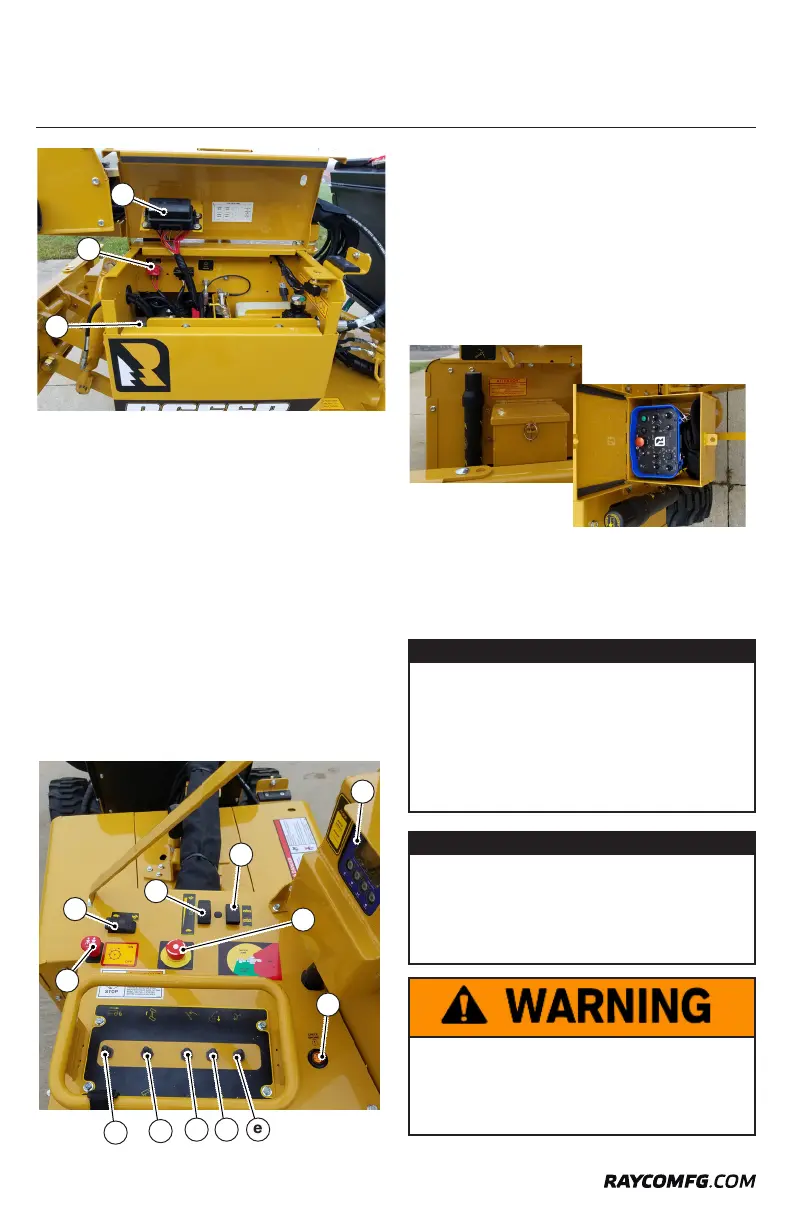

12. Battery Enclosure
a. 12v Circuit Breaker
b. Relays
c. LCM (Logic Control Module)
d. Battery
13. Display - See pages 28-32 for display operating
instructions.
14. Operator Panel
a: Move Forward/Reverse - Move machine towards/away
from stump with lever.
b: Steering - Steer machine Left/Right with lever.
c: Cutter Boom Lift - Raise/Lower with the lever.
d: Cutter Boom Swing/ Blade - Swing the cutter boom
Left/Right with lever.
e: Emergency shut down.-(NOTE: To reset emergency
stop, turn swtich top clockwise.)
f: Engine throttle toggle.
g: Travel speed - Rayco recomends only using the fast
speed while traveling between stumps.
h: Blade / Boom Swing - To switch between operating the
blade or the cutter wheel, press the toggle to the desired
operation.
i: Cutter Wheel On/Off Button - Pullup to turn cutter wheel
on, press down on the button to shut the cutter wheel off.
j: Check Engine Light - In the event the Check Engine Light
would illuminate, immediately stop operating the RG55. Make
sure there are no potential hazards, leaking fluid of any kind.
Check the display panel on the left side of the operator
station. (Reference pages 28-32 to navigate through the
display panel options.)
Contact your dealer, or Rayco Service Dept ASAP.
e
13
b
d
a
c
g
a
h
e
b c
d
i
f
j
NOTICE
Continue use of the machine while the Check
Engine light is illuminated may cause other
damages and/or failure to the machine. Resulting in
void of warranty. See warranty rules and guidelines
on page 63
NOTICE
The control levers will re-center themselves in
a neutral position when released. No movement
should occur, if you observe any movement when
controls are in nuetral position, please contact
a service technician immediately and follow the
tag-out procedure outlined in the safety section of
this manual.
