Wuhan Raycus Fiber Laser Technologies Co., Ltd.
User Guide of RFL-C100~RFL-C2000S
28

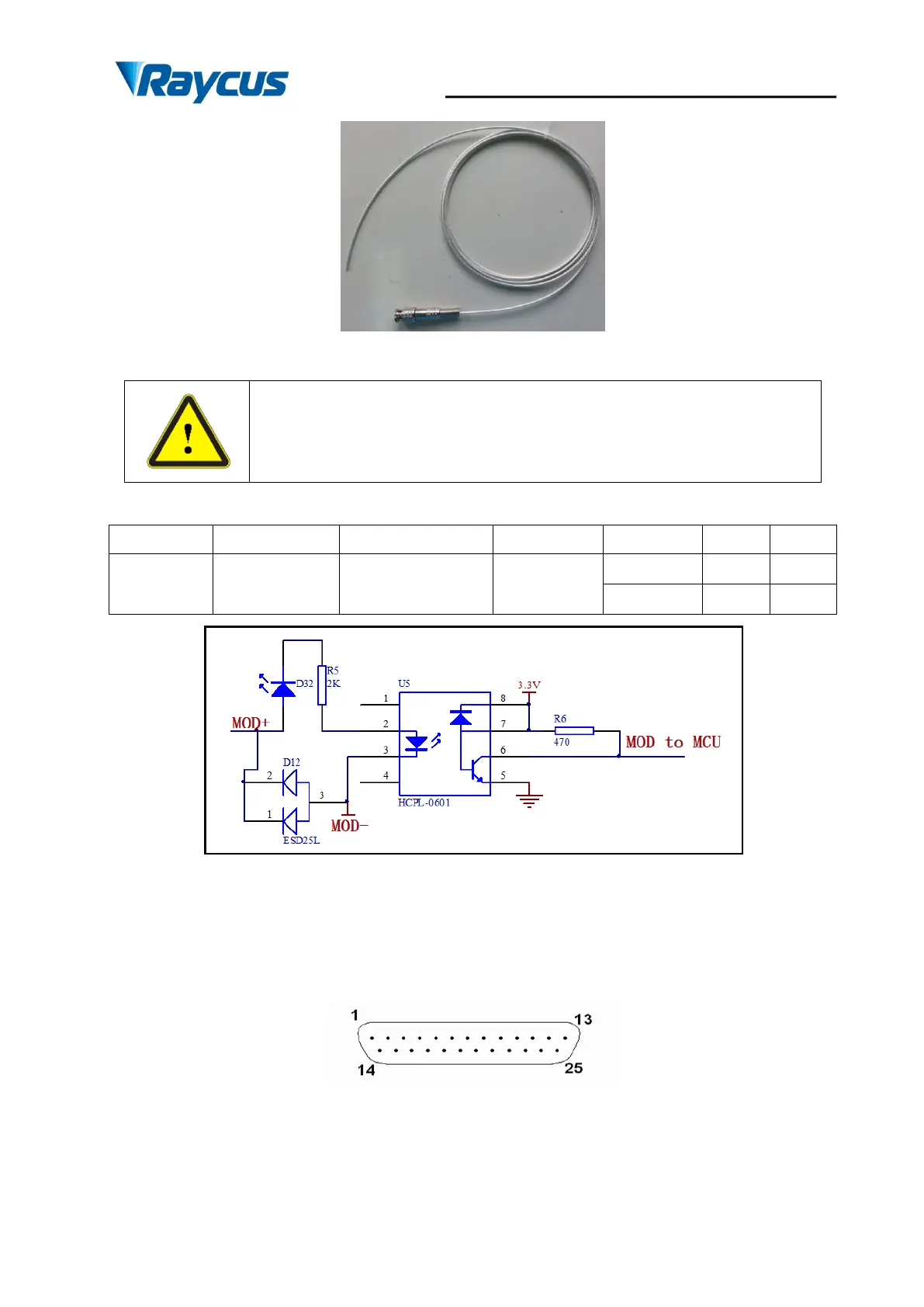

Figure 15 MOD Cable-The Cable for Modulation Signal
The modulation signal cable core is positive (24V) and the external metal
mesh is negative (GND). Before the modulated signal is connected to the
laser, please check the level.。
Table 9 MOD definition
Figure 16 The internal circuit of the modulation signal
4.4.3 Control Interface
The pin number of‘CTRL-INTERFACE’is shown in Figure 17:
Figure 17 Pin Number of control Interface
The definitions of the control interface are as follows:
Table 10 Control Interface Definitions
