Wuhan Raycus Fiber Laser Technologies Co., Ltd.
User Guide of RFL-C100~RFL-C2000S
30

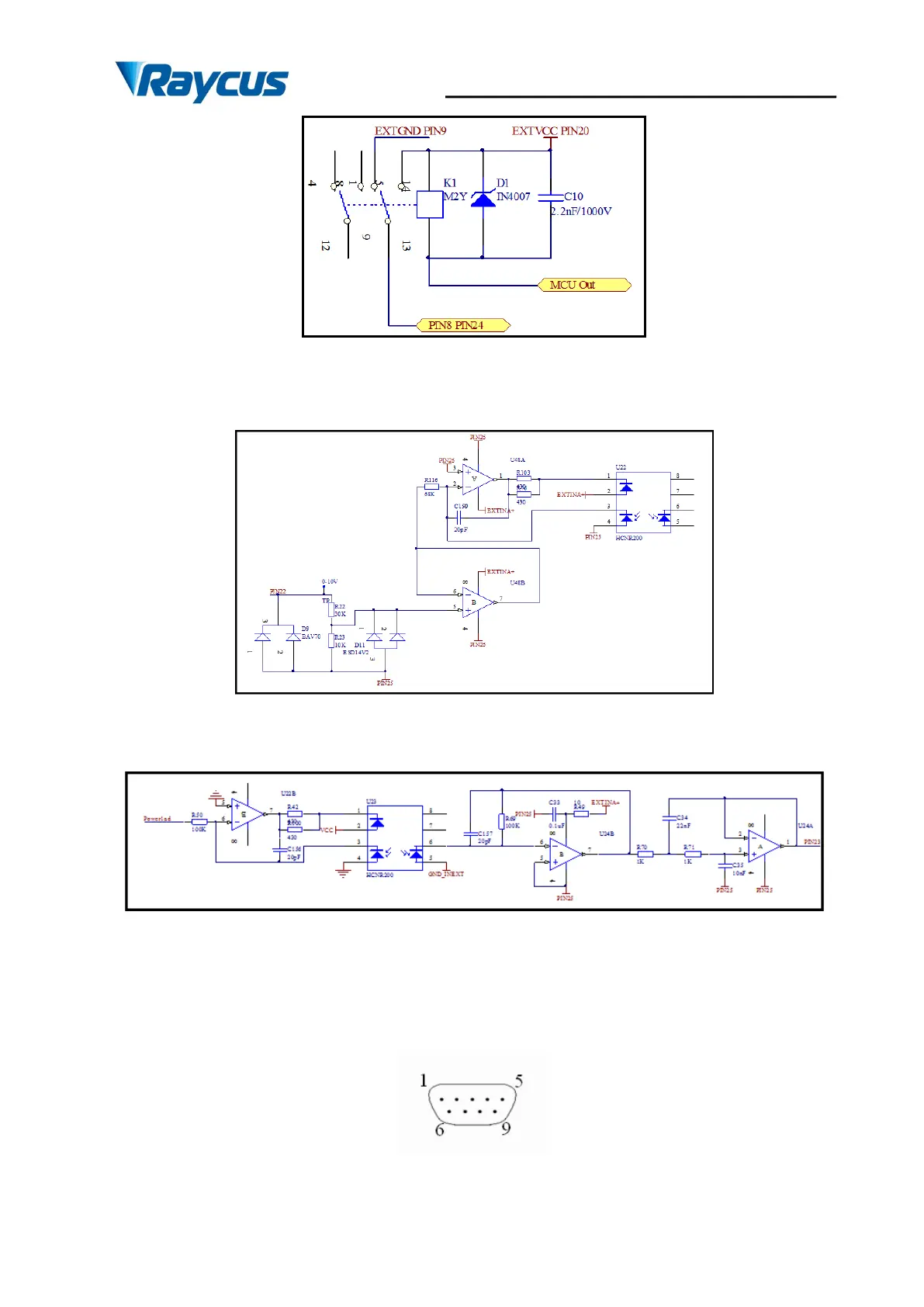

Figure 19 PIN8 and PIN24 internal circuit
3）PIN22 internal circuit
Figure 20 PIN22 internal circuit
4）PIN23 internal circuit
Figure 21 PIN32 internal circuit
4.4.4 RS-232 Serial Port
Figure 22 shows the pin number of RS-232 serial port.
Figure 22 Pin Number of RS-232 Serial Port
