Wuhan Raycus Fiber Laser Technologies Co., Ltd.
User Guide of RFL-C100~RFL-C2000S
31
And the definitions of the pins are in the following table:
Table 11 RS-232 Serial Port Definitions
PIN
DESCRIPTION
2
RX
3
TX
5
GND
Others
NONE
A three-lines (RxD, TxD, GND) interface is used. For detail commands and description
please see the introduction of PC software or ask Raycus to get the Communication protocol.
The specific parameters of the RS-232 control interface are set as follows:
Table 12 RS-232 Interface parameters
PARAMETER
Values
baud rate：
9,600
Data bit：
8
Stop bit：
1
polarity：
NC
flow control：
NC

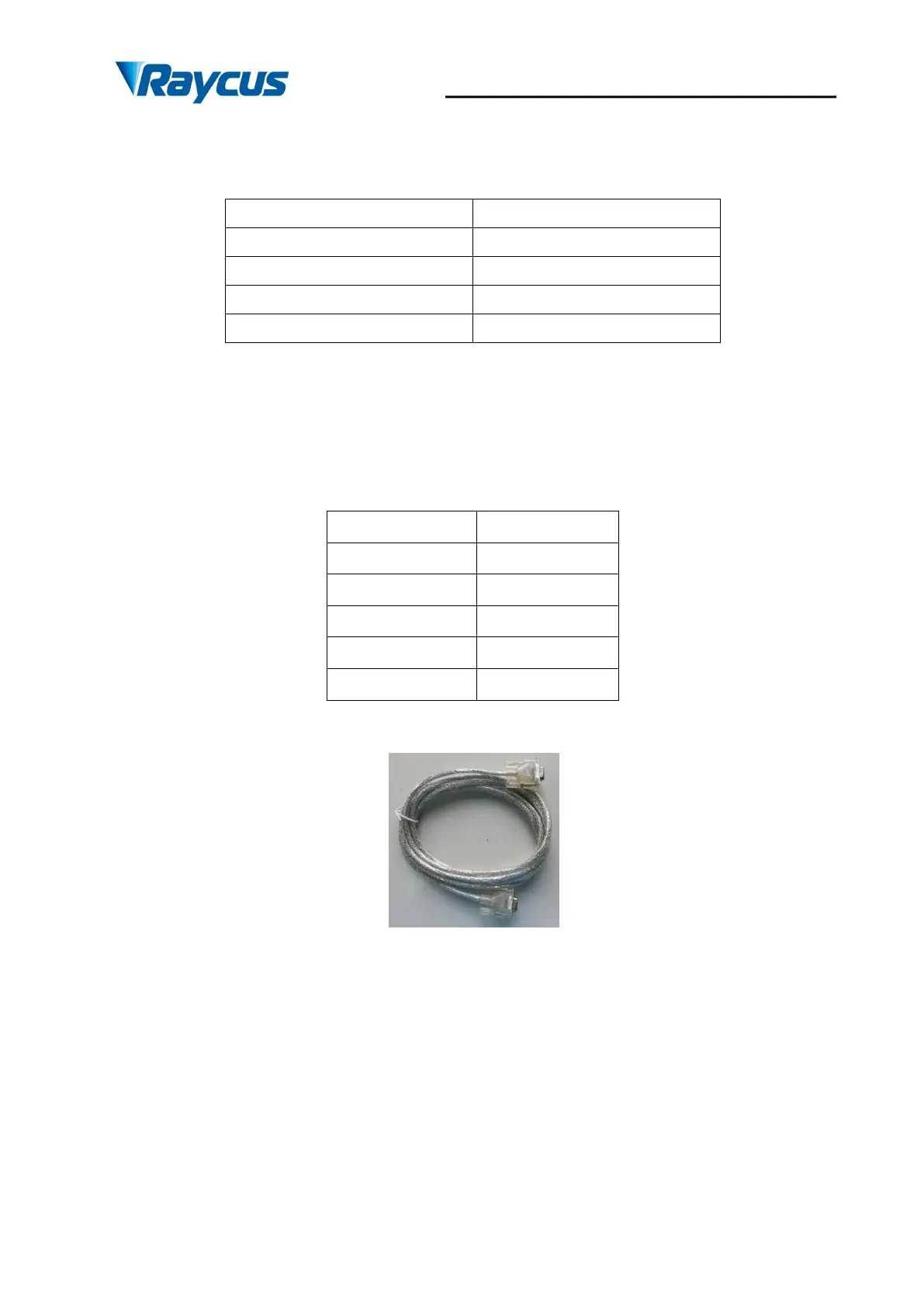

Figure 23 shows the RS-232 serial cable.
Figure 23 RS-232 Cable
4.4.5 TCP/IP Interface Configuration
The default IP address of this product is 192.168.0.10, only supports UDP communication.
The laser listens for connection on port is 8098, and the command must be sent in a single data
string.
Table 13 The pins definition of Ethernet interface
