7.9 Options

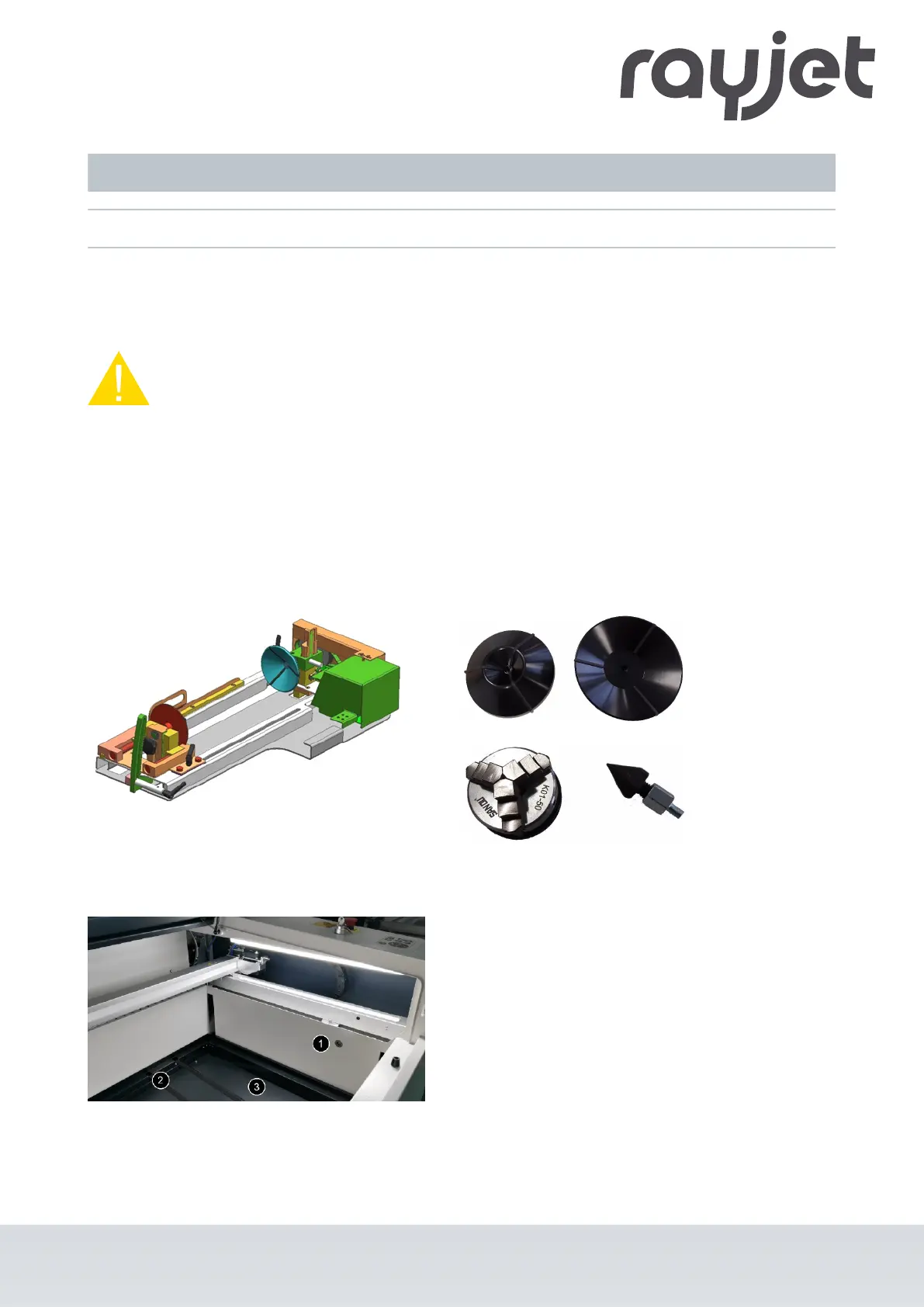

7.9.1 Rotary attachment (option)
The Rotary attachment is used to engrave cylindrical workpieces. Upon selection of the option "Rotary
attachment" in the control software and entering the diameter of the object to be engraved, the image size
will automatically be automatically adjusted to the diameter of the workpiece to be processed.
Caution
Damage to electronics.
Inserting or removing the Rotary attachment while the machine is turned on may irreparably
damage the electronics.
Switch off the machine before inserting or removing the Rotary attachment.
Rotary attachment with cones:
Max. workpiece diameter: 6.3 inch (160 mm)
Max. workpiece length cones: 19.7 inch (500 mm)
Included in scope of delivery:
Konus 5,9 inch (150 mm)
Konus 3,9 inch (100 mm)
Three-jaw chuck and counter bearing 0,04-2 inch
(1-50 mm)
Installation and commissioning
❶ Connection for the rotary attachment
❷ Metal bars
❸ Table base frame
