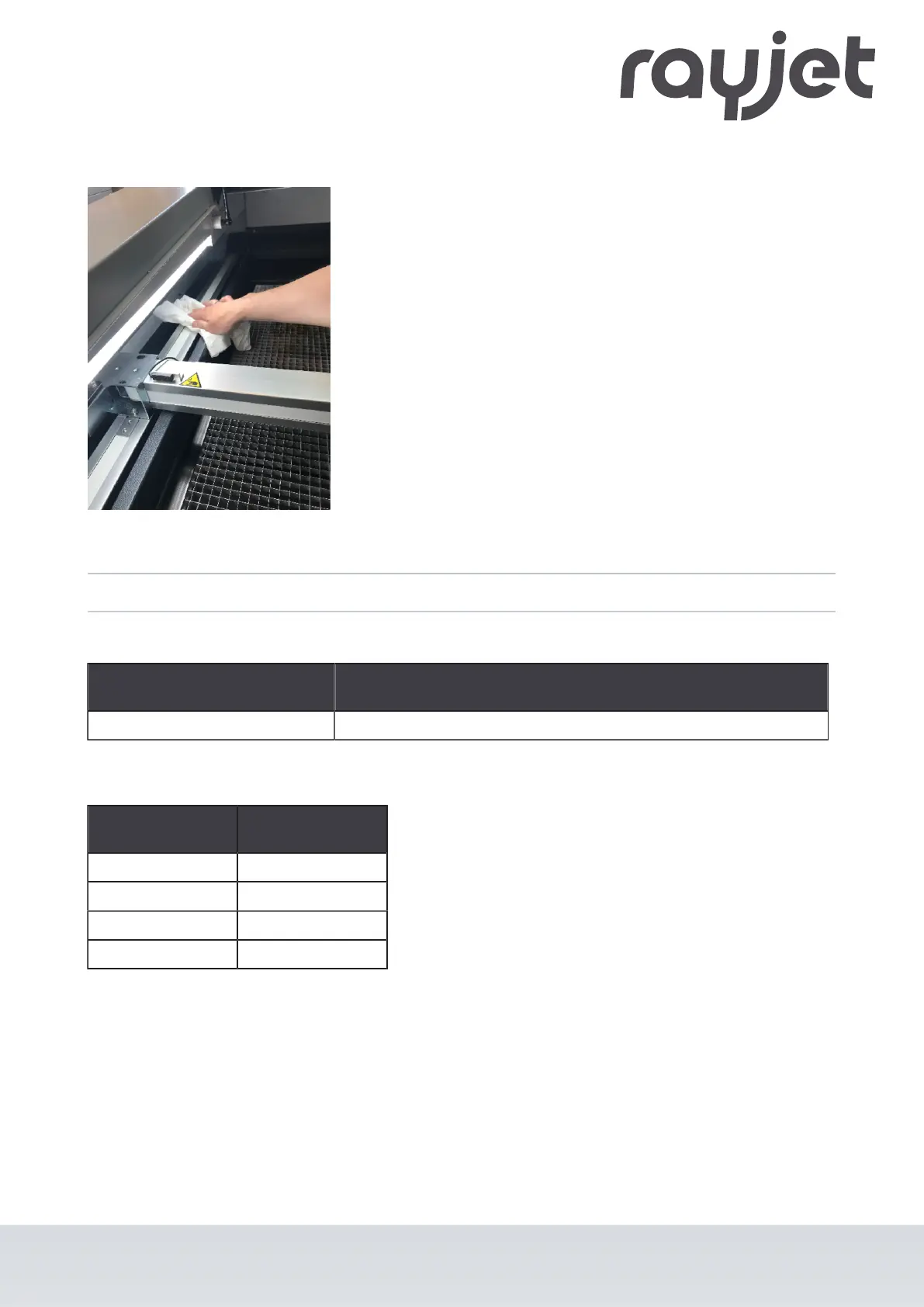

Y-axis rail cleaning
1. Clean the entire length of the y-axis rails with a
cleaning cloth.
Perform this procedure on both sides.
8.3.6 Lubricating motion system
Lubrication of the axis rails in x and y-direction
Lubrication interval: 150 operating hours or 4 weeks
Lubrication quantity: 0.2 cm
3
(2 strokes with grease gun)
Recommended lubricants
Producer Type
HiWin G05
Fuchs RENOLIT LZR2H
Klüber Microlube GL 261
Mobil Mobilus EP2
Recommendation grease gun:
HiWin GN-80M with lubrication adapter
A3: Hollow mouthpiece with lubrication adapter
For ball lubrication nipples roof DIN 3402, outside diameter 6mm.
ENGLISH (Translation)
07/2021
67 / 83
