Notice
Switch off the machine and disconnect it from the main power supply. Then lubricate the motion
system.

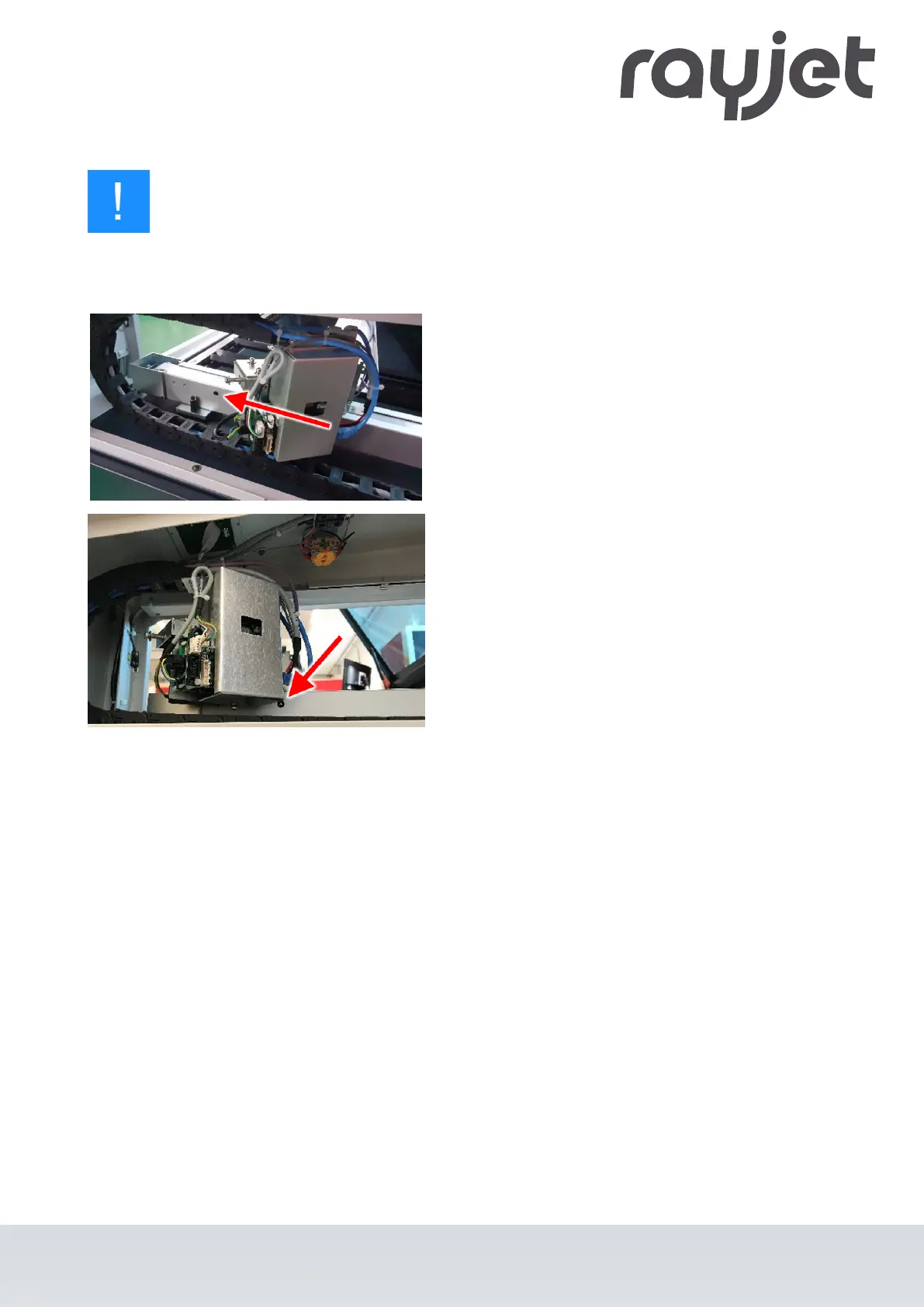

Position 1 of 3: Lubricate y-axis at front position
•
Remove the right side cover.
•
Move the x-axis to the far left (front of the working
table).
•
Lubrication nipple should be accessible and
concentric with hole.
•
Press two pump strokes of the grease gun into the
lubrication nipple.
•
If required: Remove excess grease with paper
towel.
•
Replace the side cover.
