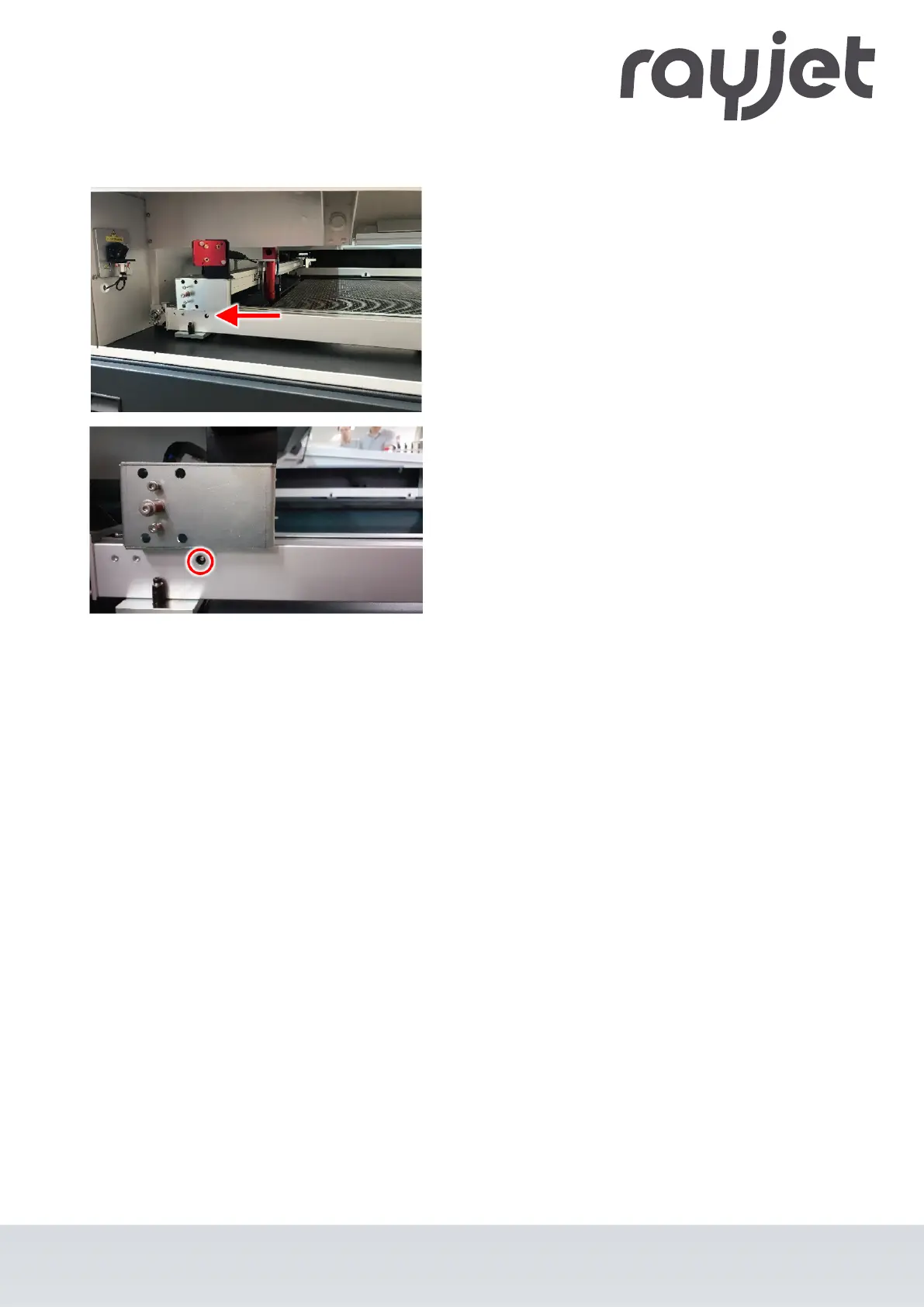

Position 3 of 3: Lubricate y-axis at rear position
•
Remove the left side cover.
•
Move the x-axis to the far left (back of the working
table).
•
Lubrication nipple should be accessible and
concentric with hole.
•
Press two pump strokes of the grease gun into the
lubrication nipple.
•
If required: Remove excess grease with paper
towel.
•
Replace the side cover.
ENGLISH (Translation)
07/2021
70 / 83
