Chapter 6: Fishfinder application 77
Using A-Scope to view a live image
The standard fishfinder display shows a historical record of fish-
finder echoes. If required, you can display a live image of the bottom
structure and the fish directly below the transducer by using the A-
Scope feature. The width of the bottom area covered by the A-
Scope is indicated by the number at the bottom of the window.
To display the A-Scope image
1. Press the SELECT VIEW softkey.
2. Use the track pad up/down to select A-SCOPE display mode.
3. Press the A-SCOPE MODE softkey to select the required display
mode.
A-SCOPE Modes softkey

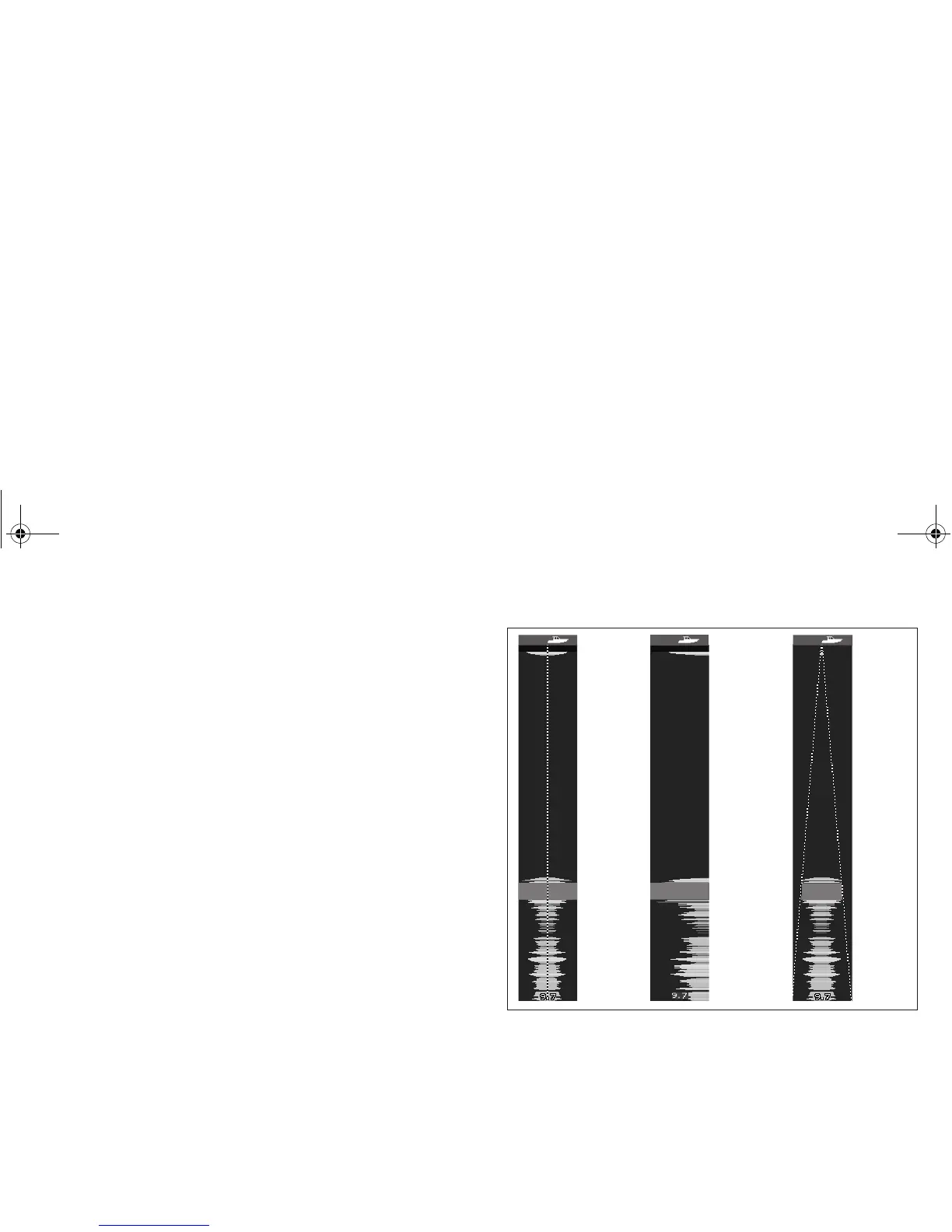

The A-Scope has the following display modes:
D6674-3
MODE 1
The A-scope
image is centred
in the window.
MODE 2
The left-hand side
of the Mode 1
image is expanded
to give a more
detailed view.
MODE 3
The A-scope
image angles
outward as
signal width
increases with
depth.
