8 DS400X and DS500X Digital Fishfinders
Cutting the transducer cable will severely reduce sonar performance:
• Do not cut the transducer cable or remove the connector.
• Do not shorten or splice the cable.
If the transducer cable is cut, it must be replaced—it cannot be repaired.
Cutting the cable will also void the warranty.

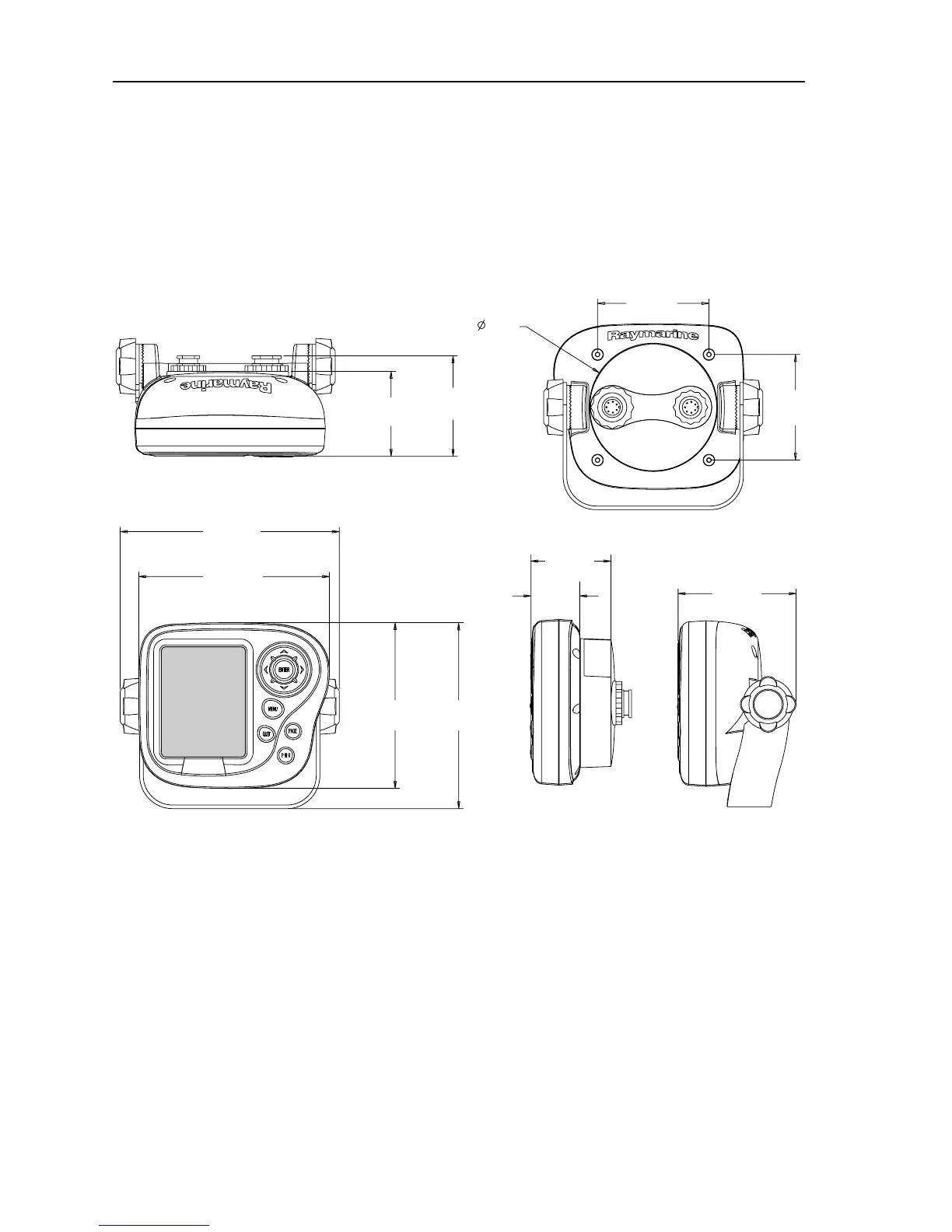

Figure 2-1: DS400X Unit Dimensions
2.28 in
(57.9 mm)
5.88 in
(149.4 mm)
5.12 in
(130 mm)
4.45 in
(113 mm)
5.0 in
(127 mm)
3.17 in
(80.5 mm)
1.3 in
(33.2 mm)
2.70 in
(68.6 mm)
2.99 in
(76 mm)
2.83 i
(72 m
3.46 in
(88 mm)
D6440-2
2.28 in
(57.9 mm)
