Chapter 2: Installation 9

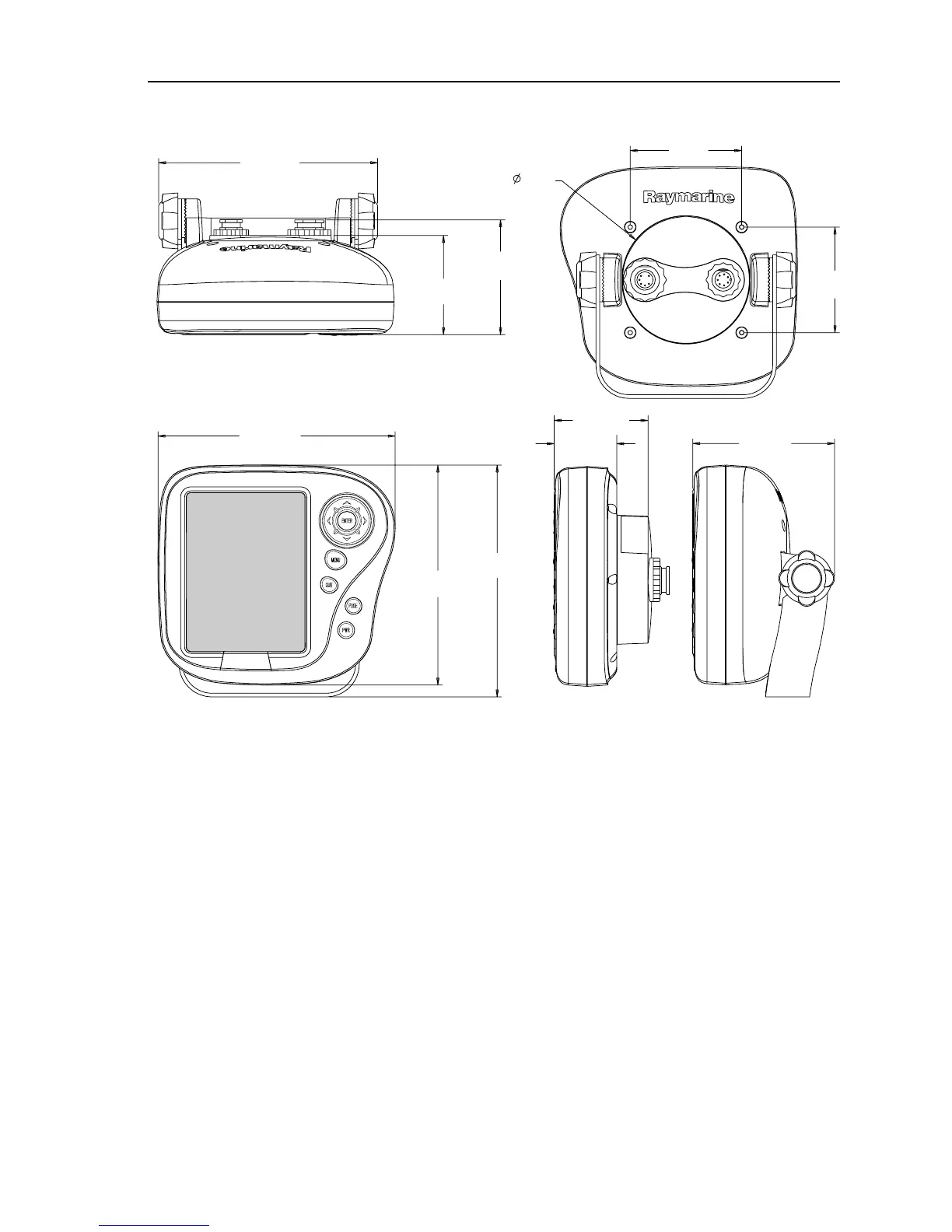

Figure 2-2: DS500X Unit Dimensions
3.46 in
(88 mm)
5.88 in
(149.4 mm)
2.66 in
(67.6 mm)
3.08 in
(78.3 mm)
2.99 in
(76 mm)
2.83
(72
m
6.37 in
(161.8 mm)
3.81 in
(96.7 mm)
5.9 in
(150 mm)
6.22 in
(158 mm)
D6448-2
2.66 in
(67.6 mm)
1.68 in
(42.7 mm)
