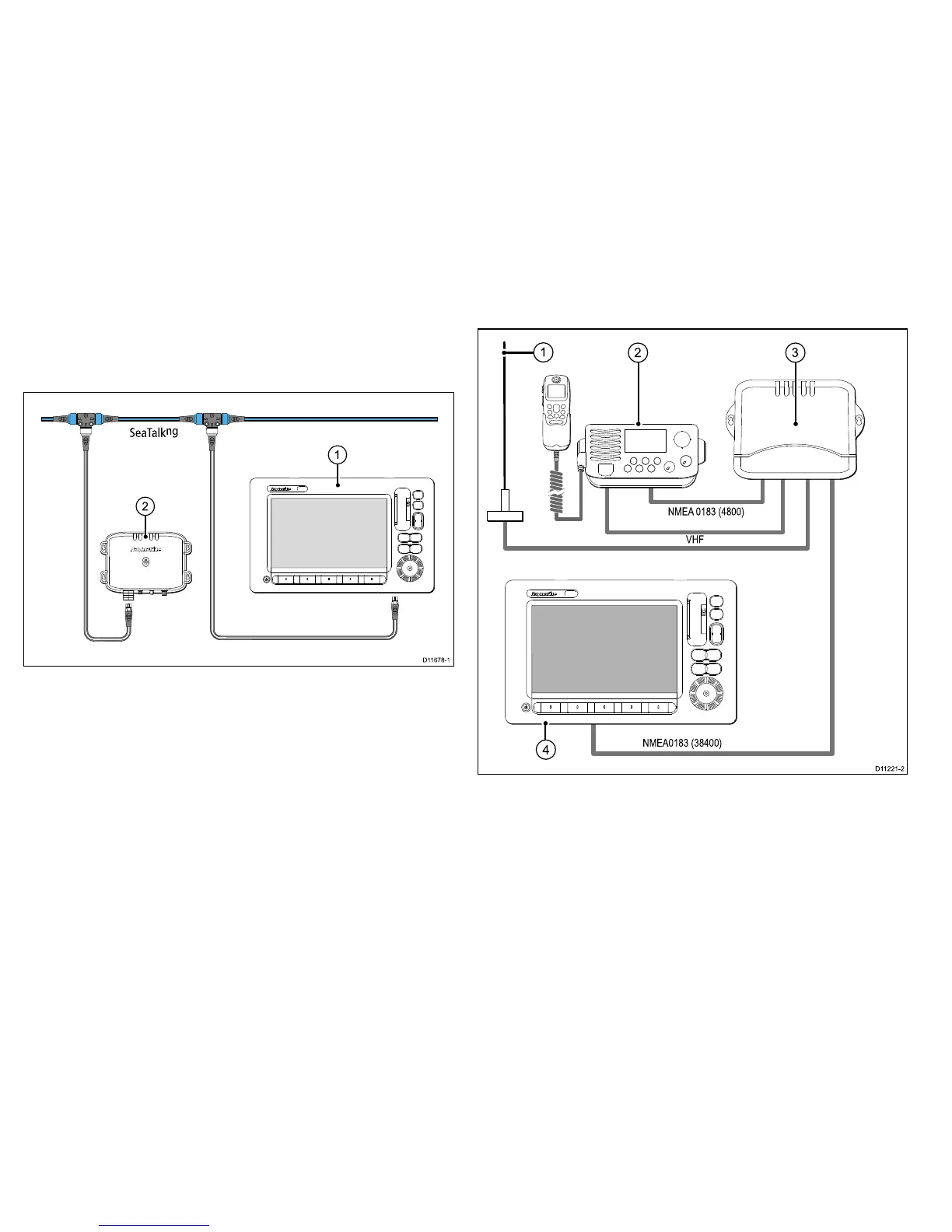

3.9AISconnection
AcompatibleAIScanbeconnectedusingSeaTalk
ng
orNMEA0183.
ConnectionusingSeaTalk
ng
D11678-1
SeaTalk
ng
AIS
500
1
2
1.Widescreendisplay
2.AIS500transceiver
ConnectionusingNMEA0183
D112 21 -2
NMEA0183 (38400)
VHF
NMEA 0183 (4800)
1
2 3
4
1.VHFantenna
2.VHFradio
3.AISunit
4.Display
38E-SeriesWidescreeninstallation
