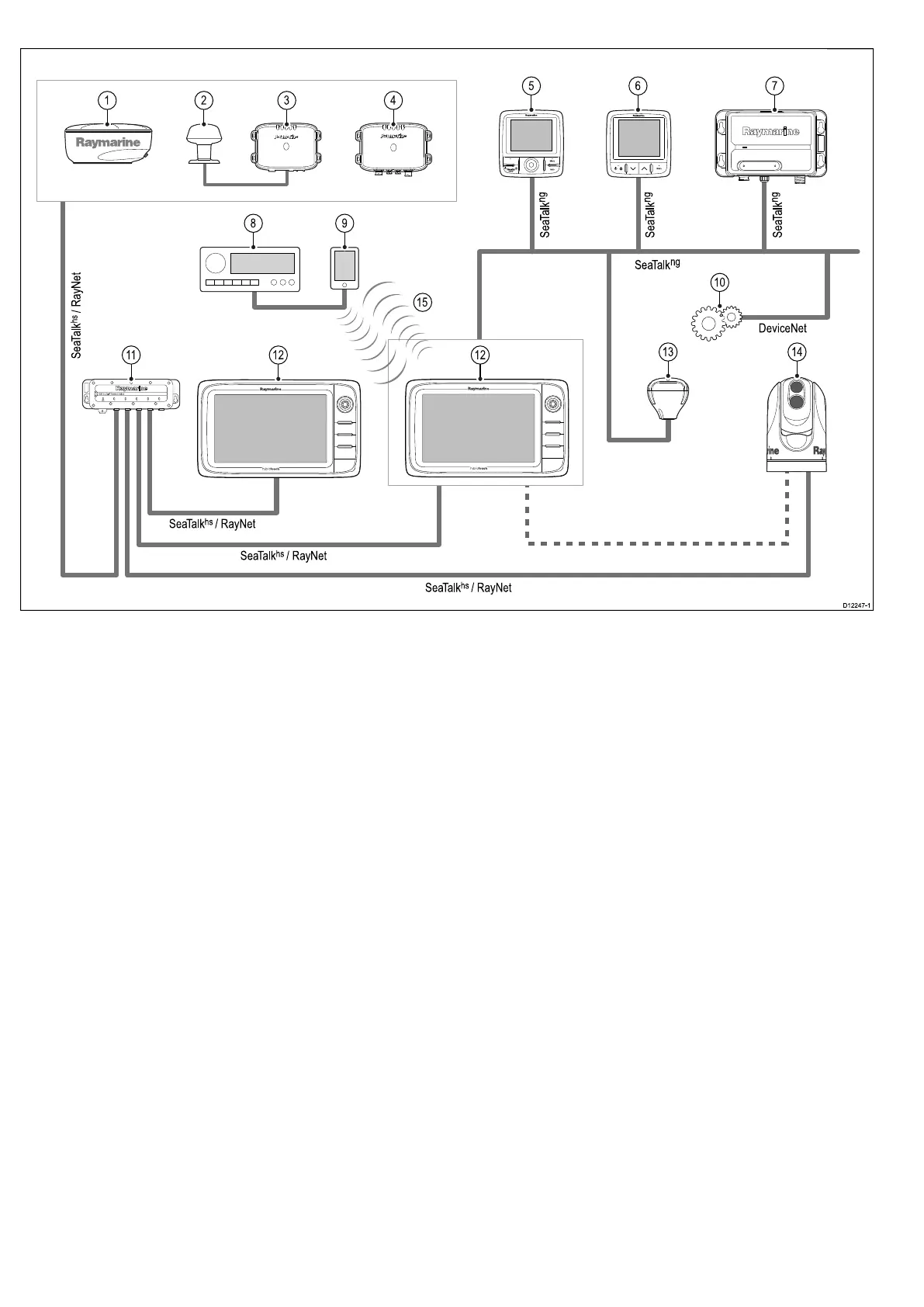

Example:Expandedsystem

D12 2 47-1

SeaTalk

/ RayNet

SeaTalk

/ RayNet

SeaTalk

/ RayNet

SeaTalk

/ RayNet

DeviceNet

SeaTalk

11 12 12

2 3 4

1.Digitalradomescanner.

2.Weathersensor.

3.Siriusweatherreceiver.

4.DigitalSounderModule(DSM).

5.Pilotcontroller.

6.Instrument.

7.AISreceiver/transceiver.

8.Audiosystem.

9.Smartphone.

10.DeviceNetspur(forNMEA2000devices).

11.Raymarinenetworkswitch.

12.Multifunctiondisplay.

13.GPSreceiver.

14.Thermalcamera.

15.Wirelessconnection.

26e7/e7D/e95/e97/e125/e127/c95/c97/c125/c127
