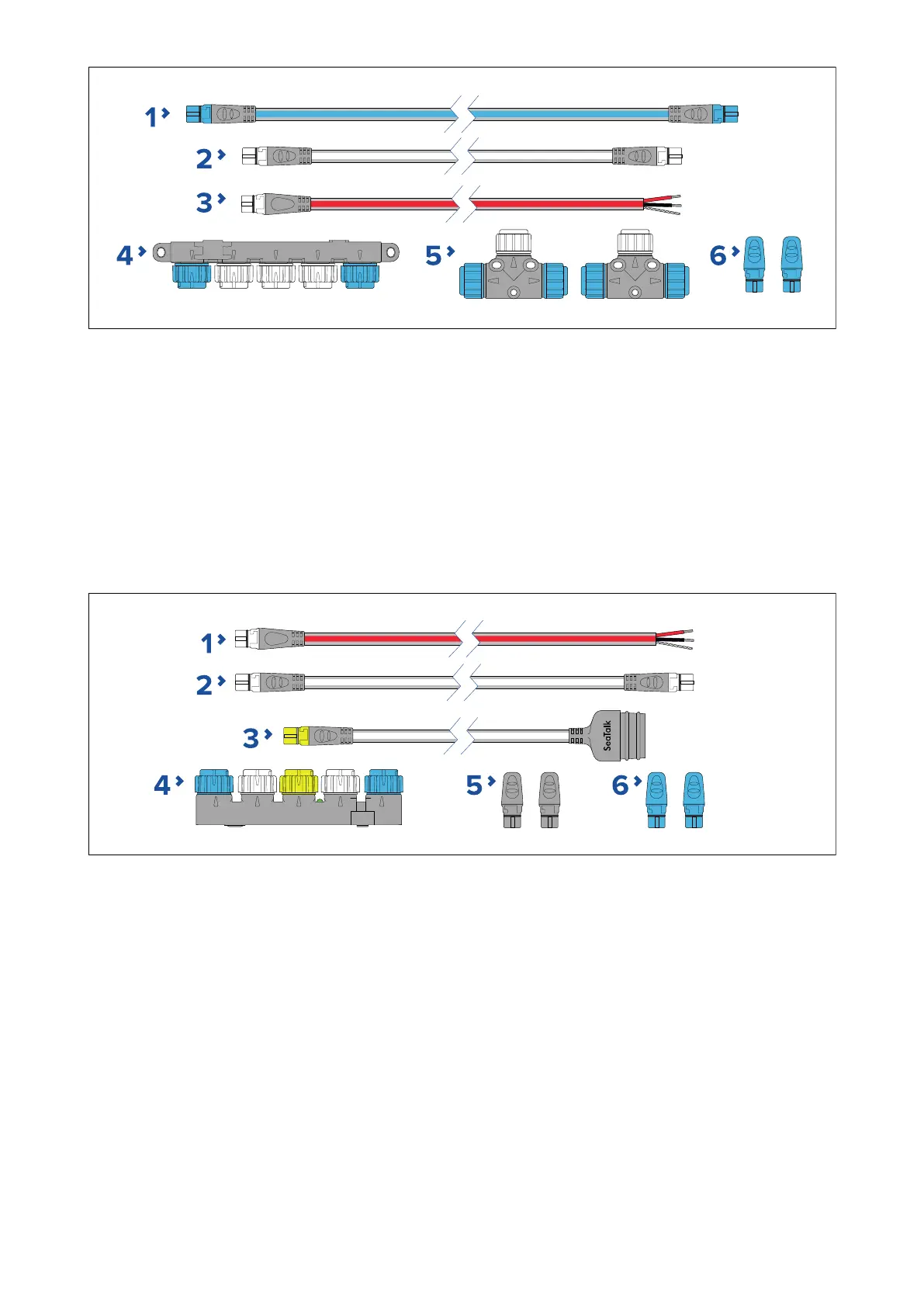

1.1x5m(16.4ft)Backbonecable(A06036).Usedtocreateandextendthe SeaTalkngbackbone.
2.1x1m(3.3ft)Spurcable(A06040).UsedtoconnectdevicetotheSeaTalkngbackbone.
3.1x2m(6.6ft)Powercable(A06049).Usedtoprovide12VdcpowertotheSea Talkngbackbone.
4.1x5-Wayconnector(A06064).Eachconnectorblockallowsconnectionofupto3Sea Talkng
devices.Multipleconnectorblockscanbe‘daisychained’together.
5.2xT-pieces(A06028).EachT-pieceallowsconnectionofoneSeaTalkngdevice.Multiple
T-piecescanbe‘daisychained’together.
6.2xBackboneterminators(A06031).T erminatorsmustbefittetobothendsoftheSeaTalkng
backbone.
SeaTalktoSeaTalkngconverterkit(E22158)consistsof:
1.1x2m(6.6ft)Powercable (A06049).Usedtoprovide12VdcpowertotheSea Talkngbackbone.
2.1x1m(3.3ft)Spurcable(A06039).UsedtoconnectadevicetotheSea Talkngbackbone.
3.1x0.4m(1.3ft)SeaTalk(3pin)toSea Talkngadaptercable(A22164).UsedtoconnectSeaTalk
devicestotheSeaTalkngbackboneviatheSeaTalktoSeaTalkngconverter.
4.1xSeaTalktoSea Talkngconverter(E22158).EachconverterallowsconnectionofoneSea Talk
deviceandupto2Sea Talkngdevices.
5.2xSpurblankingplugs(A06032).Usedtocoverunusedspurconnectionsin5–wayblocks,
T-piececonnectorsandSeaTalktoSeaTalkngconverter.
6.2xBackboneterminators(A06031).T erminatorsmustbefittetobothendsoftheSeaTalkng
backbone.
NMEA0183VHF2wiretoSeaTalkngconverterkit(E70196)consistsof:
