Important:

ユニットは、LEDの「矢印」が船舶の縦軸（中心線）と平行になるように取り付けられ、船首を向いていなけれ

ばならない。

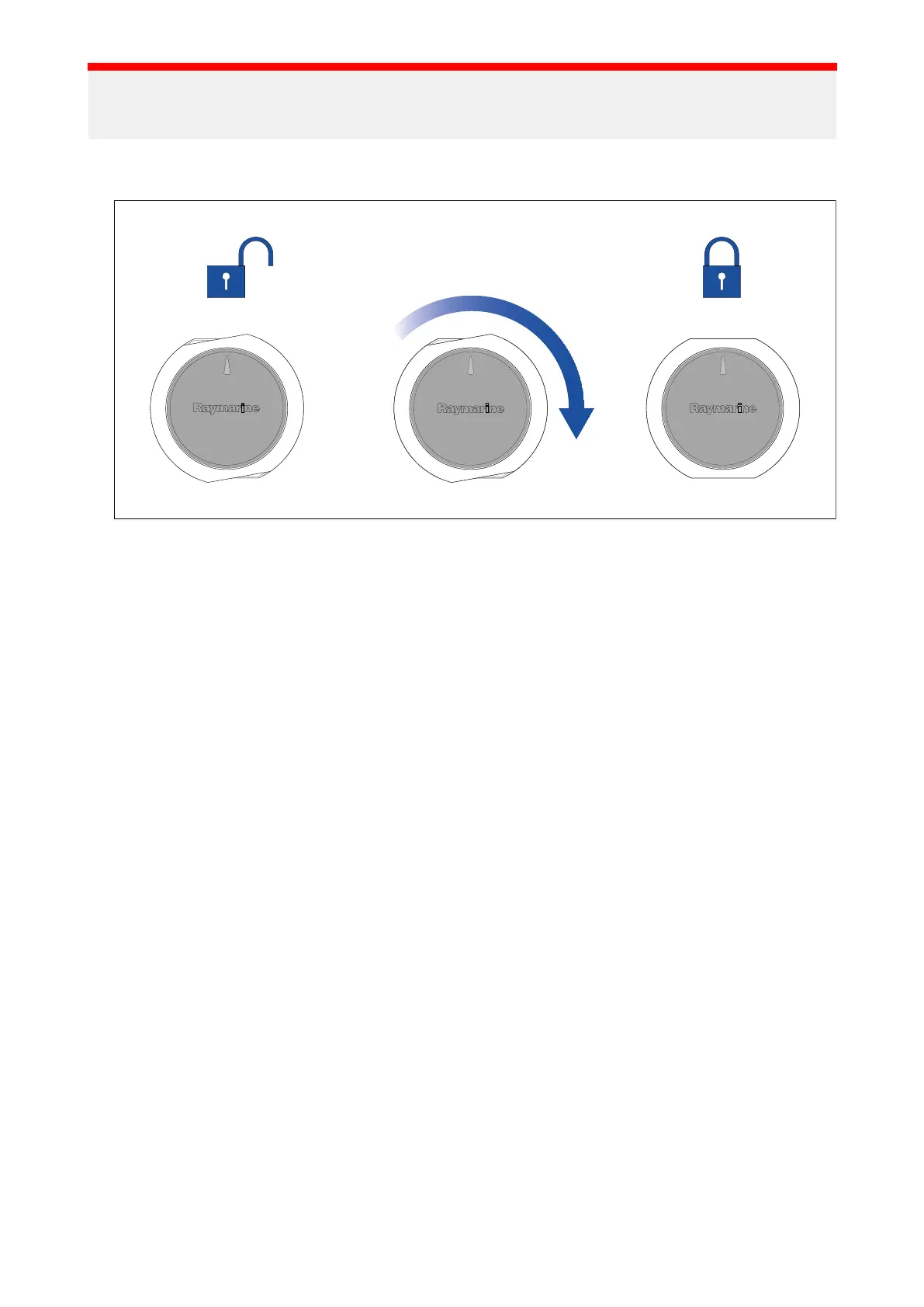

7. 取付トリムをユニットの上に少しオフセットして置き、取付トリムを時計回りに回して所定の位置にロックします。

Installation

47
