5.Placethelargesealingringintothegrooveonthe
uppersideoftheMountingtray.
6.PulltheSeaT alkng®cablethroughtheRiserand
Mountingtray.Pluginthecableconnectoronthe
undersideoftheunitandsecurebyrotatingthe
lockingcollarclockwise2clicks.
7.SecuretheunittotheMountingtraybypositioning
theunitwiththeLEDfacingforwardandinserting
theunitintothegroovesintheMountingtray.
8.PlacetheMountingtrimovertheunitslightlyoffset,
andthentwisttheMountingtrimclockwiseuntilit
locksintoposition.
5.6Lockingandreleasingthe
unit

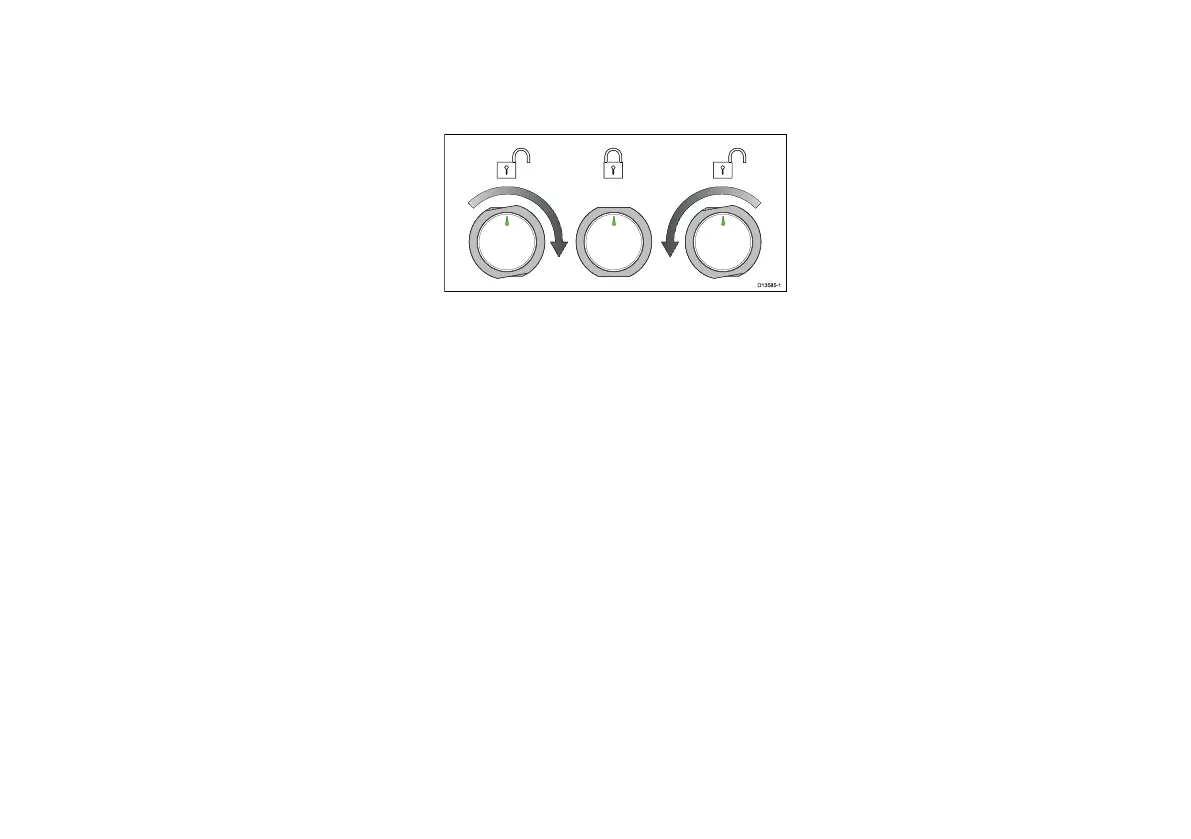

Followthestepsbelowtolockandreleasetheunitfrom
themountingadaptor.
1.T olocktheunit:PlacetheMountingtrimoverthe
unitslightlyoffset,andthentwisttheMountingtrim
clockwiseuntilitlocksintoposition.
2.T oreleasetheunit:Twistthetrimpiece
counter-clockwiseandthenliftawayfromtheunit.
