Thetransducersdifferinternally ,andcontaindifferentnumbersandtypesoftransmitandreceive
elements.Y ourinstallationshouldcompriseeitherasingleRV-400transducer,orasplit-pairof
RV-412(P/S)orRV-420(P/S)transducers.
Thehullgeometryofyourvesseldeterminesthemostappropriatetransducerstouse.Y oushould
fittransducerswhoseelementsareangledtomatchwithin±6°ofyourhull’sdeadriseangle,as
detailedbelow:
•RV-400RealVision™3Dstainlesssteel0°(fordeadrise0°to6°)thru-hullall-in-onetransducer
(Partnumber:A80615)
•RV-412PandRV-412SRealVision™3Dstainlesssteel12°(fordeadrise6°to18°)thru-hullsplit-pair
transducers(Systempackpartnumber:T70450)
–RV-412Pporttransducer(Partnumber:A80616)
–RV-412Sstarboardtransducer(Partnumber:A80617)
•RV-420PandRV-420SRealVision™3Dstainlesssteel20°(fordeadrise14°to26°)thru-hull
split-pairtransducer(Systempackpartnumber:T70451)
–RV-420Pporttransducer(Partnumber:A80618)
–RV-420Sstarboardtransducer(Partnumber:A80619)
2.3Productoverview

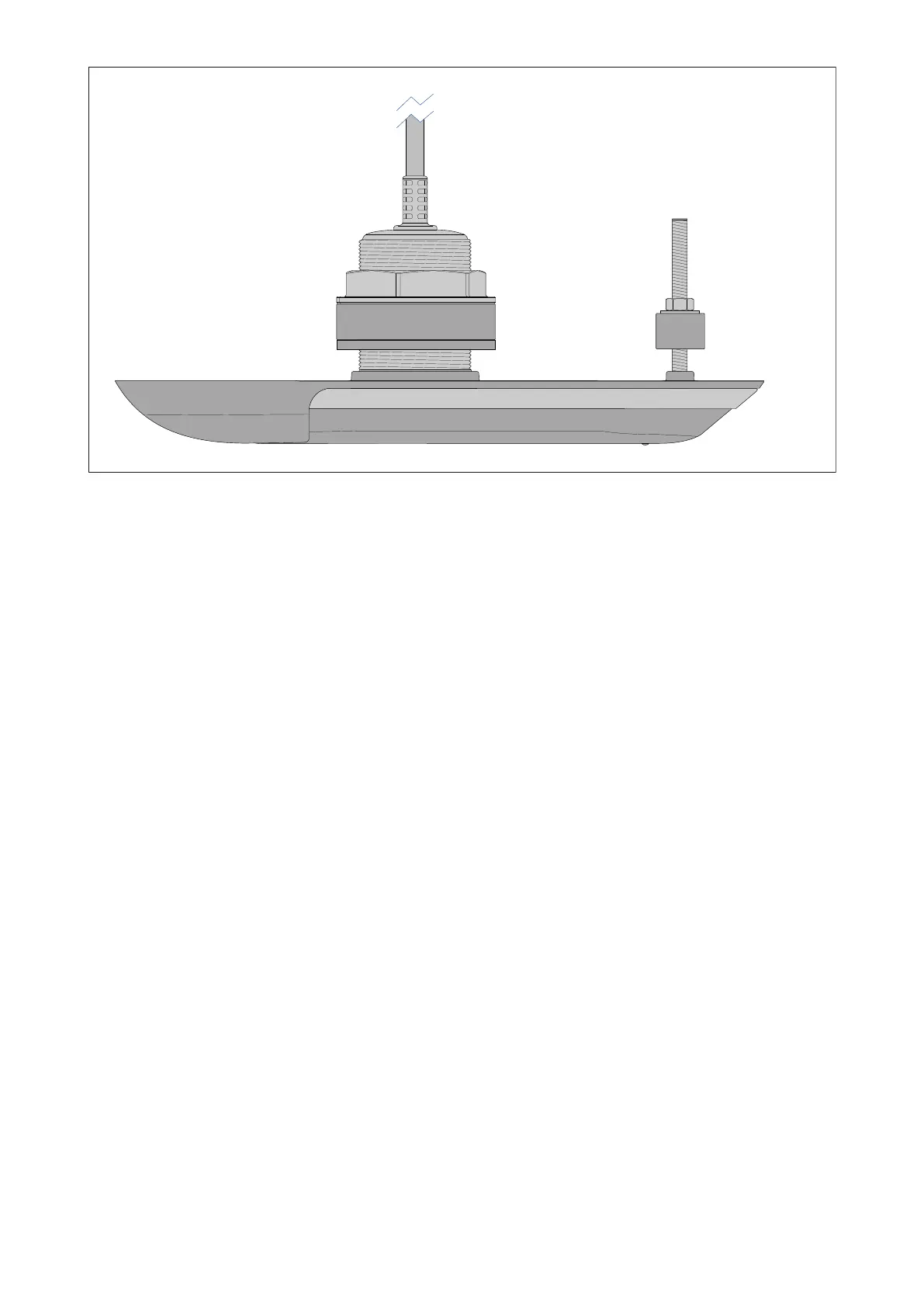

TheRV-4xxseriesofproductsarethru-hullmountedRealVision™3Dsonartransducers,capable
ofproducingrealistic3Drepresentationsoftheobjectsbelowyourvessel,tohelpyouidentify
underwaterstructuresandlocatefish.
•Stainlesssteelconstructiontransducersarerecommendedforinstallationonvesselswithsteelor
aluminiumhulls.
•Stainlesssteelconstructionprovidesrobustandreliableoperation.
•4sonarchannels:DownVision™,SideVision™,CHIRP,andRealVision™3Dsonartechnology
combinedinasingleunit.
•Powerfulandpracticalsonaroperatingranges:
–CHIRPsonar=0.6M(2ft)to274m(900ft)
–DownVision™=0.6M(2ft)to183m(600ft)
–SideVision™=0.6M(2ft)to91m(300ft)
–RealVision™3D=0.6M(2ft)to91m(300ft)
•Built-inAHRS(AttitudeandHeadingReferenceSensor)helpstostabilizethesonarimaging,
automaticallycompensatingforvesselmotion.
