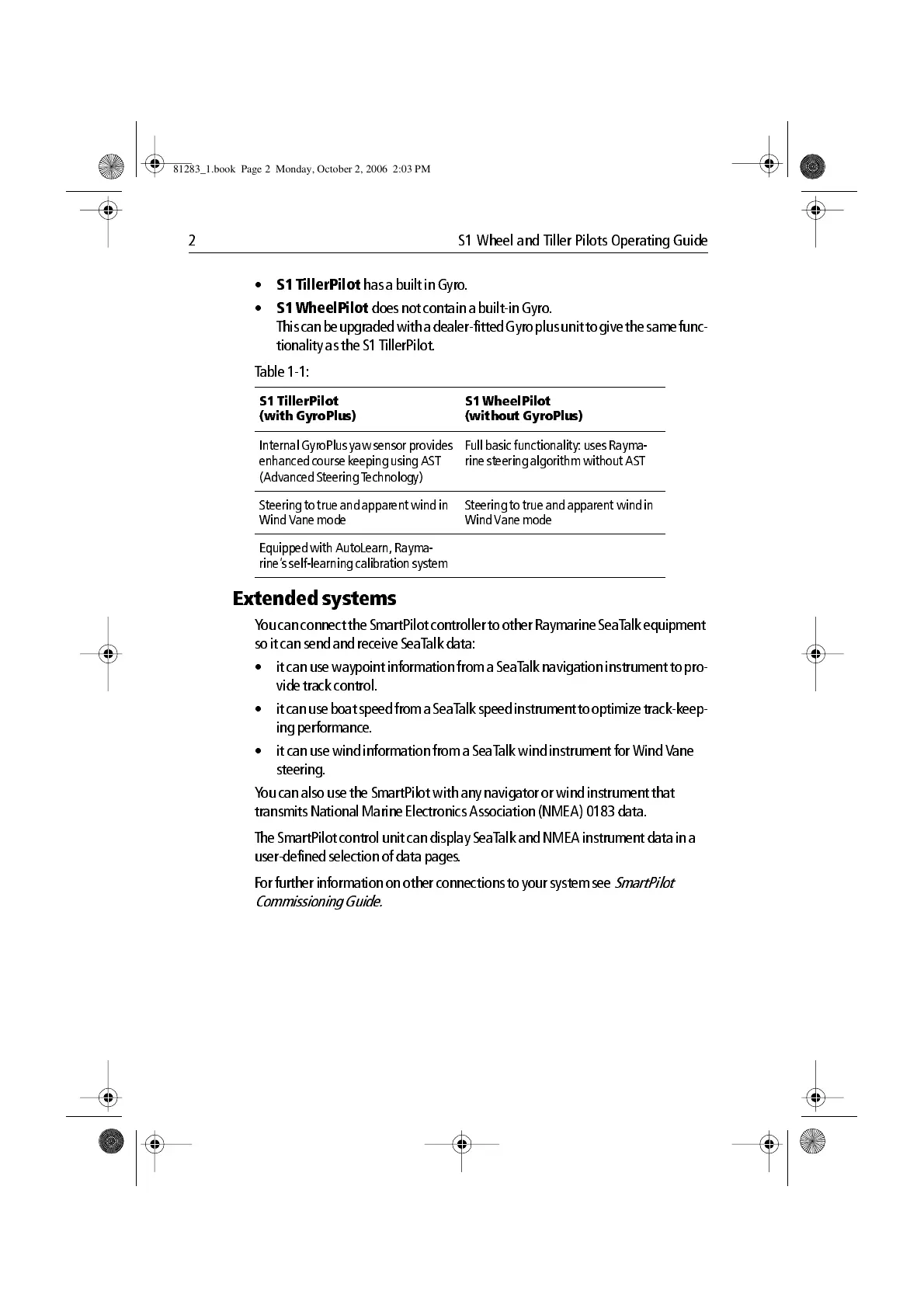

2 S1 Wheel and Tiller Pilots Operating Guide
• S1 T illerPilot has a buil t in Gyro.
• S1 WheelPilot does not contain a builtin Gyro.
This can be upgraded with a dealerfitted Gyro plus unit to give the same func
tional ity as the S1 TillerPilot.
:
Extended systems
Y ou can connect the SmartPilot controller to other Raymarine SeaTalk equipment
so it can send and receive SeaT alk data:
• it can u se waypoint information from a SeaT alk navigation instrument to pro
vide track cont rol.
• it can use boat speed from a SeaT alk speed instrument to optimize trackkeep
ing perfo rmance.
• it can use wind information from a SeaT alk wind instrument for Wind V ane
steering.
Y ou can also use the SmartPilot with an y navigator or wind ins trument that
transmi ts National Marine Electronics Association (NMEA) 0183 data.
T he SmartPilot contr ol unit can display SeaT alk and NMEA instrumen t data in a
userdefined selection of data pages .
F or further information on other conn ections to your syst em see SmartPilot
Commi ssioning Guide.
T able 11 :
S1 Tille rPilot
(with Gyro Plus)
S1 WheelPil ot
(without Gyro Plus)
Internal Gyr oPlus yaw sensor prov ides
enhanced course k eeping using AST
(Advanced Steering T echnology)
Full b asic functio nality: u ses Raym a
rine steering algor ithm without AST
Steering to true and appar ent wind in
Wind Vane mode
Steering to true an d appar ent wind in
Wind Vane mode
Equipped with Auto Learn, Rayma
rine’ s s elflearning calib ration system
81283_1.book Page 2 Monday, October 2, 2006 2:03 PM

Raymarine SmartPilot Series Specifications

General

Type	Autopilot System
Series	SmartPilot
Manufacturer	Raymarine
Compatibility	Raymarine
Power Supply	12V DC
Rudder Feedback	Yes
Course Computer	Integrated
Interface	NMEA 0183
