Raymarine SmartPilot Series User Manual

Chapter 1: Basic operation 5

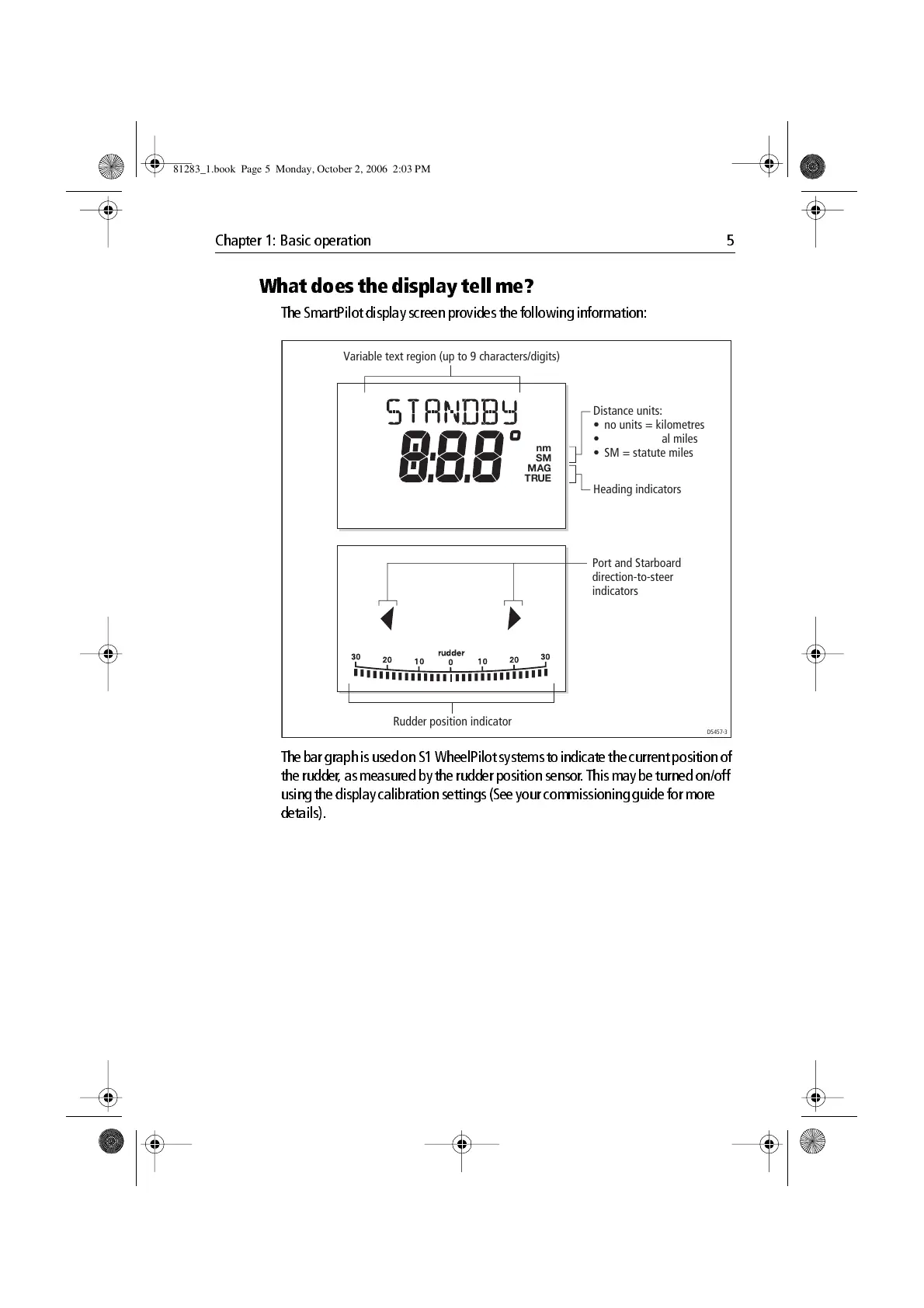

What does the display tell me?
T he SmartPilot disp lay screen provides the followin g information:
The bar graph is used on S1 WheelPilot systems to indicate the current position of
the rudd er , as measured by the rudder position sensor. This may be turned on/off
using the display calibra tion settings (See your com missioning gui de for more
details).
Rudder position indicator
Port and Starboard
direction-to-steer
indicators
Distance units:
• no units = kilometres
• nm = nautical miles
• SM = statute miles
Heading indicators
Variable text region (up to 9 characters/digits)
D5457-3
n
m
S
M
MAG
TRUE
81283_1.book Page 5 Monday, October 2, 2006 2:03 PM

Raymarine SmartPilot Series Specifications

General

Type	Autopilot System
Series	SmartPilot
Manufacturer	Raymarine
Compatibility	Raymarine
Power Supply	12V DC
Rudder Feedback	Yes
Course Computer	Integrated
Interface	NMEA 0183
