Raymarine ST1000+ User Manual

Chapter 5: Commissioning the Tiller Pilot 51

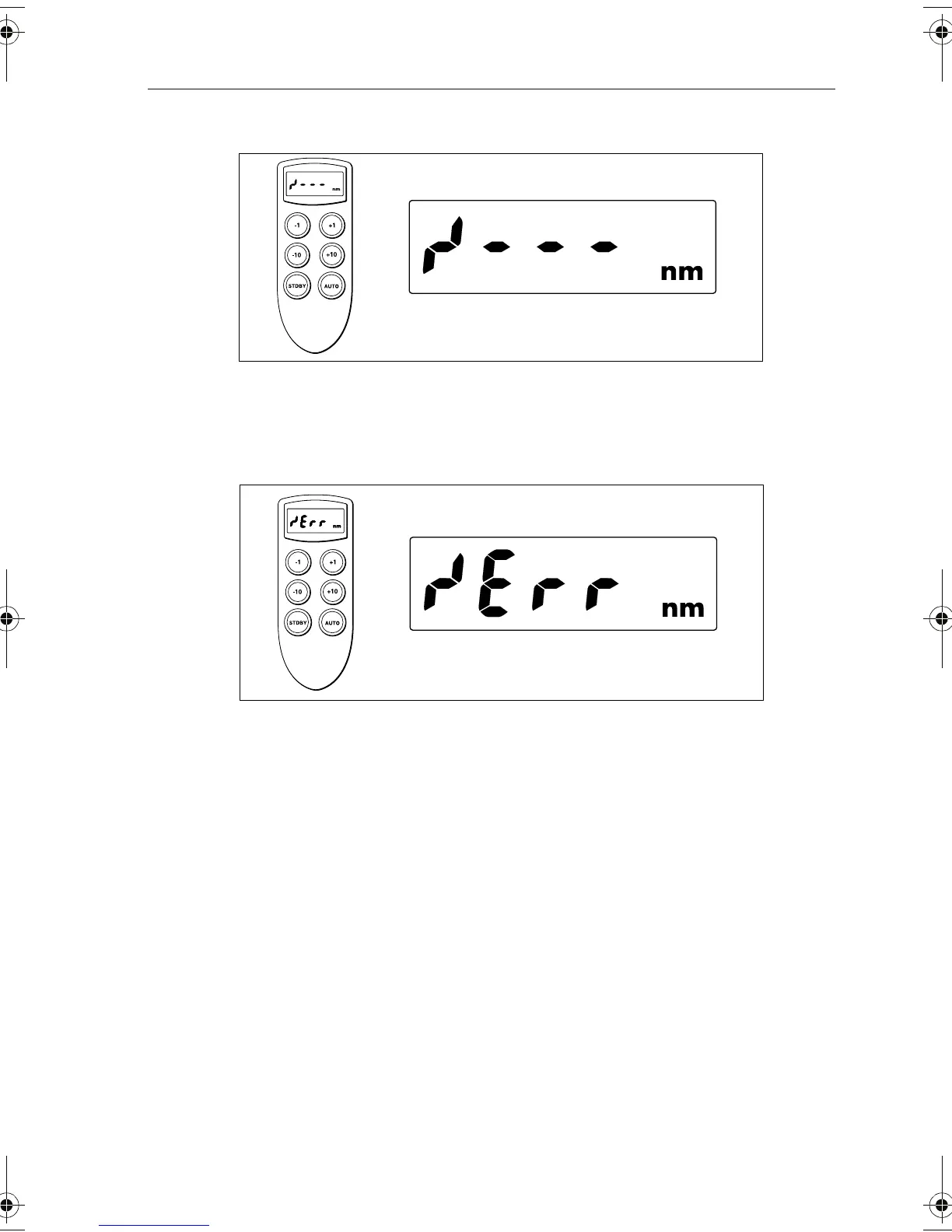

Track data not received
This error message indicates that data has not been received. The most likely
reason is a cabling error – either open circuit, short circuit or wires reversed.
Track data error
This error message indicates that the navigator has lost its fix. Refer to the
navigator handbook for further action.
Checking the wind instrument interface
If you have connected the tiller pilot to a wind instrument, check the data link as
follows:
1. Press
standby and auto together.
2. The tiller pilot should display a ‘W’ followed by the locked heading.
D3268-2
D3269-2
81130_5.book Page 51 Wednesday, June 15, 2005 3:48 PM

Raymarine ST1000+ Specifications

General

Type	Tiller Pilot
Power Supply	12 V DC
Display Type	LCD
Interface	SeaTalk
Maximum Boat Displacement	3000 kg
Thrust	57 kg
Operating Temperature Range	-10°C to +55°C (14°F to 131°F)
Max Boat Length	Up to 30ft
Control Interface	Push Button
Voltage Range	10-16V DC
