D4436-1
Machine hole
90mm (3.54in)
diameter
Drill 5mm (3/16in) diameter
Drill 5mm (3/16in) diameter
Shaded areas to be removed
TOP

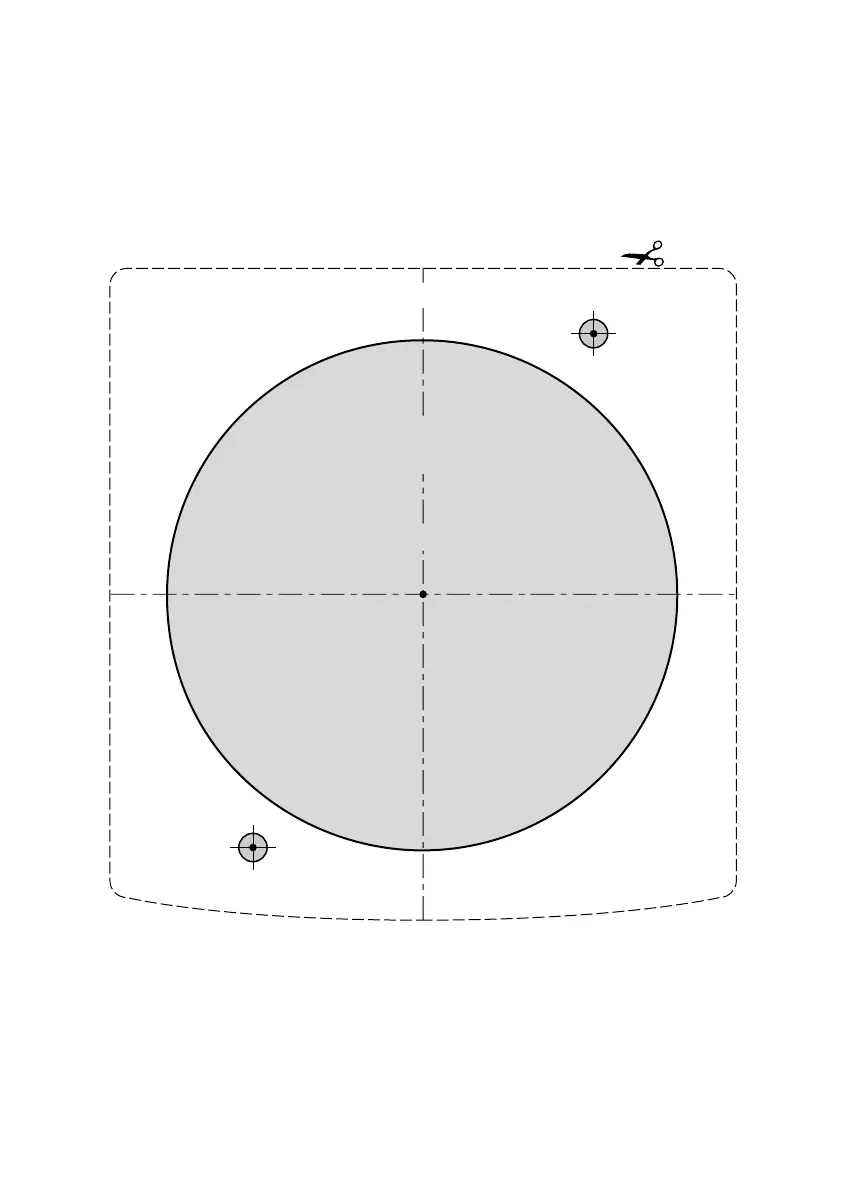

ST60 Surface Mount Template
040_2tem.p65 09/08/99, 09:3243
