12 ST6000 Plus Autopilot Control Unit Owner,s Handbook
Up to 7 Data Pages are available using the disp key. The number of
pages, and the information displayed on each page, depends on the the
selections made in User Setup (see section 5.1).

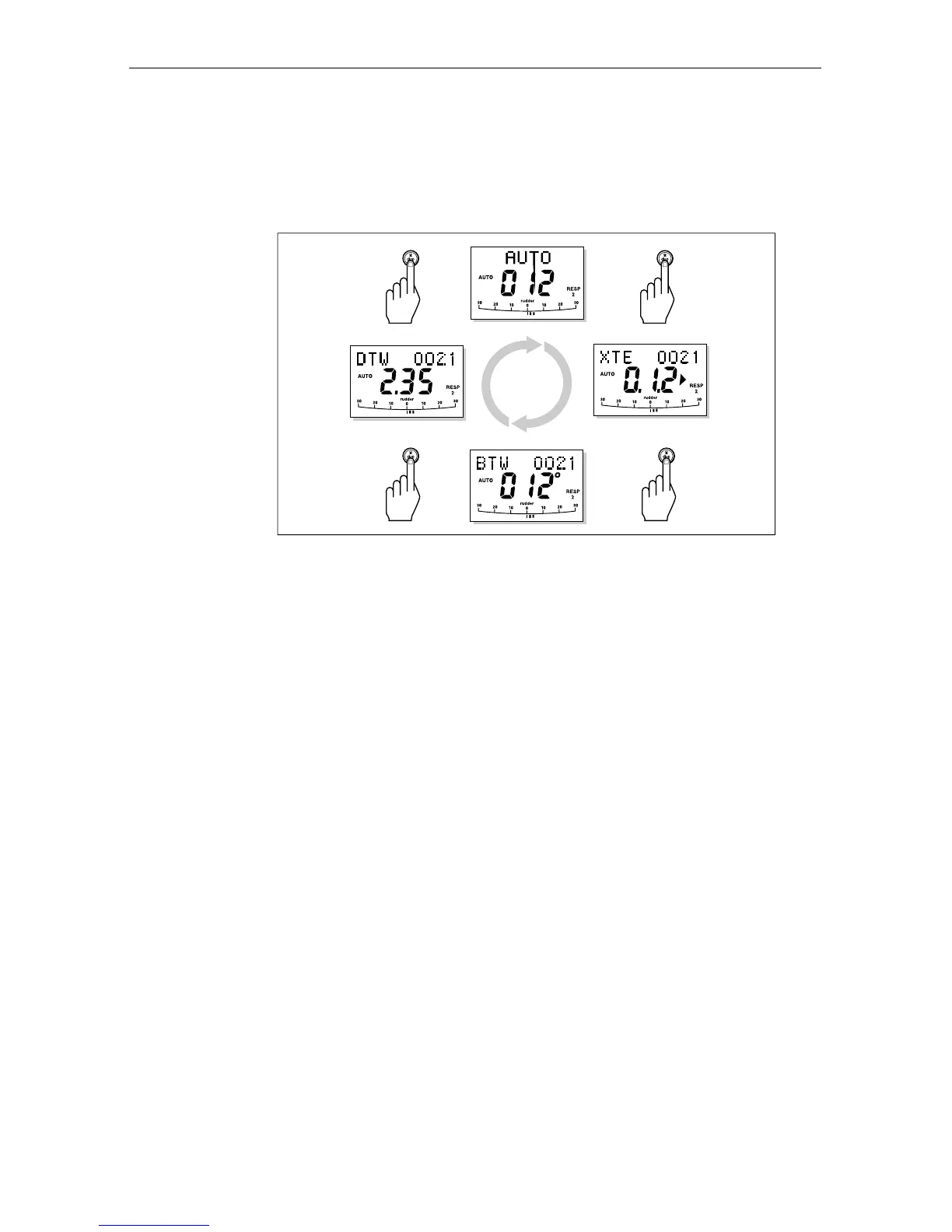

The following illustration shows the default settings for the Data Pages.
D3581-1
If the required data for a page is not available, dashes are displayed
instead of a value.
Most displays are repeated data, and cannot be adjusted. The
exceptions are the Response and Rudder Gain pages (if selected for
display), which can be adjusted using the +1 and -1 keys.
The current autopilot mode is shown at the left of the display, and
the autopilot bar graph remains in use.
The direction-to-steer arrows relate to the Data Page information.
